SG5032VAN低抖动振荡器是无线?？橛τ镁д?/h1>
来源：http://www.hneyq.com 作者：亿金电子 2022年09月13差分晶振的输出是什么意思呢?差分晶振输出是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统.这种方式可输送高频,并具有抗噪音强,低抖动等特征.常见的差分输出为LVDS、HCSL、LV-PECL.下面所介绍到的是爱普生LVDS输出的差分晶振编码.

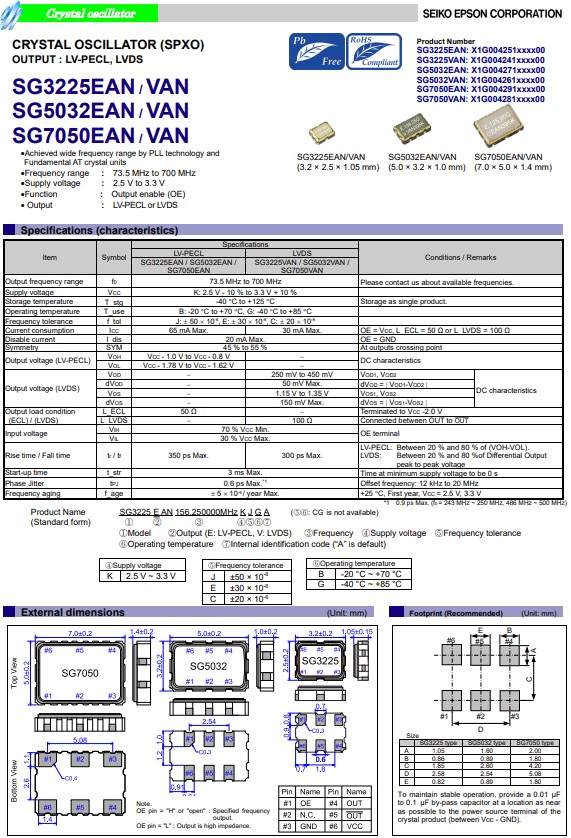

日本进口爱普生晶振SG5032VAN，是一款LVDS输出差分晶振，小体积晶振尺寸5.0x3.2mm，六脚贴片晶振，有源晶振，差分晶体振荡器，电源电压2.5V至3.3V，宽频率范围73.5MHz至700MHz，任意一频点，具有低电源电压,满足产品低消耗电流的特点，该产品具有超小型，轻薄型，低抖动，低功耗，低损耗，低耗能，低电源电压，低电平等特点，作为目前行业中高要求、高技术石英晶体振荡器，具有相位低、损耗低的特点。因此也被称之为"低抖动振荡器，低抖动石英晶振，低相位晶振,低损耗晶振”。
SG5032VAN低抖动振荡器是无线模块应用晶振,X1G004261012600,LVDS差分晶振
产品编码
有源晶振
频率
尺寸
输出波X1G004261000100 SG5032VAN 100.000000MHz 5.00x3.20x1.20mm LVDS X1G004261000200 SG5032VAN 125.000000MHz 5.00x3.20x1.20mm LVDS X1G004261000500 SG5032VAN 200.000000MHz 5.00x3.20x1.20mm LVDS X1G004261000600 SG5032VAN 156.250000MHz 5.00x3.20x1.20mm LVDS X1G004261001100 SG5032VAN 148.500000MHz 5.00x3.20x1.20mm LVDS X1G004261001300 SG5032VAN 150.000000MHz 5.00x3.20x1.20mm LVDS X1G004261001400 SG5032VAN 155.520000MHz 5.00x3.20x1.20mm LVDS X1G004261002000 SG5032VAN 125.000000MHz 5.00x3.20x1.20mm LVDS X1G004261002100 SG5032VAN 125.006250MHz 5.00x3.20x1.20mm LVDS X1G004261002300 SG5032VAN 100.000000MHz 5.00x3.20x1.20mm LVDS X1G004261002400 SG5032VAN 200.000000MHz 5.00x3.20x1.20mm LVDS晶振 X1G004261002500 SG5032VAN 400.000000MHz 5.00x3.20x1.20mm LVDS X1G004261002900 SG5032VAN 148.500000MHz 5.00x3.20x1.20mm LVDS X1G004261003100 SG5032VAN 150.000000MHz 5.00x3.20x1.20mm LVDS X1G004261003300 SG5032VAN 156.250000MHz 5.00x3.20x1.20mm LVDS X1G004261003400 SG5032VAN 312.500000MHz 5.00x3.20x1.20mm LVDS X1G004261004300 SG5032VAN 200.000000MHz 5.00x3.20x1.20mm LVDS X1G004261006200 SG5032VAN 200.000000MHz 5.00x3.20x1.20mm LVDS
SG5032VAN低抖动振荡器是无线?？橛τ镁д?X1G004261012600,LVDS差分晶振X1G004261006700 SG5032VAN 148.500000MHz 5.00x3.20x1.20mm LVDS X1G004261006900 SG5032VAN 150.000000MHz 5.00x3.20x1.20mm LVDS X1G004261007100 SG5032VAN 156.250000MHz 5.00x3.20x1.20mm LVDS X1G004261010200 SG5032VAN 250.000000MHz 5.00x3.20x1.20mm LVDS X1G004261010700 SG5032VAN 153.600000MHz 5.00x3.20x1.20mm LVDS X1G004261011400 SG5032VAN 78.125000MHz 5.00x3.20x1.20mm LVDS X1G004261011900 SG5032VAN 120.000000MHz 5.00x3.20x1.20mm LVDS X1G004261012100 SG5032VAN 644.531250MHz 5.00x3.20x1.20mm LVDS X1G004261012500 SG5032VAN 148.351600MHz 5.00x3.20x1.20mm LVDS X1G004261012600 SG5032VAN 133.333300MHz 5.00x3.20x1.20mm LVDS X1G004261012800 SG5032VAN 250.000000MHz 5.00x3.20x1.20mm LVDS X1G004261012900 SG5032VAN 135.000000MHz 5.00x3.20x1.20mm LVDS X1G004261013100 SG5032VAN 322.265625MHz 5.00x3.20x1.20mm LVDS X1G004261013300 SG5032VAN 230.000000MHz 5.00x3.20x1.20mm LVDS X1G004261013500 SG5032VAN 148.351600MHz 5.00x3.20x1.20mm LVDS X1G004261013600 SG5032VAN 644.531250MHz 5.00x3.20x1.20mm LVDS X1G004261013800 SG5032VAN 148.351600MHz 5.00x3.20x1.20mm LVDS X1G004261014100 SG5032VAN 161.132812MHz 5.00x3.20x1.20mm LVDS X1G004261014300 SG5032VAN 625.000000MHz 5.00x3.20x1.20mm LVDS
LVDS（Low Voltage Differential Signaling)它是一种低摆幅的差分信号技术，它使得信号能够在差PCB线对或平衡电缆上以几百的Mbps的速率传输，其低压幅以及低电流驱动输出实现了低噪声以及低功耗。LVDS（Low Voltage Differential Signaling）是一种小振幅差分信号技术，LVDS晶振信号传输一般由三部分组成：差分信号发送器，差分信号互联器，差分信号接收器。
