SG2016CAN有源晶振X1G004801005800非常适合5G前传光模块应用

来源：http://www.hneyq.com 作者：亿金电子 2022年09月29

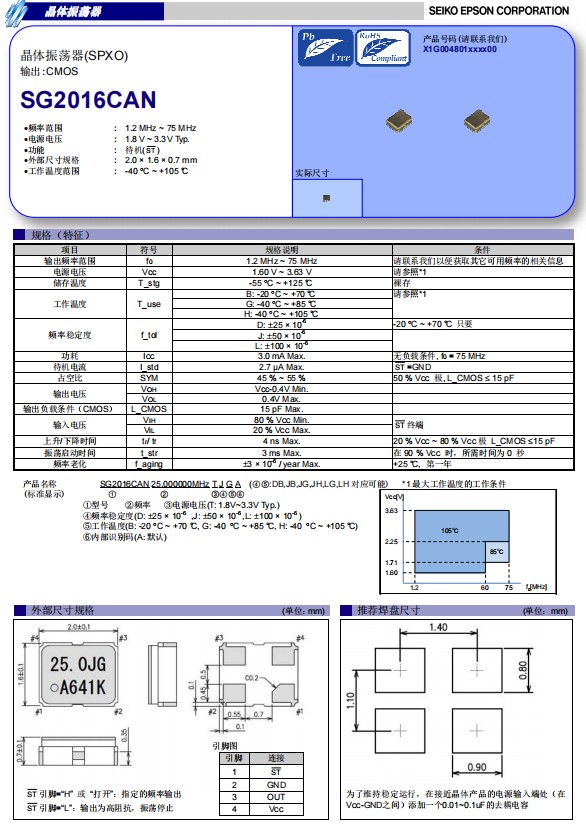

日本爱普生晶振SG2016CAN，是一款小体积晶振尺寸2.0x1.6mm石英晶体振荡器(SPXO)，支持CMOS输出电平，四脚贴片晶振，有源晶振，1.8V至3.3V的宽工作电压和宽工作温度范围从-40℃到+85℃（+105℃）。 SG2016CAN有源晶振还具有超低功耗的优点。响应时间仅为3ms，上升/下降延迟时间为4ns。在工作频率为20MHz，无负载情况时，工作电流可达1.8mA，待机状态下的电流可达2.7μA。所以，在5G前传光模块方案中，如果需要MCU主频更稳定，外置高温、稳定性好的5G晶振时，EPSON公司推出的SG2016CAN晶振是较理想的选择。常用有源晶振型号SG2016CAN编码X1G004801005800，频率20.000MHz，工作温度-40℃至85℃.具有超小型，轻薄型，低抖动，低功耗，低损耗，低耗能，低电流消耗等特点，非常适合5G模块，物联网、可穿戴设备、医疗设备、工业自动化等各种应用。
SG2016CAN有源晶振X1G004801005800非常适合5G前传光模块应用,X1G004801006800,低功耗晶振

产品编码	型号	频率	爱普生晶振	输出波	电源电压	工作温度
X1G004801000200	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801000300	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801000700	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001200	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001300	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001400	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002000	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801002100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002400	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801002600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801002700	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002800	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002900	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801003000	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801003100	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003500	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003600	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003900	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004000	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004400	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801004500	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801004600	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004900	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005000	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005100	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005200	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005300	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C

X1G004801005400	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801005500	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005600	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005700	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801005900	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801006000	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006200	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006300	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006400	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006500	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006700	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006800	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801006900	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801007000	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801007100	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS	1.710 to 3.630V	-20 to 70°C
X1G004801007200	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS	1.710 to 3.630V	-40 to 85°C
X1G004801007300	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS	2.250 to 3.630V	-40 to 105°C
X1G004801007600	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801007700	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C

SG2016CAN有源晶振X1G004801005800非常适合5G前传光模块应用,X1G004801006800,低功耗晶振

晶振的功能是为系统提供基本的时钟信号，通常一个系统共用一个晶振，便于各部分保持同步。有些通讯系统的基频和射频使用不同的晶振，不同的规格封装延伸很多的频点等不同的参数，而通过电子调整频率的方法保持同步，在我们日常生活中也离不开晶振。
