SG-210SEBA车载晶振X1G004611A00100是汽车电子应用中的理想选择

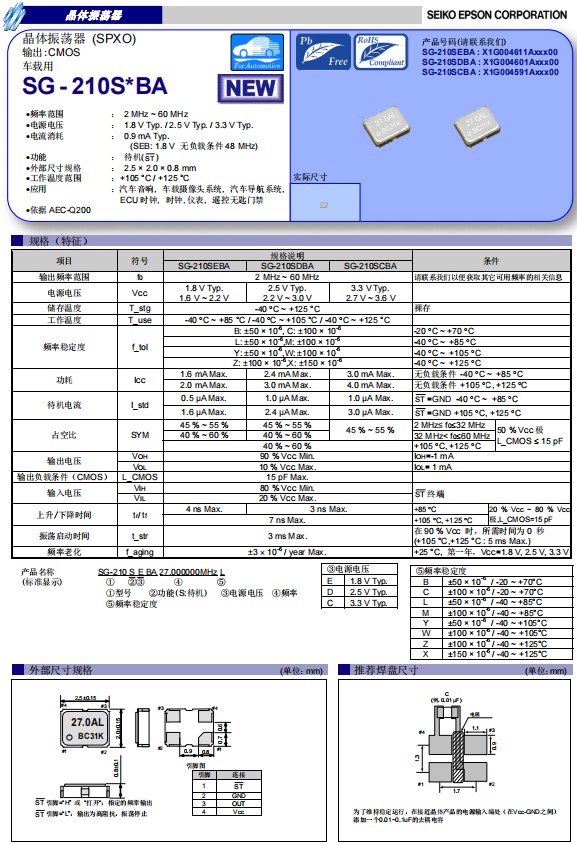

来源：http://www.hneyq.com 作者：亿金电子 2022年09月28爱普生晶振推出车载电子专用晶振SG-210SEBA，是一款CMOS输出石英晶体振荡器(SPXO)，小体积晶振尺寸2.5x2.0mm四脚贴片晶振，有源晶振，电源电压1.8V至3.3V，频率范围2MHz至60MHz，宽工作温度可达到-40℃至+85℃/+105℃/+125℃，该产品具有超小型，轻薄型，低抖动，低功耗，耐高温，耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，符合AEC-Q200标准。SG-210SEBA有源晶振非常适用于汽车电子应用，汽车音响控制器，车载摄像头系统，汽车导航系统，时钟，仪表等。是汽车电子应用中的理想选择。
SG-210SEBA车载晶振X1G004611A00100是汽车电子应用中的理想选择,X1G004611A03400,耐高温晶振
产品编码
型号
频率
贴片晶振
输出波
电源电压
工作温度X1G004611A00100 SG-210SEBA 24.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A00300 SG-210SEBA 27.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 125°C X1G004611A00400 SG-210SEBA 20.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 125°C X1G004611A00500 SG-210SEBA 27.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A01200 SG-210SEBA 24.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A01300 SG-210SEBA 33.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 85°C X1G004611A01400 SG-210SEBA 16.666600MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 85°C X1G004611A01600 SG-210SEBA 14.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A01700 SG-210SEBA 37.125000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A01900 SG-210SEBA 13.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A02000 SG-210SEBA 10.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 85°C X1G004611A02100 SG-210SEBA 48.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A02200 SG-210SEBA 16.660000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 85°C X1G004611A02400 SG-210SEBA 14.745600MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 85°C X1G004611A02500 SG-210SEBA 16.640000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 85°C X1G004611A02600 SG-210SEBA 24.576000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 85°C X1G004611A02700 SG-210SEBA 12.288000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C .JPG)
SG-210SEBA车载晶振X1G004611A00100是汽车电子应用中的理想选择,X1G004611A03400,耐高温晶振X1G004611A02800 SG-210SEBA 25.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A03000 SG-210SEBA 48.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 85°C X1G004611A03100 SG-210SEBA 25.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 125°C X1G004611A03300 SG-210SEBA 24.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 125°C X1G004611A03400 SG-210SEBA 20.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A03500 SG-210SEBA 41.250000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A03600 SG-210SEBA 16.640000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A03700 SG-210SEBA 16.510000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A03800 SG-210SEBA 9.600000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A04100 SG-210SEBA 16.666600MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A04200 SG-210SEBA 33.300000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A04300 SG-210SEBA 25.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 85°C X1G004611A04400 SG-210SEBA 33.000000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C X1G004611A04500 SG-210SEBA 49.500000MHz 2.50x2.00x0.90mm CMOS 1.600 to 2.200V -40 to 105°C
针对各种车载电子设备对石英晶振在高温、抗振动等方面的更高要求，爱普生可以提供全面的符合AEC-Q200/100技术标准的汽车用车规晶振。
汽车的应用场景包括导航、远程呼叫、紧急救援、防盗跟踪、道路救援、电话、资讯娱乐、下载应用，自动驾驶等等，为了实现人与汽车系统自由的交互，并提供实时的信息互动、支付、交通、天气等功能，汽车对车规级晶振的依赖只会越来越强。
