首页欧美晶振拉隆晶振欧美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振

欧美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振

频率：19.2MHz

尺寸：2.0×1.6mm

应　用： 欧美拉隆晶振,R2016无源晶振,R2016-19.200-10-1010-TR晶振,石英晶体谐振器,SMD晶振,2016mm晶振,超小型晶振,频率19.2MHz,负载10pF,频率稳定性10ppm,工作温度-10~60°C,高精度晶振,无铅环保晶振,6G路由器晶振,智能手机晶...

欧美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振,欧美拉隆晶振,R2016无源晶振,R2016-19.200-10-1010-TR晶振,石英晶体谐振器,SMD晶振,2016mm晶振,超小型晶振,频率19.2MHz,负载10pF,频率稳定性10ppm,工作温度-10~60°C,高精度晶振,无铅环保晶振,6G路由器晶振,智能手机晶振,可穿戴设备晶振,笔记本电脑晶振.
欧美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振特点：
•紧凑的设计
•精度高
•适合高密度表面安装

欧美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振规格表

参数数值

标准频率 19.2MHz

振荡模式
AT CUT, Fundamental

频率容差 10ppm

频率稳定性 10ppm

工作温度 −10~+60°C

储存温度 −40~+85C

老化 ±5 ppm

负载 10pF

并联电容 5.0 pF Max

激励功率
100 µW MAX

等效串联电阻 180 OHMS MAX

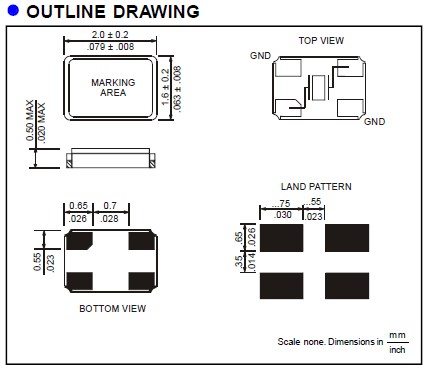

欧美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振尺寸图

Raltron原厂编码型号频率尺寸频率偏差频率稳定度负载工作温度

R2016-16.000-12-1020-TR R2016 16.000MHz 2.0 x 1.6mm ± 10 ppm ± 20 ppm 12 pF -10°C~+60°C

R2016-16.000-18-3030-EXT-TR R2016 16.000MHz 2.0 x 1.6mm ± 30 ppm ± 30 ppm 18 pF -40°C~+85°C

R2016-16.000-8-1010-TR-NS1 R2016 16.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 8 pF -10°C~+70°C

R2016-16.000-9-1010-TR-NS1 R2016 16.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 9 pF -20°C~+75°C

R2016-19.200-10-1010-TR R2016 19.200MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 10 pF -10°C~+60°C

R2016-20.000-10-3030-EXT-TR R2016 20.000MHz 2.0 x 1.6mm ± 30 ppm ± 30 ppm 10 pF -40°C~+85°C

R2016-24.000-10-1010-TR-NS1 R2016 24.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 10 pF -10°C~+60°C

R2016-24.000-12-1010-TR-NS1 R2016 24.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 12 pF -20°C~+75°C

R2016-24.000-18-3030-EXT-TR R2016 24.000MHz 2.0 x 1.6mm ± 30 ppm ± 30 ppm 18 pF -40°C~+85°C

R2016-24.000-6-1015-TR-NS1 R2016 24.000MHz 2.0 x 1.6mm ± 10 ppm ± 15 ppm 6 pF -30°C~+85°C

R2016-24.000-7-1015-TR-NS1 R2016 24.000MHz 2.0 x 1.6mm ± 10 ppm ± 15 ppm 7 pF -30°C~+85°C

R2016-24.000-8-1010-TR-NS1 R2016 24.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 8 pF -10°C~+70°C

R2016-24.000-9-1010-EXT-TR R2016 24.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 9 pF -40°C~+85°C

R2016-25.000-12-F-3030-EXT-TR R2016 25.000MHz 2.0 x 1.6mm ± 30 ppm ± 30 ppm 12 pF -40°C~+85°C

R2016-25.000-16-F-2525-EXT-TR R2016 25.000MHz 2.0 x 1.6mm ± 25 ppm ± 25 ppm 16 pF -40°C~+85°C

R2016-25.000-18-F-3030-TR-NS1 R2016 25.000MHz 2.0 x 1.6mm ± 30 ppm ± 30 ppm 18 pF -20°C~+70°C

R2016-25.000-20-F-1515-EXT-TR R2016 25.000MHz 2.0 x 1.6mm ± 15 ppm ± 15 ppm 20 pF -40°C~+85°C

R2016-26.000-10-F-1010-TR R2016 26.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 10 pF -10°C~+60°C

R2016-26.000-6-F-1010-TR R2016 26.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 6 pF -10°C~+60°C

R2016-26.000-8-F-1010-TR-NS1 R2016 26.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 8 pF -20°C~+70°C

R2016-26.000-9-F-1010-TR-NS5 R2016 26.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 9 pF -20°C~+85°C

R2016-27.000-10-F-2020-EXT-TR R2016 27.000MHz 2.0 x 1.6mm ± 20 ppm ± 20 ppm 10 pF -40°C~+85°C

R2016-27.000-8-F-1010-EXT-TR R2016 27.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 8 pF -40°C~+85°C

R2016-27.120-10-F-1010-TR-NS4 R2016 27.120MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 10 pF -20°C~+75°C

R2016-27.120-8-F-1010-EXT-TR R2016 27.120MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 8 pF -40°C~+85°C

R2016-30.000-8-F-1010-TR-NS1 R2016 30.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 8 pF -25°C~+70°C

R2016-32.000-10-F-1020-EXT-TR R2016 32.000MHz 2.0 x 1.6mm ± 10 ppm ± 20 ppm 10 pF -40°C~+85°C

R2016-32.000-12-F-1010-EXT-TR R2016 32.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 12 pF -40°C~+85°C

R2016-32.000-16-F-1010-TR R2016 32.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 16 pF -10°C~+60°C

R2016-32.000-8-F-1010-EXT-TR R2016 32.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 8 pF -40°C~+85°C

R2016-32.000-9-F-1025-EXT-TR R2016 32.000MHz 2.0 x 1.6mm ± 10 ppm ± 25 ppm 9 pF -40°C~+85°C

R2016-32.000-10-F-1010-TR-B1B_RevB R2016 32.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 10 pF -30°C~+70°C

R2016-38.400-10-F-1010-TR R2016 38.400MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 10 pF -10°C~+60°C

R2016-38.400-7-F-1010-TR R2016 38.400MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 7 pF -10°C~+60°C

R2016-38.400-8-F-1012-EXT-TR R2016 38.400MHz 2.0 x 1.6mm ± 10 ppm ± 12 ppm 8 pF -40°C~+85°C

R2016-38.400-9-F-1010-TR-NS1 R2016 38.400MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 9 pF -30°C~+85°C

R2016-40.000-6-F-1010-TR-NS1 R2016 40.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 6 pF -10°C~+60°C

R2016-40.000-8-F-1515-TR-NS1 R2016 40.000MHz 2.0 x 1.6mm ± 15 ppm ± 15 ppm 8 pF -30°C~+85°C

R2016-48.000-18-F-1010-TR R2016 48.000MHz 2.0 x 1.6mm ± 10 ppm ± 10 ppm 18 pF -10°C~+60°C

R2016-48.000-6-F-5050-TR R2016 48.000MHz 2.0 x 1.6mm ± 50 ppm ± 50 ppm 6 pF -10°C~+60°C

R2016-48.000-7-F-0715-TR-NS1 R2016 48.000MHz 2.0 x 1.6mm ± 7 ppm ± 15 ppm 7 pF -30°C~+95°C

R2016-48.000-8-F-1515-EXT-TR R2016 48.000MHz 2.0 x 1.6mm ± 15 ppm ± 15 ppm 8 pF -40°C~+85°C
