爱普生晶振FA-128特别适用于有小型化要求的市场领域应用
来源：http://www.hneyq.com 作者：亿金电子 2022年08月23
伴随信息化社会的进程,石英元器件已被广泛应用于各种电子设备以及家电产品之中,日趋重要。 爱普生晶振将进一步究极用精微加工发挥“石英”材料的优越性能的“QMEMS”技术,创造出更小、更高性能或全新功能的元器件；同时,融合爱普生集团的半导体与软件技术增添便于使用、能让顾客更体验到利用价值的“解决方案”。我们将为社会的发展以及实现更舒畅的未来而竭诚奉献.
日本爱普生晶振FA-128，小体积尺寸2.0x1.6mm无源晶振，石英晶体谐振器，具有超小型，轻薄型，耐热及耐环境特性，特别适用于有小型化要求的市场领域应用，比如智能手机,无线蓝牙,平板电脑，等电子数码产品。

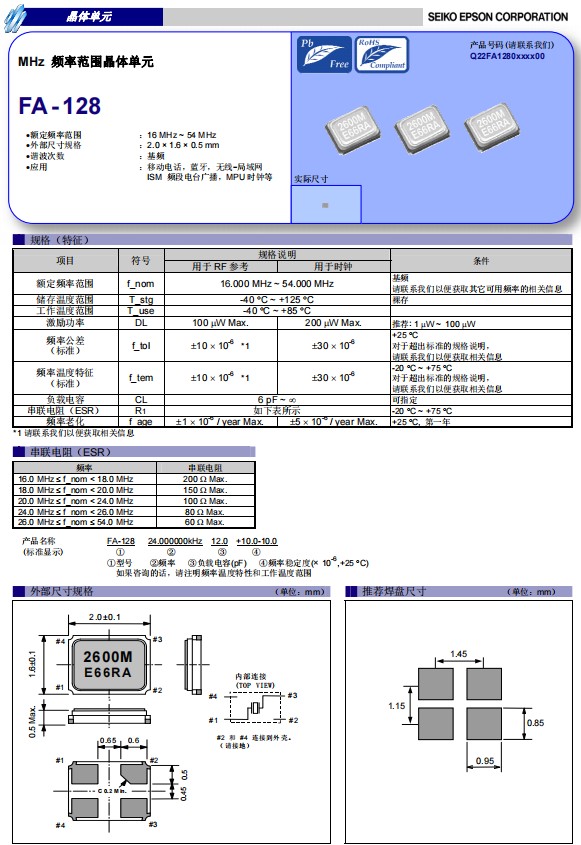

爱普生晶振FA-128特别适用于有小型化要求的市场领域应用,Q22FA1280001300,无源晶振
.JPG)
|
Product Number |
 LxWxH |
 爱普生晶振型号 |
 Frequency |
 CL Value |
 Freq.tol. @+25°C |
|
Q22FA1280000200 |
2 x 1.6 x 0.5mm |
FA-128 |
48.000000 MHz |
12 pF |
+/-50 ppm |
|
Q22FA1280000700 |
2 x 1.6 x 0.5mm |
FA-128 |
38.400000 MHz |
10 pF |
+/-15 ppm |
|
Q22FA1280000800 |
2 x 1.6 x 0.5mm |
FA-128 |
27.000000 MHz |
10 pF |
+/-30 ppm |
|
Q22FA1280001000 |
2 x 1.6 x 0.5mm |
FA-128 |
38.400000 MHz |
10 pF |
+/-10 ppm |
|
Q22FA1280001100 |
2 x 1.6 x 0.5mm |
FA-128 |
26.000000 MHz |
10 pF |
+/-10 ppm |
|
Q22FA1280001300 |
2 x 1.6 x 0.5mm |
FA-128 |
24.000000 MHz |
16 pF |
+/-30 ppm |
|
Q22FA1280001400 |
2 x 1.6 x 0.5mm |
FA-128 |
24.000000 MHz |
16 pF |
+/-30 ppm |
|
Q22FA1280001800 |
2 x 1.6 x 0.5mm |
FA-128 |
32.000000 MHz |
12 pF |
+/-10 ppm |
|
Q22FA1280002000 |
2 x 1.6 x 0.5mm |
FA-128 |
26.000000 MHz |
9 pF |
+/-10 ppm |
|
Q22FA1280002100 |
2 x 1.6 x 0.5mm |
FA-128 |
27.120000 MHz |
10 pF |
+/-10 ppm |
|
Q22FA1280002200 |
2 x 1.6 x 0.5mm |
FA-128 |
24.000000 MHz |
10 pF |
+/-10 ppm |
|
Q22FA1280002400 |
2 x 1.6 x 0.5mm |
FA-128 |
26.000000 MHz |
12 pF |
+/-10 ppm |
|
Q22FA1280002500 |
2 x 1.6 x 0.5mm |
FA-128 |
32.000000 MHz |
8 pF |
+/-10 ppm |
|
Q22FA1280002600 |
2 x 1.6 x 0.5mm |
FA-128 |
26.000000 MHz |
8 pF |
+/-10 ppm |
|
Q22FA1280003000 |
2 x 1.6 x 0.5mm |
FA-128 |
24.000000 MHz |
12 pF |
+/-30 ppm |
|
Q22FA1280003100 |
2 x 1.6 x 0.5mm |
FA-128 |
32.000000 MHz |
18 pF |
+/-30 ppm |
|
Q22FA1280003400 |
2 x 1.6 x 0.5mm |
FA-128 |
27.120000 MHz |
8 pF |
+/-15 ppm |
|
Q22FA1280003500 |
2 x 1.6 x 0.5mm |
FA-128 |
24.000000 MHz |
10 pF |
+/-30 ppm |
|
Q22FA1280003700 |
2 x 1.6 x 0.5mm |
FA-128 |
24.000000 MHz |
12 pF |
+/-50 ppm |
|
Q22FA1280003800 |
2 x 1.6 x 0.5mm |
FA-128 |
24.000000 MHz |
10 pF |
+/-50 ppm |
|
Q22FA1280004300 |
2 x 1.6 x 0.5mm |
FA-128 |
32.000000 MHz |
8 pF |
+/-10 ppm |
EPSON晶振是日本晶振品牌中的杰出代表,是整个晶体行业的领导者.多年来持续引领晶振行业迈向新的阶梯,步入新的方向.2015年晶振全球厂家排名中占据首位.爱普生集团以石英晶振的研发、生产为公司的主要业务.同时投入了大量资金、花费了大量的人力、引进了全球最先进的生产设备、掌握着晶体行业独一无二的技术.公司以追求精益求精每一颗晶振都经过十几道工序经过多次专业检测经过方可入库.成为了日本同行业典范.
爱普生晶振FA-128特别适用于有小型化要求的市场领域应用,Q22FA1280001300,无源晶振
|
Q22FA1280031500 |
2 x 1.6 x 0.5mm |
FA-128 |
27.120000 MHz |
10 pF |
+/-10 ppm |
|
Q22FA1280031800 |
2 x 1.6 x 0.5mm |
FA-128 |
40.000000 MHz |
10 pF |
+/-30 ppm |
|
Q22FA1280032100 |
2 x 1.6 x 0.5mm |
FA-128 |
48.000000 MHz |
7 pF |
+/-30 ppm |
|
Q22FA1280032600 |
2 x 1.6 x 0.5mm |
FA-128 |
24.000000 MHz |
12 pF |
+/-20 ppm |
|
Q22FA1280033200 |
2 x 1.6 x 0.5mm |
FA-128晶振 |
40.000000 MHz |
12 pF |
+/-10 ppm |
|
Q22FA1280033400 |
2 x 1.6 x 0.5mm |
FA-128 |
32.000000 MHz |
9 pF |
+/-10 ppm |
|
Q22FA1280033500 |
2 x 1.6 x 0.5mm |
FA-128 |
20.000000 MHz |
10 pF |
+/-10 ppm |
|
Q22FA1280033600 |
2 x 1.6 x 0.5mm |
FA-128 |
25.000000 MHz |
7 pF |
+/-10 ppm |
|
Q22FA1280033700 |
2 x 1.6 x 0.5mm |
FA-128 |
27.000000 MHz |
12 pF |
+/-10 ppm |
|
Q22FA1280034100 |
2 x 1.6 x 0.5mm |
FA-128 |
16.000000 MHz |
10 pF |
+/-10 ppm |
|
Q22FA1280034500 |
2 x 1.6 x 0.5mm |
FA-128 |
50.000000 MHz |
8 pF |
+/-10 ppm |
|
Q22FA1280034600 |
2 x 1.6 x 0.5mm |
FA-128 |
20.000000 MHz |
6 pF |
+/-10 ppm |
|
Q22FA1280034800 |
2 x 1.6 x 0.5mm |
FA-128 |
16.000000 MHz |
8 pF |
+/-30 ppm |
|
Q22FA1280035000 |
2 x 1.6 x 0.5mm |
FA-128 |
26.000000 MHz |
8 pF |
+/-20 ppm |
|
Q22FA1280035200 |
2 x 1.6 x 0.5mm |
FA-128 |
26.000000 MHz |
7 pF |
+/-10 ppm |
|
Q22FA1280035700 |
2 x 1.6 x 0.5mm |
FA-128 |
24.576000 MHz |
12 pF |
+/-50 ppm |
|
Q22FA1280036400 |
2 x 1.6 x 0.5mm |
FA-128 |
32.000000 MHz |
8 pF |
+/-20 ppm |
|
Q22FA1280036600 |
2 x 1.6 x 0.5mm |
FA-128 |
16.000000 MHz |
7 pF |
+/-10 ppm |
|
Q22FA1280036700 |
2 x 1.6 x 0.5mm |
FA-128 |
32.253000 MHz |
8 pF |
+/-30 ppm |
|
Q22FA1280036800 |
2 x 1.6 x 0.5mm |
FA-128 |
27.120000 MHz |
8 pF |
+/-15 ppm |
|
Q22FA1280036900 |
2 x 1.6 x 0.5mm |
FA-128 |
30.000000 MHz |
10 pF |
+/-10 ppm |
|
Q22FA1280037200 |
2 x 1.6 x 0.5mm |
FA-128 |
19.200000 MHz |
12 pF |
+/-10 ppm |
|
Q22FA1280037600 |
2 x 1.6 x 0.5mm |
FA-128 |
50.000000 MHz |
20 pF |
+/-30 ppm |
|
Q22FA1280038600 |
2 x 1.6 x 0.5mm |
FA-128 |
26.000000 MHz |
19 pF |
+/-15 ppm |
|
Q22FA1280038700 |
2 x 1.6 x 0.5mm |
FA-128 |
24.000000 MHz |
12 pF |
+/-10 ppm |
爱普生晶振FA-128特别适用于有小型化要求的市场领域应用,Q22FA1280001300,无源晶振
日本品牌受到市场的喜爱,然而我国也绝不服输。亿金电子是我国行业的示范厂家.由于市场需求旺盛,而我国很多企业不得不依靠进口晶振来完成生产.随着市场需要亿金电子引进了国外的先进生产技术,以及自动化设备.来制造属于我们自己的品牌,带动我国晶体行业的发展.
