首页欧美晶振拉隆晶振Raltron晶振,H10S-16.384-18-1030-TR,6G无线应用晶振

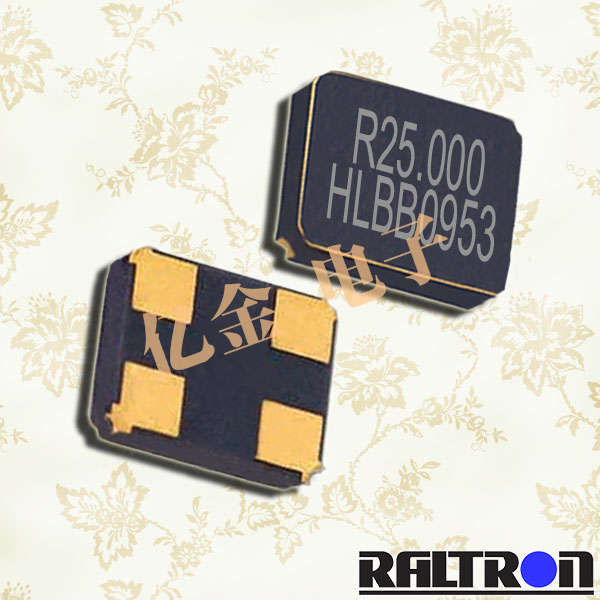

Raltron晶振,H10S-16.384-18-1030-TR,6G无线应用晶振

频率：16.384MHz
尺寸：6.0×3.5mm
应　用： Raltron晶振,美国进口晶振,H10S石英晶体,H10S-16.384-18-1030-TR晶振,石英贴片晶振,6035mm晶振,频率16.384MHz,负载18pF,频率稳定性30ppm,工作温度-10~60°C,高精度晶振,无铅环保晶振,6G无线应用晶振,摄像机晶振,网站终...

Raltron晶振,H10S-16.384-18-1030-TR,6G无线应用晶振,Raltron晶振,美国进口晶振,H10S石英晶体,H10S-16.384-18-1030-TR晶振,石英贴片晶振,6035mm晶振,频率16.384MHz,负载18pF,频率稳定性30ppm,工作温度-10~60°C,高精度晶振,无铅环保晶振,6G无线应用晶振,摄像机晶振,网站终端晶振,通讯设备晶振.
Raltron晶振,H10S-16.384-18-1030-TR,6G无线应用晶振特点：
•低调

•精度高，稳定性好

•宽频率范围从8.00兆赫到200.00兆赫

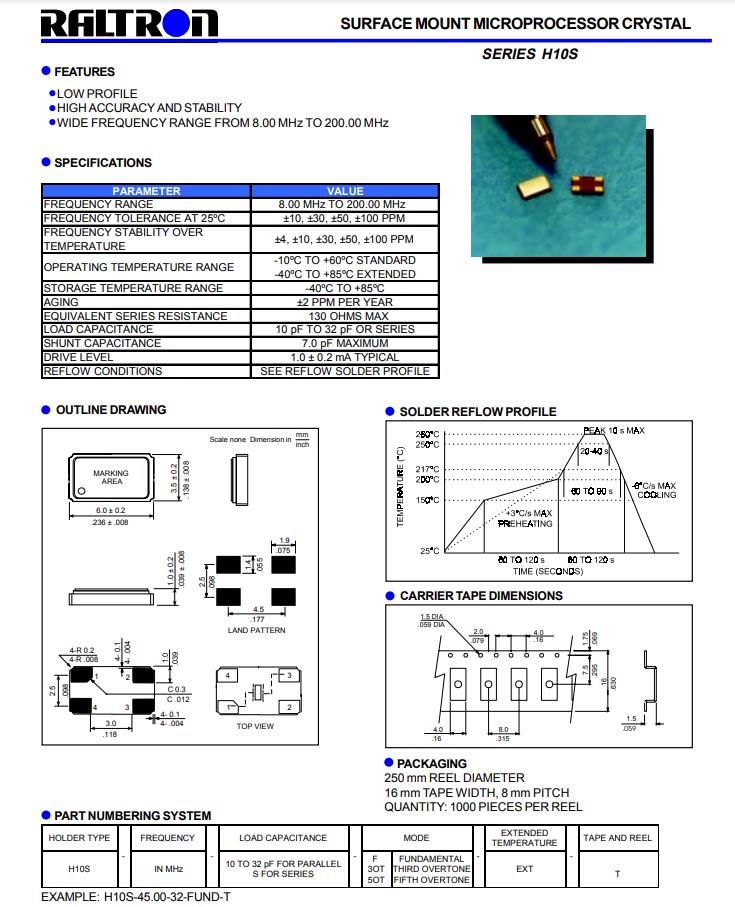

Raltron晶振,H10S-16.384-18-1030-TR,6G无线应用晶振规格表

参数	数值
标准频率	16.384MHz
频率容差	10ppm
频率稳定性	30ppm
工作温度	−10~+60°C
工作温度	−40~+85°C
老化	±2ppm
负载	18pF
并联电容	7pF Max
激励功率	1.0 ± 0.2 mA Typ
等效串联电阻	130 OHMS MAX
等效串联电阻	130 OHMS MAX
回流焊条件	SEE REFLOW SOLDER PROFILE

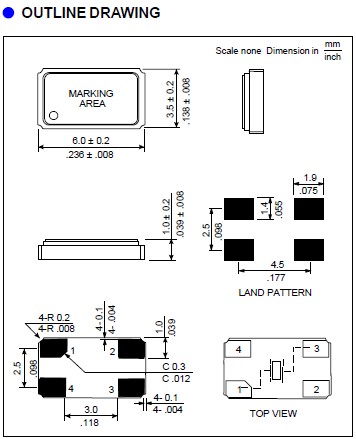

Raltron晶振,H10S-16.384-18-1030-TR,6G无线应用晶振尺寸图

Raltron原厂编码	型号	频率	尺寸	频率偏差	频率稳定度	负载	工作温度
H10S-13.560-10-1010-TR	H10S	13.560MHz	6.0 x 3.5mm	± 10 ppm	± 10 ppm	10 pF	-10°C~+60°C
H10S-14.7456-16-1020-TR	H10S	14.7456MHz	6.0 x 3.5mm	± 10 ppm	± 20 ppm	16 pF	-10°C~+60°C
H10S-16.000-20-3050-EXT-TR	H10S	16.000MHz	6.0 x 3.5mm	± 30 ppm	± 50 ppm	20 pF	-40°C~+85°C
H10S-16.384-18-1030-TR	H10S	16.384MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-10°C~+60°C
H10S-18.432-18-EXT-TR	H10S	18.432MHz	6.0 x 3.5mm	± 100 ppm	± 100 ppm	18 pF	-40°C~+85°C
H10S-20.000-18-1010-TR	H10S	20.000MHz	6.0 x 3.5mm	± 10 ppm	± 10 ppm	18 pF	-10°C~+60°C
H10S-24.000-18-2020-EXT-TR	H10S	24.000MHz	6.0 x 3.5mm	± 20 ppm	± 20 ppm	18 pF	-40°C~+85°C
H10S-25.000-18-F-EXT-TR	H10S	25.000MHz	6.0 x 3.5mm	± 100 ppm	± 100 ppm	18 pF	-40°C~+85°C
H10S-26.000-18-F-1030-EXT-TR	H10S	26.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-27.120-18-F-3050-TR	H10S	27.120MHz	6.0 x 3.5mm	± 30 ppm	± 50 ppm	18 pF	-10°C~+60°C
H10S-28.000-18-F-1030-EXT-TR	H10S	28.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-29.000-18-F-1030-EXT-TR	H10S	29.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-30.000-18-F-1030-EXT-TR	H10S	30.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-31.000-18-F-1030-EXT-TR	H10S	31.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-32.000-18-F-1030-EXT-TR	H10S	32.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-33.000-18-F-1030-EXT-TR	H10S	33.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-34.000-18-F-1030-EXT-TR	H10S	34.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-35.000-18-F-1030-EXT-TR	H10S	35.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-36.000-18-F-1030-EXT-TR	H10S	36.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-37.000-18-F-1030-EXT-TR	H10S	37.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
