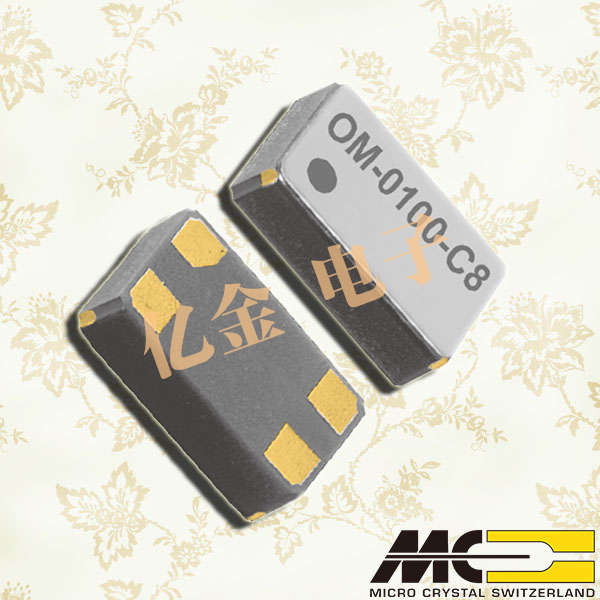

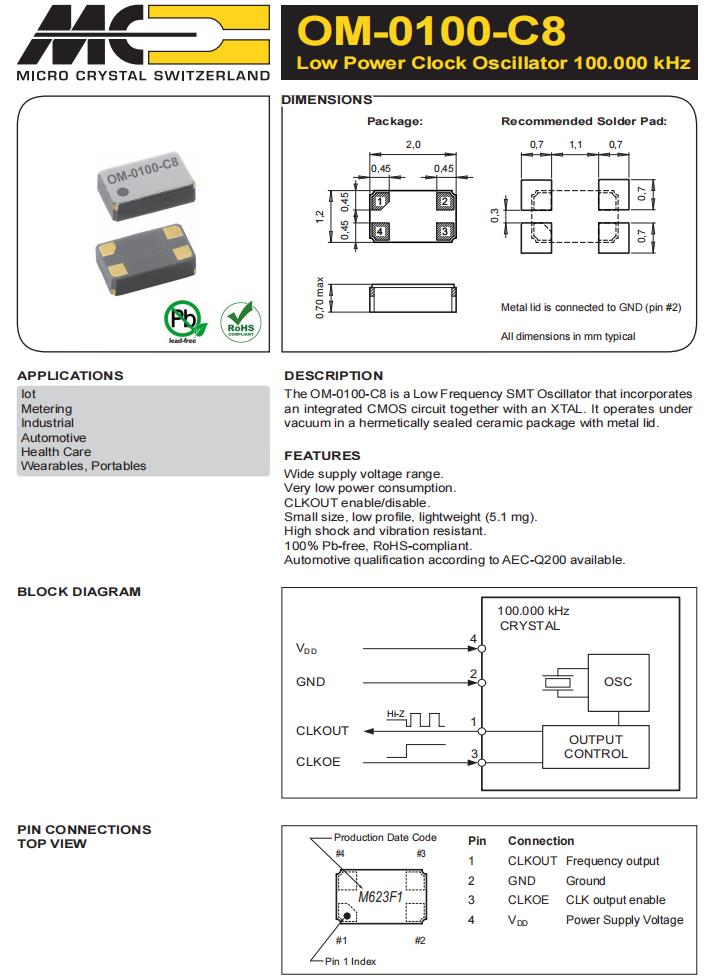

Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗時鐘振蕩器
- 頻率：100KHz
- 尺寸：2.0×1.2mm
- 應 用： 歐美晶振,Micro Crystal晶振,OM-0100-C8時鐘振蕩器,有源晶振,OM-0100-C8-20ppm-TA-QC晶振,千赫晶體KHZ,石英晶體振蕩器,2012mm晶振,四腳貼片晶振,SMD晶振,頻率100KHz,電壓1.2~5.5V,工作溫度-40~85°C,頻率容差20ppm,無...
-
-
Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗時鐘振蕩器,歐美晶振,Micro Crystal晶振,OM-0100-C8時鐘振蕩器,有源晶振,OM-0100-C8-20ppm-TA-QC晶振,千赫晶體KHZ,石英晶體振蕩器,2012mm晶振,四腳貼片晶振,SMD晶振,頻率100KHz,電壓1.2~5.5V,工作溫度-40~85°C,頻率容差20ppm,無鉛環保晶振,低功耗晶振,輕薄小晶振,物聯網晶振,工業自動化晶振,測試與測量儀器晶振,衛生保健晶振.
Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗時鐘振蕩器特點：
•寬電源電壓范圍
•非常低的功耗
•CLKOUT啟用/禁用
•小尺寸，低輪廓，重量輕(5.1毫克)
•高抗沖擊和抗振動
•100%不含鉛，符合RoHS標準
•具備AEC-Q200汽車資質
Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗時鐘振蕩器規格表
|
Standard Frequency
|
FL | 100.000 | KHz |
|
Supply voltage
|
VDD
|
1.2~5.5 | V |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Current consumption (typ./max.)
|
IDD
|
0.55 / 0.75
|
µA
|
|
Duty cycle (min./max.)
|
|
40 / 60
|
% |
|
Start up time (max.)
|
tstart
|
0.5
|
S
|
|
Voltage coefficient (max.)
|
|
±3
|
ppm/V
|
|
Aging first year max. @ 25°C
|
ΔF/F
|
±3
|
ppm
|
|
Turnover temperature (typ.)
|
T0
|
28 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/ °C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TA Operating temperature range
|
T_use | −40~+85 | °C |
|
Shock resistance
|
5000 g, 0.3 ms, ½ sine
|
||
|
Vibration resistance
|
20 g / 10–2000 Hz
|
.jpg)

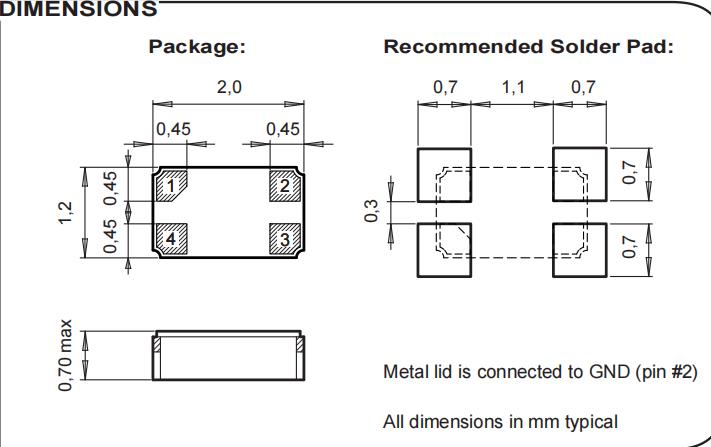

Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗時鐘振蕩器尺寸圖
.jpg)
.jpg)
| 制造商零件編號 | 制造商 | 描述 |
| OV-7604-C7-32.768k-20PPM-TB-QA | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200 |
| OV-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| OV-0100-C7-100.000kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C |
| OM-0100-C8-100.00kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| OM-7605-C8-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| OM-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM I2C -40/+85C |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| 202684-MC03 | Micro Crystal | 晶體 32.768 kHz 4.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C |
| 202273-EA00 | Micro Crystal | 標準時鐘振蕩器 128MHz 20ppm -55C +85C |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C |
| CC7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+125C |
| CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C |
| CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR |
| CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF 100 PPM -40/+125C |
| CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
| CC7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 |
| CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| OV-7605-C8-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF 500 PPM -55/+125C |
| OM-7604-C7-32.768kHz-20PPM-TB-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C |
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C |
| OV-7604-C7-32.768k-10PPM-TB-QA | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200 |
| OV-7604-C7-32.768k-20PPM-TA-QA | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶體 153.600 kHz 9.0 pF +/-30 PPM -40/+85C |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro Crystal | 晶體 307.200 kHz 4.0 pF 100 PPM -55/+125C |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF 100 PPM -55/+125C |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -55/+125C |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro Crystal | 晶體 1.2288 MHz 10.0 pF 100 PPM -55/+125C |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro Crystal | 晶體 40.000 kHz 9.0 pF +/-30 PPM -55/+125C |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 8.2 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C |
| OV-7604-C7-32.768kHz-10PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+85C |
| OV-0100-C7-100.000kHz-50PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 100.0 kHz +/-50 PPM -40/+85C |
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro Crystal | 晶體 307.200 kHz 4.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-30 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-30 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-15 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-30 PPM -55/+125C |
| CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 2.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶體 40.000 kHz 9.0 pF +/-30 PPM -40/+85C |
| 200125-PL08 | Micro Crystal | 晶體 32.768kHz 7pF +/-10 PPM -40C +85C |
| OM-7605-C8-20PPM-TA-QA | Micro Crystal | 標準時鐘振蕩器 32.768kHz 20ppm 1.6-5.5V |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
.jpg)
.jpg)
公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.hneyq.com
地址：廣東省深圳市寶安區新安107國道旁
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.hneyq.com
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
