SG3225VAN差分晶振X1G004241002600适用于工业自动化控制系统
来源：http://www.hneyq.com 作者：亿金电子 2022年10月14
近年来，对小型化、多功能网络设备的需求不断增加，爱普生推出SG3225VAN晶振是一款小体积尺寸3.2x2.5mm晶体振荡器，差分晶振，电源电压为2.5V至3.3V，输出频率73.5MHz至700MHz，具有低电源电压，低功耗，低抖动，低耗能，低损耗，小型化，高稳定性等优点，在手持携带设备、可穿戴式设备以及物联网等网络设备中具有广阔的市场前景，可有效延长设备使用寿命、缩短产品开发周期。目前市场主流差分晶振都是6脚贴片晶振封装，频率比普通晶振相比较高，常用的频率有:74.25MHz,100MHz,125MHz,148.5MHz,150MHz,200MHz等。适用于10GbE、40GbE、100GbE超宽频以太网络，医疗、测试测量、消费电子、工业自动化等领域。

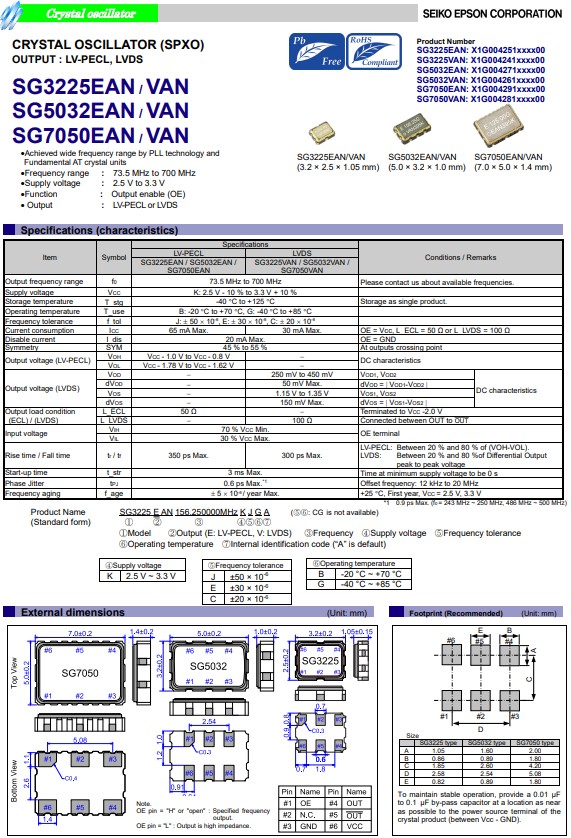

SG3225VAN差分晶振X1G004241002600适用于工业自动化控制系统,X1G004241001000,低耗能晶振
.JPG)
SG3225VAN差分晶振X1G004241002600适用于工业自动化控制系统,X1G004241001000,低耗能晶振
爱普生SG3225VAN晶振结合低抖动PLL技术和内置AT晶体单元，可产生稳定的输出信号；频率偏移误差*低±20ppm，*大相位抖动不超过0.6ps，非常适合对时钟信号完整性有严格要求的系统。考虑元件老化的影响，其频率老化率仅为±5ppm/年，大大提高了元件的使用寿命。SG3225VAN石英晶体振荡器支持LVDS标准差分信号，增强了输出信号的抗干扰能力，可作为标准模块在电路中直接应用。
SG3225VAN差分晶振X1G004241002600适用于工业自动化控制系统,X1G004241001000,低耗能晶振
| 产品编码 |
   型号 |
   频率 |
   石英晶振 |
   输出波 |
   电源电压 |
   工作温度 |
| X1G004241000100 | SG3225VAN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000400 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000500 | SG3225VAN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000600 | SG3225VAN | 400.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000800 | SG3225VAN | 212.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241001000 | SG3225VAN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241001200 | SG3225VAN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241001400 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002000 | SG3225VAN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002300 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002400 | SG3225VAN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002500 | SG3225VAN | 400.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002600 | SG3225VAN | 106.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002800 | SG3225VAN | 74.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002900 | SG3225VAN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003100 | SG3225VAN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003200 | SG3225VAN | 155.520000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003300 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003400 | SG3225VAN | 312.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003900 | SG3225VAN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241004200 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241005200 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006100 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006200 | SG3225VAN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006500 | SG3225VAN | 212.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006900 | SG3225VAN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241007100 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241010000 | SG3225VAN | 133.333333MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241010300 | SG3225VAN | 250.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241010500 | SG3225VAN | 80.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241010800 | SG3225VAN | 297.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241010900 | SG3225VAN | 133.330000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241011300 | SG3225VAN | 125.003125MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241011700 | SG3225VAN | 126.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012000 | SG3225VAN | 322.265625MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012300 | SG3225VAN | 90.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241012400 | SG3225VAN | 135.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012500 | SG3225VAN | 76.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012600 | SG3225VAN | 360.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012700 | SG3225VAN | 644.531250MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241012900 | SG3225VAN | 322.265625MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241013000 | SG3225VAN | 115.200000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
爱普生SG3225VAN晶振结合低抖动PLL技术和内置AT晶体单元，可产生稳定的输出信号；频率偏移误差*低±20ppm，*大相位抖动不超过0.6ps，非常适合对时钟信号完整性有严格要求的系统。考虑元件老化的影响，其频率老化率仅为±5ppm/年，大大提高了元件的使用寿命。SG3225VAN石英晶体振荡器支持LVDS标准差分信号，增强了输出信号的抗干扰能力，可作为标准模块在电路中直接应用。
