SG-210SCBA车载专用晶振X1G004591A02000特别适用于遥控无匙门禁

来源：http://www.hneyq.com 作者：亿金电子 2022年10月09

针对各种车载电子设备对石英晶振在高温、抗振动等方面的更高要求，爱普生可以提供全面的符合AEC-Q200/100技术标准的汽车用车规晶振。

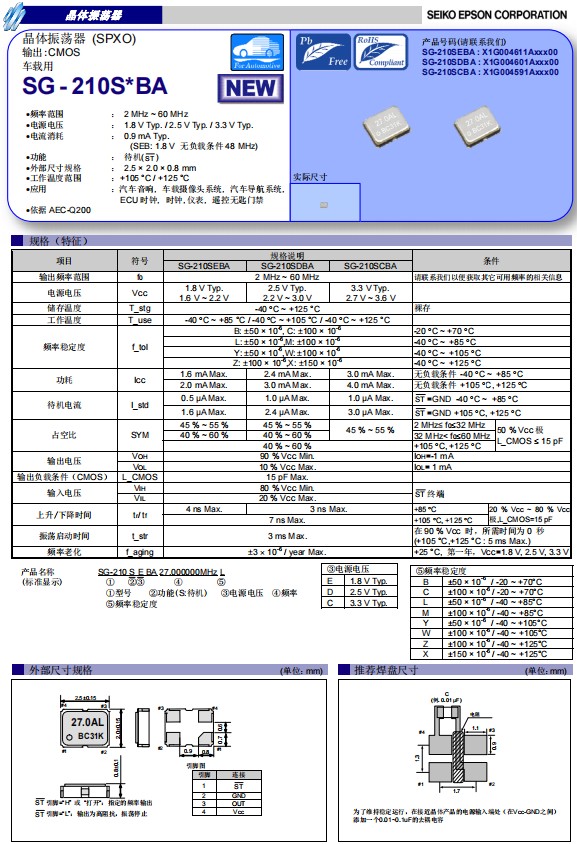

日本爱普生推出车载专用晶振SG-210SCBA，是一款CMOS输出石英晶体振荡器，频率范围:2MHz至60MHz，电源电压(典型值):1.8V/2.5V/3.3V可选，工作温度范围:-40℃至+85℃/+105℃/+125℃，小体积尺寸:2.5x2.0x0.9mm，四脚贴片晶振，紧凑的结构和小体积使产品适用于微空间的电路设计。SG-210SCBA有源晶振具有超小型，轻薄型，耐高温，耐热、耐振、耐冲击等优良的耐环境特性。应用于：汽车音响，车载摄像头系统，汽车导航系统，汽车空调系统，ECU时钟，时钟，仪表，?？匚蕹酌沤?，符合AEC-Q200标准，是汽车电子应用中的理想选择。
SG-210SCBA车载专用晶振X1G004591A02000特别适用于?？匚蕹酌沤?X1G004591A08200,有源晶振

产品编码	型号	频率	尺寸	输出波	电源电压	工作温度
X1G004591A00100	SG-210SCBA	27.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A00200	SG-210SCBA	49.090000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A00300	SG-210SCBA	40.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A00400	SG-210SCBA	8.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A00600	SG-210SCBA	37.007000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A00700	SG-210SCBA	27.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A00900	SG-210SCBA	20.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A01000	SG-210SCBA	33.333000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A01300	SG-210SCBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A01700	SG-210SCBA	4.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A02000	SG-210SCBA	20.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A02100	SG-210SCBA	33.333300MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A02300	SG-210SCBA	16.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A02400	SG-210SCBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A02500	SG-210SCBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A02700	SG-210SCBA	33.300000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A02800	SG-210SCBA	48.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A03100	SG-210SCBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A03300	SG-210SCBA	10.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A03600	SG-210SCBA	33.333300MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A03700	SG-210SCBA	14.745600MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A03800	SG-210SCBA	37.007000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A04000	SG-210SCBA	24.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A04100	SG-210SCBA	16.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A04900	SG-210SCBA	24.576000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A05000	SG-210SCBA	22.579200MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A05100	SG-210SCBA	14.745600MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A05200	SG-210SCBA	24.576000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A05800	SG-210SCBA	48.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C

X1G004591A05900	SG-210SCBA	10.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A06700	SG-210SCBA	27.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A06800	SG-210SCBA	12.288000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A07200	SG-210SCBA	8.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A07300	SG-210SCBA	30.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A07700	SG-210SCBA	7.904000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A07800	SG-210SCBA	12.288000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A08100	SG-210SCBA	40.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A08200	SG-210SCBA	16.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A08400	SG-210SCBA	24.576000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A08500	SG-210SCBA	16.666600MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A08600	SG-210SCBA	19.200000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A08700	SG-210SCBA	12.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A08800	SG-210SCBA	45.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A08900	SG-210SCBA	40.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A09000	SG-210SCBA	13.333000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A09100	SG-210SCBA	11.289600MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A09200	SG-210SCBA	12.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A09400	SG-210SCBA	6.780000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A09500	SG-210SCBA	24.545452MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A09700	SG-210SCBA	48.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A09800	SG-210SCBA	11.250000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A09900	SG-210SCBA	12.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A10000	SG-210SCBA	16.666600MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A10100	SG-210SCBA	33.330000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A10200	SG-210SCBA	10.240000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A10400	SG-210SCBA	24.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A10500	SG-210SCBA	33.333000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A10600	SG-210SCBA	11.289600MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A10900	SG-210SCBA	6.144000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 85°C
X1G004591A11000	SG-210SCBA	3.579000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A11100	SG-210SCBA	49.500000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A11400	SG-210SCBA	26.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A11500	SG-210SCBA	33.330000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C
X1G004591A11800	SG-210SCBA	6.144000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 105°C
X1G004591A11900	SG-210SCBA	4.000000MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600V	-40 to 125°C

SG-210SCBA车载专用晶振X1G004591A02000特别适用于?？匚蕹酌沤?X1G004591A08200,有源晶振
汽车电子最重要的作用是提高汽车的安全性，舒适性，经济性和娱乐性。用传感器，微处理器MPU，执行器，数十甚至上百个电子元器件及其零部件组成的电控系统。车载晶振，在汽车方面使用到了大大小小的各种石英晶振，各种类型以及封装尺寸，无一不在给各项汽车产品带去性能。我们首先知道的是在使用到汽车上面的贴片晶振都是需要具备高性能,耐高温等各项要求，才能保证能正常发挥性能。
