FA-238贴片晶振Q22FA2380014700用于通讯模块应用

来源：http://www.hneyq.com 作者：亿金电子 2022年10月18

石英晶体谐振器，简称石英晶体或晶振，是利用石英晶体（又称水晶）的压电效应，用来产生高精度振荡频率的一种电子元件，属于被动元件。该元件主要由石英晶片、基座、外壳、银胶、银等成分组成。

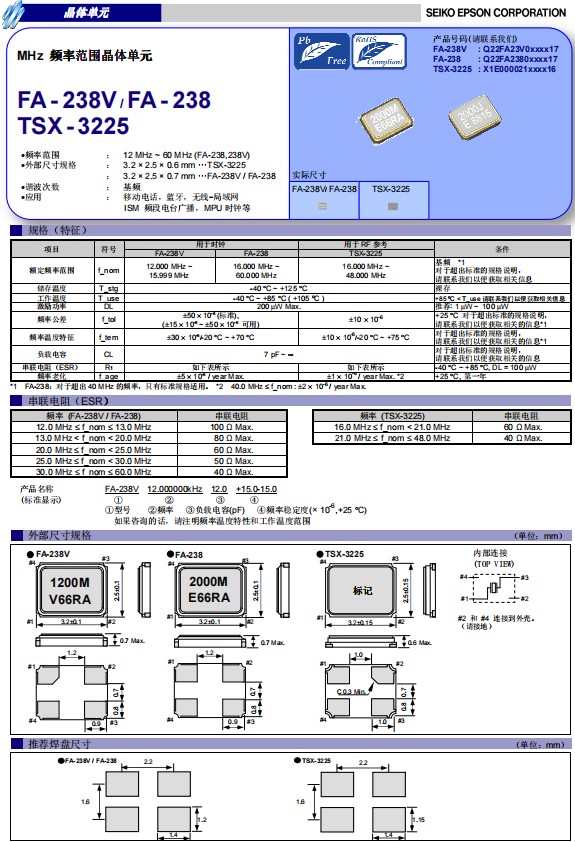

日本进口爱普生晶振FA-238和FA-238V，是一款小体积晶振尺寸3.2x2.5mm四脚贴片晶振，无源晶振，石英晶体谐振器，频率范围:12MHz至15.9999MHz可以选择FA-238V晶振，而频率范围:16MHz至60MHz之间的频率可以选型FA-238系列。该产品工作温度都是-40℃至+85℃（+105℃），都具有超小型，轻薄型，耐热及耐环境特点，特别适用于小型便捷设备，通讯模块，可穿戴设备，智能手机，平板电脑，便捷式电子仪器，汽车电子，智能家居等。
FA-238贴片晶振Q22FA2380014700用于通讯模块应用,Q22FA2380017000,3225mm晶振

爱普生晶振	尺寸	型号	频率	负载	精度	频率公差	工作温度
Q22FA2380009500	3.2x2.5x0.7mm	FA-238	25.000000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380009800	3.2x2.5x0.7mm	FA-238	30.000000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380010300	3.2x2.5x0.7mm	FA-238	27.000000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380011400	3.2x2.5x0.7mm	FA-238	24.000000MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380012000	3.2x2.5x0.7mm	FA-238	24.576000MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380012700	3.2x2.5x0.7mm	FA-238	18.432000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380012800	3.2x2.5x0.7mm	FA-238	18.432000MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380012900	3.2x2.5x0.7mm	FA-238	22.579200MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380013300	3.2x2.5x0.7mm	FA-238	16.000000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380013700	3.2x2.5x0.7mm	FA-238	40.000000MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380013800	3.2x2.5x0.7mm	FA-238	27.000000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380014000	3.2x2.5x0.7mm	FA-238	48.000000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380014100	3.2x2.5x0.7mm	FA-238	32.000000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380014600	3.2x2.5x0.7mm	FA-238	26.000000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380014700	3.2x2.5x0.7mm	FA-238	26.000000MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380014800	3.2x2.5x0.7mm	FA-238	48.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380014900	3.2x2.5x0.7mm	FA-238	18.432000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380015600	3.2x2.5x0.7mm	FA-238	24.576000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380016500	3.2x2.5x0.7mm	FA-238	25.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380017000	3.2x2.5x0.7mm	FA-238	20.000000MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380017900	3.2x2.5x0.7mm	FA-238	16.000000MHz	12.5pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380019000	3.2x2.5x0.7mm	FA-238	24.576000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380019800	3.2x2.5x0.7mm	FA-238	24.576000MHz	7pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380020500	3.2x2.5x0.7mm	FA-238	19.200000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380021600	3.2x2.5x0.7mm	FA-238	16.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380047800	3.2x2.5x0.7mm	FA-238	25.000000MHz	18pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380048000	3.2x2.5x0.7mm	FA-238	27.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+70°C

Q22FA2380048300	3.2x2.5x0.7mm	FA-238	16.000000MHz	10pF	+/-20ppm	+/-30ppm	-40to+85°C
Q22FA2380048900	3.2x2.5x0.7mm	FA-238	27.000000MHz	10pF	+/-20ppm	+/-30ppm	-40to+85°C
Q22FA2380054700	3.2x2.5x0.7mm	FA-238	25.000000MHz	16pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380055300	3.2x2.5x0.7mm	FA-238	30.000000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380057300	3.2x2.5x0.7mm	FA-238	48.000000MHz	10pF	+/-50ppm	+/-50ppm	-20to+70°C
Q22FA2380059100	3.2x2.5x0.7mm	FA-238	24.000000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380059400	3.2x2.5x0.7mm	FA-238	48.000000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380059900	3.2x2.5x0.7mm	FA-238	27.000000MHz	16pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380060800	3.2x2.5x0.7mm	FA-238	48.000000MHz	7pF	+/-50ppm	+/-50ppm	-20to+70°C
Q22FA2380061200	3.2x2.5x0.7mm	FA-238	44.000000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380062000	3.2x2.5x0.7mm	FA-238	16.000000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380065300	3.2x2.5x0.7mm	FA-238	25.000000MHz	7pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380066600	3.2x2.5x0.7mm	FA-238	18.432000MHz	7pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380067800	3.2x2.5x0.7mm	FA-238	25.000000MHz	20pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380068300	3.2x2.5x0.7mm	FA-238	24.545454MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380069900	3.2x2.5x0.7mm	FA-238	33.330000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380070200	3.2x2.5x0.7mm	FA-238	16.000000MHz	15pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380070600	3.2x2.5x0.7mm	FA-238	27.000000MHz	8pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380071600	3.2x2.5x0.7mm	FA-238	30.000000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380072900	3.2x2.5x0.7mm	FA-238	20.000000MHz	7pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380074500	3.2x2.5x0.7mm	FA-238	25.000000MHz	9pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380074700	3.2x2.5x0.7mm	FA-238	19.200000MHz	10pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380075200	3.2x2.5x0.7mm	FA-238	30.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380075300	3.2x2.5x0.7mm	FA-238	33.333300MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380075500	3.2x2.5x0.7mm	FA-238	19.200000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA2380075900	3.2x2.5x0.7mm	FA-238	27.000000MHz	9pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA2380077500	3.2x2.5x0.7mm	FA-238	24.000000MHz	8pF	+/-50ppm	+/-50ppm	-20to+70°C

FA-238贴片晶振Q22FA2380014700用于通讯模块应用,Q22FA2380017000,3225mm晶振

小型贴片石英晶振主要采用了，先进的晶片的抛光工艺技术，是晶体行业中石英晶片研磨技术中表面处理的最高技术，最终使晶片表面更光洁，平行度及平面度更好，大大的降低谐振电阻，使精度得到了很大的提升。改变了传统的生产工艺，使产品在各项参数得到了很大的改良，外观尺寸具有薄型表面贴片型石英晶体谐振器，特别适用于有小型化要求的市场领域,比如智能手机，无线蓝牙，平板电脑等电子数码产品。
