CMOS振荡器CWX825-33.333M用于高密度安装
来源：http://www.hneyq.com 作者：亿金电子 2023年05月15
ConnorWinfield康纳温菲尔德晶振CWX8xx系列CWX825晶振，是一款小体积晶振尺寸5.0x7.0mm毫米表面贴装，有源晶振，固定频率晶体控制振荡器(XO)。3.3V或5.0V工作电压，CMOS输出逻辑，可用的频率稳定性: 低抖动< 1pS RMS 三态使能/禁用 胶带和卷轴包装 +/-25ppm或+/-50ppm，温度范围:-20℃至70℃。石英晶体振荡器为使用而设计在要求严格频率的应用中稳定性和低抖动。表面贴装封装设计用于高密度安装，是质量的最佳选择生产。符合RoHS标准，被广泛用于通讯设备，无线网络，蓝牙模块，汽车电子，GPS定位系统，导航仪，医疗设备，数码电子，物联网等应用。CMOS振荡器CWX825-33.333M用于高密度安装
CMOS振荡器CWX825-33.333M用于高密度安装，晶振的功能是为系统提供基本的时钟信号，通常一个系统共用一个晶振，便于各部分保持同步。有些通讯系统的基频和射频使用不同的晶振，不同的规格封装延伸很多的频点等不同的参数，而通过电子调整频率的方法保持同步，在我们日常生活中也离不开晶振。时钟振荡器是利用了晶体的压电效应制造的,当在晶片的两面上加交变电压时，晶片会反复的机械变形而产生振动，而这种机械振动又会反过来产生交变电压。

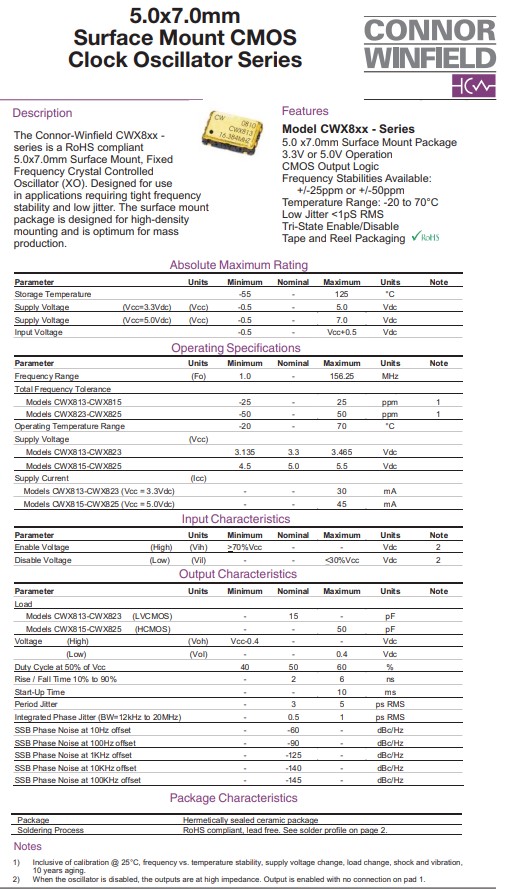

.JPG)
| 原厂代码 | 品牌 | 型号 | 频率 | 工作温度 | 包装/封装 |
| CWX825-1.544M | ConnorWinfield | CWX825 | 1.544MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-1.8432M | ConnorWinfield | CWX825 | 1.8432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-3.6864M | ConnorWinfield | CWX825 | 3.6864MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-4.0M | ConnorWinfield | CWX825 | 4MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-7.3728M | ConnorWinfield | CWX825 | 7.3728MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-8.0M | 康纳温菲尔德晶振 | CWX825 | 8MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-10.0M | ConnorWinfield | CWX825 | 10MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-12.0M | ConnorWinfield | CWX825 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-12.288M | ConnorWinfield | CWX825 | 12.288MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-14.31818M | ConnorWinfield | CWX825 | 14.31818MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-15.36M | ConnorWinfield | CWX825 | 15.36MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-16.0M | ConnorWinfield | CWX825 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-16.384M | ConnorWinfield | CWX825 | 16.384MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-18.432M | ConnorWinfield | CWX825 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-19.44M | ConnorWinfield | CWX825 | 19.44MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-20.0M | ConnorWinfield | CWX825 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-20.48M | ConnorWinfield | CWX825 | 20.48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-24.0M | ConnorWinfield | CWX825 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-24.576M | ConnorWinfield | CWX825 | 24.576MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-25.0M | ConnorWinfield | CWX825 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-27.0M | ConnorWinfield | CWX825 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-29.4912M | ConnorWinfield | CWX825 | 29.4912MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-30.0M | ConnorWinfield | CWX825 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-32.0M | ConnorWinfield | CWX825 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-33.0M | ConnorWinfield | CWX825 | 33MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-33.333M | ConnorWinfield | CWX825 | 33.333MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-40.0M | ConnorWinfield | CWX825 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-44.736M | ConnorWinfield | CWX825 | 44.736MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-45.0M | 贴片晶振 | CWX825 | 45MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-49.152M | ConnorWinfield | CWX825 | 49.152MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-50.0M | ConnorWinfield | CWX825 | 50MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-60.0M | ConnorWinfield | CWX825 | 60MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-64.0M | ConnorWinfield | CWX825 | 64MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-66.6666M | ConnorWinfield | CWX825 | 66.6666MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-72.0M | ConnorWinfield | CWX825 | 72MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-80.0M | ConnorWinfield | CWX825 | 80MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-100.0M | ConnorWinfield | CWX825 | 100MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-125.0M | ConnorWinfield | CWX825 | 125MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-156.25M | ConnorWinfield | CWX825 | 156.25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
