微晶超小型晶体CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴设备专用晶振
来源：http://www.hneyq.com 作者：亿金电子 2023年06月08

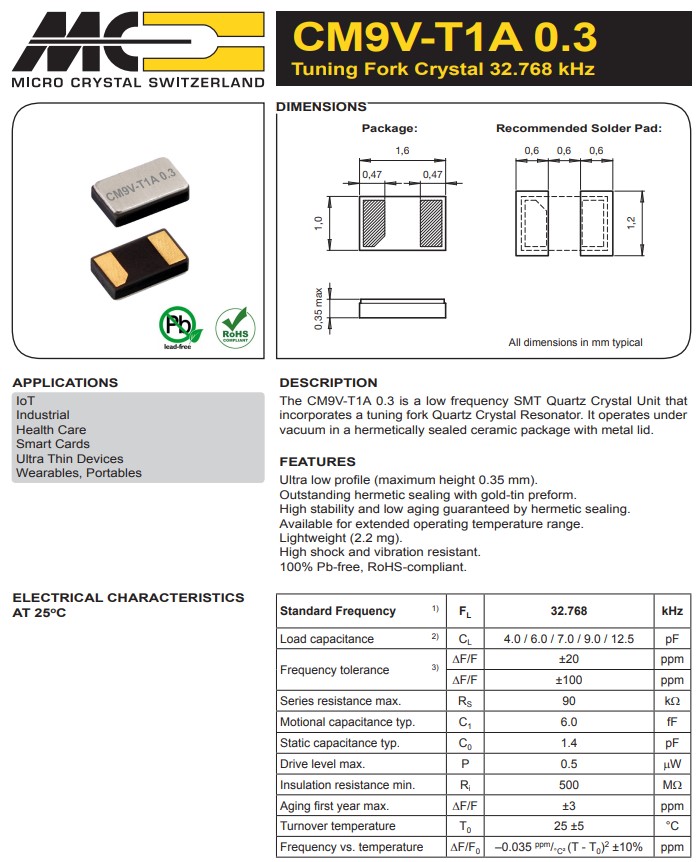

瑞士Microcrystal微晶超低功率、低电压解决方案提供商推出小型化的下一步：CM9V-T1A 0.3：32.768KHz石英晶体，小体积尺寸仅为1.6x1.0mm两脚晶振，超薄型(最大高度0.35毫米)，重量轻(2.2毫克)，无源晶振，石英晶体谐振器，石英晶体，密封保证了高稳定性和低老化，适用于扩展的工作温度范围，这种新的微小几何形状增强了弯曲半径至关重要的应用中的电路，32.768K贴片晶振系列已在全球数千种应用中取得了良好的成绩。 高抗冲击和振动，100%无铅，符合RoHS标准，非常适合应用于：可穿戴设备、物联网、工业、汽车、医疗保健和消费电子，智能卡，小型便捷式设备，手提式打字机，物联网，产业的，卫生保健。微晶超小型晶体CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴设备专用晶振
微晶超小型晶体CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴设备专用晶振，Micro Crystal AG公司于1978年在瑞士格伦兴成立，是一家生产手表音叉晶体的公司。如今，Micro Crystal AG是微型石英晶体(30kHz至250MHz)、时钟晶体谐振器，实时时钟(RTC)模块、振荡器和OCXOs的领先制造商，为全球领先的物联网、可穿戴、汽车、工业和医疗应用制造商提供服务。

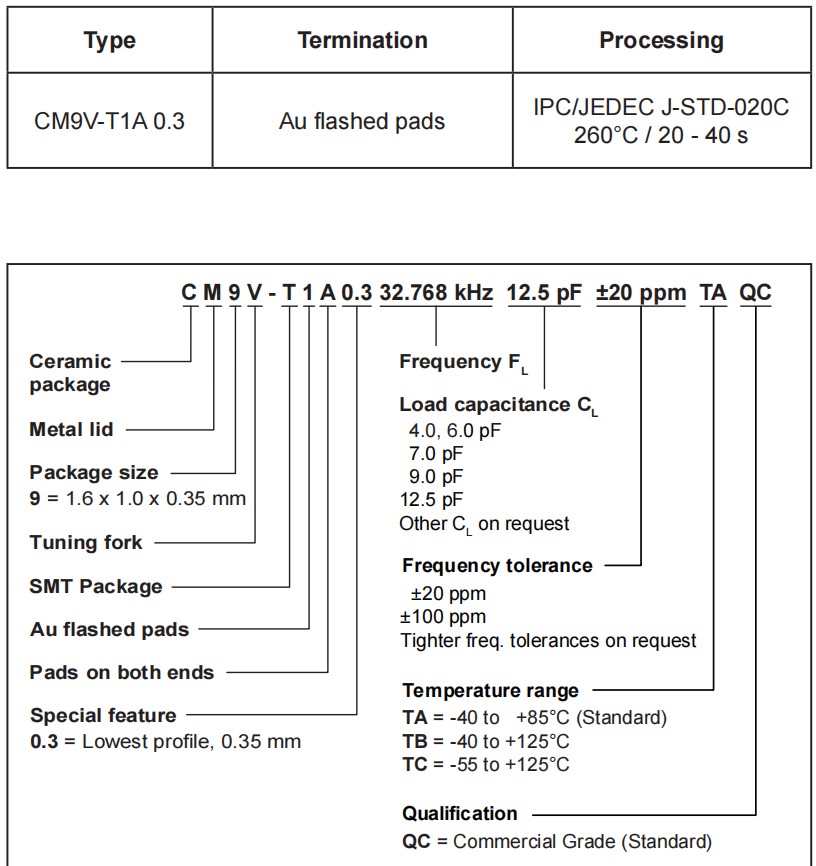

| 微晶晶振 | 制造商零件编号 | 描述 | 频率 |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768k-9pF-20PPM-TB-QA | 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-7pF-20PPM-TA-QA | 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-7pF-100PPM-TB-QA | 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-9pF-20PPM-TB-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-7pF-20PPM-TC-QA | 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-9pF-20PPM-TC-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | 32.768k |
| Micro Crystal | CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM 0.3mm | 32.768 kHz |
| Micro Crystal | CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM 0.3mm | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| 石英晶振 | CM7V-T1A-32.768k-9pF-20PPM-TA-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | 32.768 kHz 9.0 pF +/-10 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-9pF-100PPM-TC-QA | 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-6pF-20PPM-TB-QA | 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA | 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
微晶超小型晶体CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴设备专用晶振，Micro Crystal AG公司于1978年在瑞士格伦兴成立，是一家生产手表音叉晶体的公司。如今，Micro Crystal AG是微型石英晶体(30kHz至250MHz)、时钟晶体谐振器，实时时钟(RTC)模块、振荡器和OCXOs的领先制造商，为全球领先的物联网、可穿戴、汽车、工业和医疗应用制造商提供服务。
