XXCBBCNANF-18.000000|18MHz|10PF|10PPM|3225
- 频率：18MHz
- 尺寸：3225
- 应 用： XXCBBCNANF-18.000000|18MHz|10PF|10PPM|3225，台湾泰艺石英晶振公司，典型的3.2x2.5x0.7mm超薄陶瓷包装。8mm宽的胶带和卷轴包装，用于自动组装。紧密公差10ppm可用。汽车-蓝牙，移动电话，GPS-无线局域网，4G/LTE硬盘...
-
-
.jpg)
.jpg)

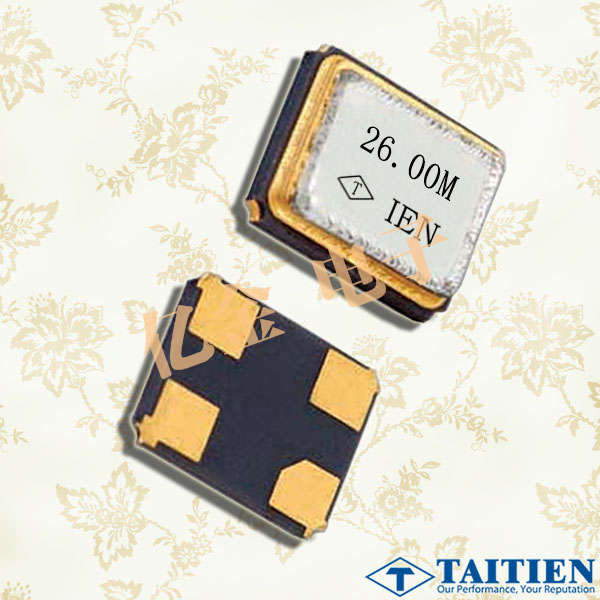

XXCBBCNANF-18.000000|18MHz|10PF|10PPM|3225，台湾泰艺石英晶振公司，

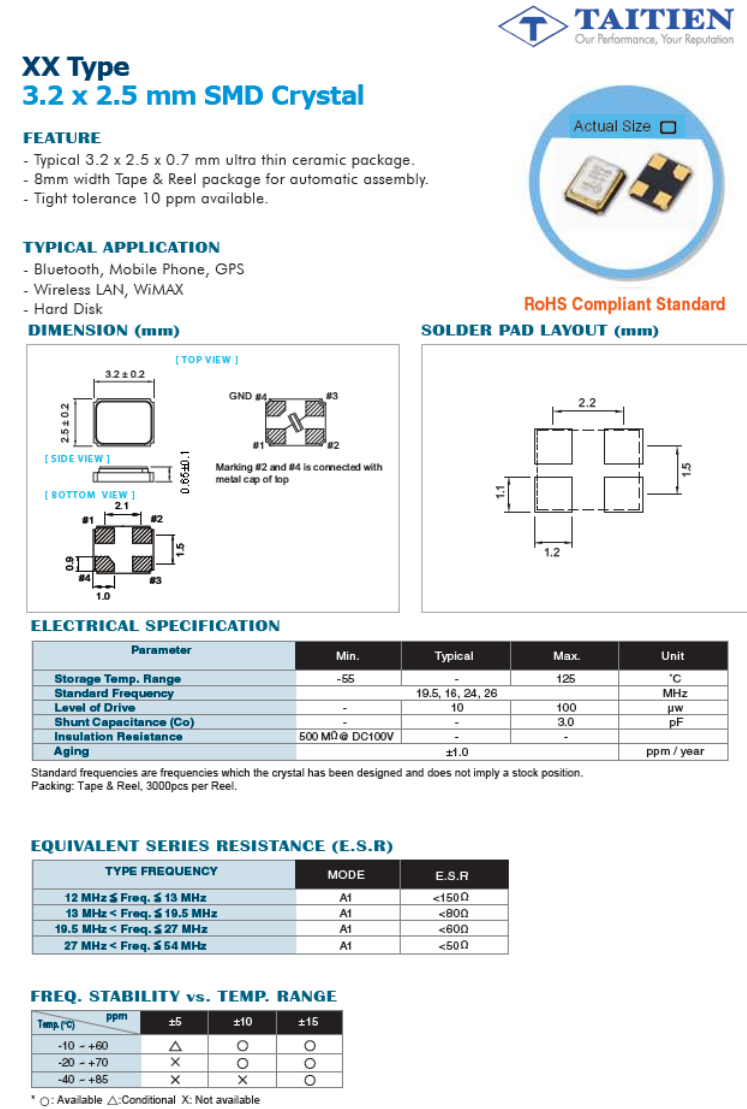

XXCBBCNANF-18.000000|18MHz|10PF|10PPM|3225
| 参数 | 最小值 | 典型的 | 最大值 | Unit |
| 储存温度 | --55 | - | 125 | ℃ |
| 标准频率 | 8.00 | MHz | ||
| 驱动电平 | - | 10 | 20 | uW |
| 并联电容 | - | - | 3.0 | pF |
| 绝缘电阻 | 500M Q @ DC100V | - | - | |
| 老化 | ±1.0 ±3.0 | ppm/year | ||
.jpg)
XXCBBCNANF-18.000000|18MHz|10PF|10PPM|3225
| TAITIEN原厂编码 | 生产厂家 | 型号 | 频率 | 频率稳定度 | 频率偏差 | 负载电容 |
| XXDCCCNANF-12.000000 | Taitien | XX | 12MHz | ±20ppm | ±20ppm | 12pF |
| XXDCCCNANF-12.000000 | Taitien | XX | 12MHz | ±20ppm | ±20ppm | 12pF |
| XXDCCCNANF-12.000000 | Taitien | XX | 12MHz | ±20ppm | ±20ppm | 12pF |
| XXGEGLNANF-25.000000 | Taitien | XX | 25MHz | ±50ppm | ±30ppm | 18pF |
| XXGEGLNANF-25.000000 | Taitien | XX | 25MHz | ±50ppm | ±30ppm | 18pF |
| XXGEGLNANF-25.000000 | Taitien | XX | 25MHz | ±50ppm | ±30ppm | 18pF |
| XXGGGINANF-25.000000 | Taitien | XX | 25MHz | ±50ppm | ±50ppm | 18pF |
| XXGGGINANF-25.000000 | Taitien | XX | 25MHz | ±50ppm | ±50ppm | 18pF |
| XXGGGINANF-25.000000 | Taitien | XX | 25MHz | ±50ppm | ±50ppm | 18pF |
| XXDGHHPANF-20.000000 | Taitien | XX | 20MHz | ±100ppm | ±50ppm | 12pF |
| XXDGHHPANF-20.000000 | Taitien | XX | 20MHz | ±100ppm | ±50ppm | 12pF |
| XXDGHHPANF-20.000000 | Taitien | XX | 20MHz | ±100ppm | ±50ppm | 12pF |
| XXCGGINANF-18.432000 | Taitien | XX | 18.432MHz | ±50ppm | ±50ppm | 10pF |
| XXCGGINANF-18.432000 | Taitien | XX | 18.432MHz | ±50ppm | ±50ppm | 10pF |
| XXCGGINANF-18.432000 | Taitien | XX | 18.432MHz | ±50ppm | ±50ppm | 10pF |
| XXBBBCNANF-16.000000 | Taitien | XX | 16MHz | ±10ppm | ±10ppm | 9pF |
| XXBBBCNANF-16.000000 | Taitien | XX | 16MHz | ±10ppm | ±10ppm | 9pF |
| XXBBBCNANF-16.000000 | Taitien | XX | 16MHz | ±10ppm | ±10ppm | 9pF |
| XXHCCLNANF-25.000000 | Taitien | XX | 25MHz | ±20ppm | ±20ppm | 20pF |
| XXHCCLNANF-25.000000 | Taitien | XX | 25MHz | ±20ppm | ±20ppm | 20pF |
| XXHCCLNANF-25.000000 | Taitien | XX | 25MHz | ±20ppm | ±20ppm | 20pF |
| XXBBBCNANF-26.000000 | Taitien | XX | 26MHz | ±10ppm | ±10ppm | 9pF |
| XXBBBCNANF-26.000000 | Taitien | XX | 26MHz | ±10ppm | ±10ppm | 9pF |
| XXBBBCNANF-26.000000 | Taitien | XX | 26MHz | ±10ppm | ±10ppm | 9pF |
| XXGPPLNANF-20.000000 | Taitien | XX | 20MHz | ±15ppm | ±15ppm | 18pF |
| XXGPPLNANF-20.000000 | Taitien | XX | 20MHz | ±15ppm | ±15ppm | 18pF |
| XXGPPLNANF-20.000000 | Taitien | XX | 20MHz | ±15ppm | ±15ppm | 18pF |
| XXEBCLNANF-40.000000 | Taitien | XX | 40MHz | ±20ppm | ±10ppm | 15pF |
| XXEBCLNANF-40.000000 | Taitien | XX | 40MHz | ±20ppm | ±10ppm | 15pF |
| XXEBCLNANF-40.000000 | Taitien | XX | 40MHz | ±20ppm | ±10ppm | 15pF |
| XXCCCCNANF-25.000000 | Taitien | XX | 25MHz | ±20ppm | ±20ppm | 10pF |
| XXCCCCNANF-25.000000 | Taitien | XX | 25MHz | ±20ppm | ±20ppm | 10pF |
| XXCCCCNANF-25.000000 | Taitien | XX | 25MHz | ±20ppm | ±20ppm | 10pF |
| XXHCECNANF-26.690000 | Taitien | XX | 26.69MHz | ±30ppm | ±20ppm | 20pF |
| XXHCECNANF-26.690000 | Taitien | XX | 26.69MHz | ±30ppm | ±20ppm | 20pF |
| XXHCECNANF-26.690000 | Taitien | XX | 26.69MHz | ±30ppm | ±20ppm | 20pF |
| XXHEGCNANF-25.000000 | Taitien | XX | 25MHz | ±50ppm | ±30ppm | 20pF |
| XXHEGCNANF-25.000000 | Taitien | XX | 25MHz | ±50ppm | ±30ppm | 20pF |
| XXHEGCNANF-25.000000 | Taitien | XX | 25MHz | ±50ppm | ±30ppm | 20pF |
| XXHCCCNANF-25.000000 | Taitien | XX | 25MHz | ±20ppm | ±20ppm | 20pF |
| XXHCCCNANF-25.000000 | Taitien | XX | 25MHz | ±20ppm | ±20ppm | 20pF |
| XXHCCCNANF-25.000000 | Taitien | XX | 25MHz | ±20ppm | ±20ppm | 20pF |
| XXHEECNANF-30.000000 | Taitien | XX | 30MHz | ±30ppm | ±30ppm | 20pF |
| XXHEECNANF-30.000000 | Taitien | XX | 30MHz | ±30ppm | ±30ppm | 20pF |
| XXHEECNANF-30.000000 | Taitien | XX | 30MHz | ±30ppm | ±30ppm | 20pF |
| XXCCEINANF-27.120000 | Taitien | XX | 27.12MHz | ±30ppm | ±20ppm | 10pF |
| XXCCEINANF-27.120000 | Taitien | XX | 27.12MHz | ±30ppm | ±20ppm | 10pF |
| XXCCEINANF-27.120000 | Taitien | XX | 27.12MHz | ±30ppm | ±20ppm | 10pF |
| XXCBBCNANF-24.000000 | Taitien | XX | 24MHz | ±10ppm | ±10ppm | 10pF |
| XXCBBCNANF-24.000000 | Taitien | XX | 24MHz | ±10ppm | ±10ppm | 10pF |
| XXCBBCNANF-24.000000 | Taitien | XX | 24MHz | ±10ppm | ±10ppm | 10pF |
| XXHCELNANF-26.000000 | Taitien | XX | 26MHz | ±30ppm | ±20ppm | 20pF |
| XXHCELNANF-26.000000 | Taitien | XX | 26MHz | ±30ppm | ±20ppm | 20pF |
| XXHCELNANF-26.000000 | Taitien | XX | 26MHz | ±30ppm | ±20ppm | 20pF |
| XXEBBCNANF-40.000000 | Taitien | XX | 40MHz | ±10ppm | ±10ppm | 15pF |
| XXEBBCNANF-40.000000 | Taitien | XX | 40MHz | ±10ppm | ±10ppm | 15pF |
| XXEBBCNANF-40.000000 | Taitien | XX | 40MHz | ±10ppm | ±10ppm | 15pF |
| XXCBPLNANF-25.000000 | Taitien | XX | 25MHz | ±15ppm | ±10ppm | 10pF |
| XXCBPLNANF-25.000000 | Taitien | XX | 25MHz | ±15ppm | ±10ppm | 10pF |
| XXCBPLNANF-25.000000 | Taitien | XX | 25MHz | ±15ppm | ±10ppm | 10pF |
| XXDPBISANF-16.000000 | Taitien | XX | 16MHz | ±10ppm | ±15ppm | 12pF |
| XXDPBISANF-16.000000 | Taitien | XX | 16MHz | ±10ppm | ±15ppm | 12pF |
| XXDPBISANF-16.000000 | Taitien | XX | 16MHz | ±10ppm | ±15ppm | 12pF |
| XXHEELNANF-18.432000 | Taitien | XX | 18.432MHz | ±30ppm | ±30ppm | 20pF |
| XXHEELNANF-18.432000 | Taitien | XX | 18.432MHz | ±30ppm | ±30ppm | 20pF |
