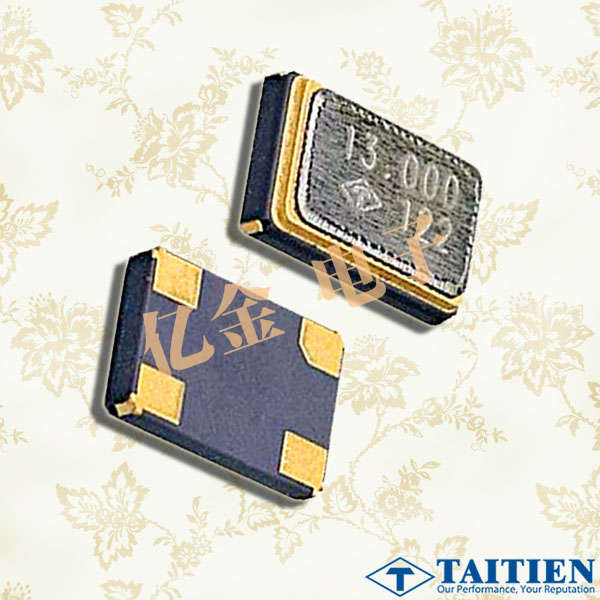

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN
- 频率：8MHz
- 尺寸：5032mm

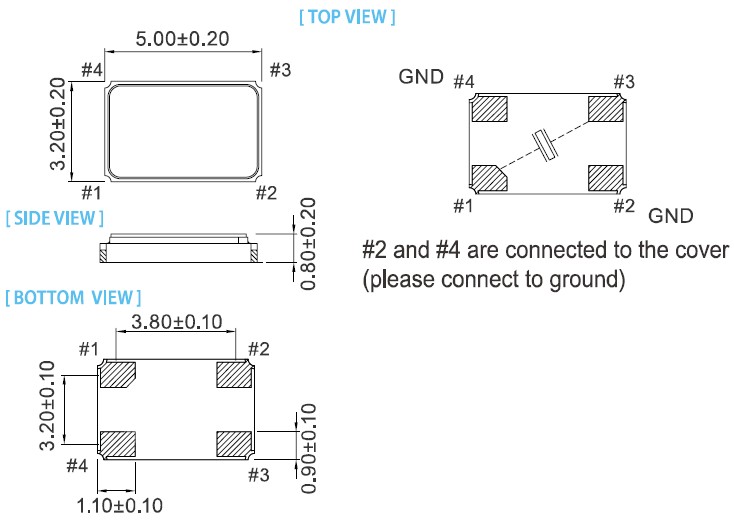

- 应 用： XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN,台湾进口石英晶振,典型的5.0x3.2x0.8mm陶瓷SMD封装。-12mm宽的胶带和卷轴包装，用于自动组装。-紧密公差10ppm可用，蓝牙、GPS显示器、电视（FPD/FTFLCD），计算...
-
-
.jpg)
.jpg)

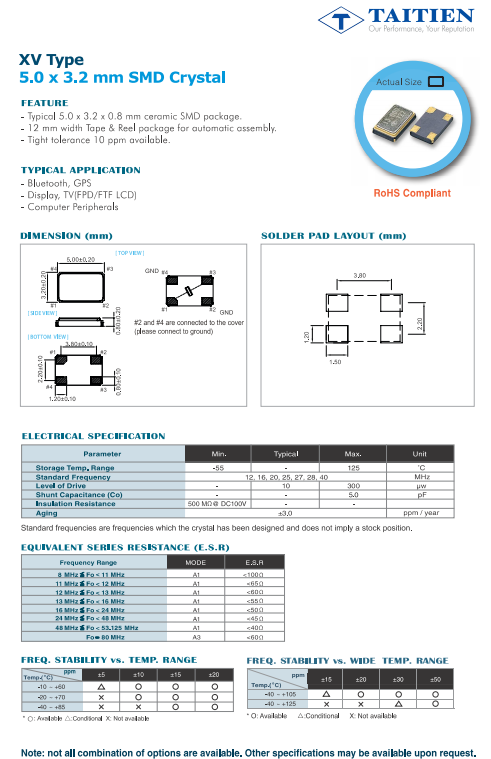

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN,台湾进口石英晶振,典型的5.0 x 3.2 x 0.8 mm陶瓷SMD封装。- 12 mm宽的胶带和卷轴包装，用于自动组装。-紧密公差10 ppm可用，蓝牙、GPS显示器、电视（FPD/FTF LCD），计算机外围设备
XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN
| 参数 | 最小值 | 典型的 | 最大值 | 单位 |
| 工作温度 | --55 | - | 125 | ℃ |
| 频率 | 12, 16, 20, 25, 27, 28, 40 | MHz | ||
| 驱动电平 | - | 10 | 300 | µw |
| 负载电荷 | - | - | 5.0 | pF |
| 绝缘电阻 | 500 M?@ DC100V | - | - | |
| 老化 | ±3.0 | ppm / year | ||
.jpg)
XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN
| TAITIEN原厂编码 | 生产厂家 | 型号 | 频率 | 频率稳定度 | 频率偏差 | 负载电容 |
| XZAEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-48.000000 | Taitien | XZ | 48MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-48.000000 | Taitien | XZ | 48MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-48.000000 | Taitien | XZ | 48MHz | ±30ppm | ±30ppm | 8pF |
| XZLEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-30.000000 | Taitien | XZ | 30MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-30.000000 | Taitien | XZ | 30MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-30.000000 | Taitien | XZ | 30MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-40.000000 | Taitien | XZ | 40MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-40.000000 | Taitien | XZ | 40MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-40.000000 | Taitien | XZ | 40MHz | ±30ppm | ±30ppm | 6pF |
.jpg)
.jpg) |
