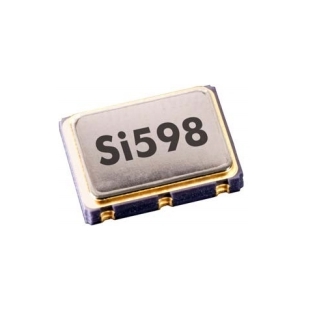

Skyworks晶体,598AAC000112DGR,6G高品质晶振
- 频率：10MHz
- 尺寸：7.0×5.0mm
- 应 用： Skyworks晶体,Si598进口晶振,598AAC000112DGR晶振,LV-PECL差分晶振,有源晶振,石英晶体振荡器,使用集成晶体,提供稳定的低抖动频率合成,引脚和寄存器兼容Si570/571,7050mm晶振,贴片晶振,6G高品质晶振,频率边际应用晶振,...
-
-
Skyworks晶体,598AAC000112DGR,6G高品质晶振,Skyworks晶体,Si598进口晶振,598AAC000112DGR晶振,LV-PECL差分晶振,有源晶振,石英晶体振荡器,使用集成晶体,提供稳定的低抖动频率合成,引脚和寄存器兼容Si570/571,7050mm晶振,贴片晶振,6G高品质晶振,频率边际应用晶振,数字锁相环应用晶振,CPU / FPGA FIFO控制晶振,自适应同步应用晶振.
Skyworks晶体,598AAC000112DGR,6G高品质晶振特点：
•I2C可编程输出频率从10MHz到810MHz
•0.5ps RMS相位抖动
•优越的电源拒绝能力:0.3-0.4 ps附加抖动
•引脚和寄存器兼容Si570/571
•可编程的28万亿分之一的频率分辨率
•集成晶体提供稳定性和低相位噪声
•频率变化到±3500ppm无故障
•具备CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5和1.8 V电源选项
•行业标准的5 × 7mm封装和引脚
•工作温度-40~85°C
Skyworks晶体,598AAC000112DGR,6G高品质晶振规格表
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 10MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 3.3V | |
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -40℃~ +85℃ | |
| 频率稳定性 | f_tol | ±50 ppm | +25℃,超出标准的规格说明请联系我们 |
| 电源电流 | IDD | 130mA Max |
LVPECL
|
| 对称性（占空比） | SYM | 48%~52% | 在输出交叉点 |
| 输出电压 | VOD | 1.9VPP Max |
LVPECL
|
| VO | 1.25V Max | ||
| 输入电压 | VIH | 0.75XVDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降时间 | tr/tf | 350ps Max |
LVPECL
|
| 起始时间 | t str | 10ms Max | |
| 相位抖动 | tpj | 1ps Max |
Differential Formats
|
.jpg)
Skyworks晶体,598AAC000112DGR,6G高品质晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 |
| 598ACA000105DG | Skyworks Solutions Inc. | Si598 | 622.08 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA001653DG | Skyworks Solutions Inc. | Si598 | 90 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000420DG | Skyworks Solutions Inc. | Si598 | 644.53125 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000420DGR | Skyworks Solutions Inc. | Si598 | 644.53125 MHz | LVDS | 3.3V | ±20ppm |
| 598AAC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAC000102DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±50ppm |
| 598FAC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598FAC001431DGR | Skyworks Solutions Inc. | Si598 | 13.5 MHz | LVDS | 2.5V | ±50ppm |
| 598FAC001445DGR | Skyworks Solutions Inc. | Si598 | 13.5 MHz | LVDS | 2.5V | ±50ppm |
| 598BAC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 598FAC000305DGR | Skyworks Solutions Inc. | Si598 | 64 MHz | LVDS | 2.5V | ±50ppm |
| 598BAC000305DGR | Skyworks Solutions Inc. | Si598 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC002153DGR | Skyworks Solutions Inc. | Si598 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 598ABC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598BCC000115DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 598ABB000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000126DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBB000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598MBB000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598AAB000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAB000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598BAB000544DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 598MAB000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 598ABC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598AAC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAC000102DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±50ppm |
| 598FAC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598FAC001431DG | Skyworks Solutions Inc. | Si598 | 13.5 MHz | LVDS | 2.5V | ±50ppm |
| 598FAC001445DG | Skyworks Solutions Inc. | Si598 | 13.5 MHz | LVDS | 2.5V | ±50ppm |
| 598BAC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 598FAC000305DG | Skyworks Solutions Inc. | Si598 | 64 MHz | LVDS | 2.5V | ±50ppm |
| 598BAC002153DG | Skyworks Solutions Inc. | Si598 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000305DG | Skyworks Solutions Inc. | Si598 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 598BCC000115DG | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 598ABB000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBB000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598MBB000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598AAB000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAB000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598BAB000544DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 598MAB000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 598BCB000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598NCB000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598BBC001741DGR | Skyworks Solutions Inc. | Si598 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 598NBC000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBC000482DGR | Skyworks Solutions Inc. | Si598 | 148.35 MHz | LVDS | 3.3V | ±25ppm |
| 598BCB000126DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598NCB000126DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598BBC001741DG | Skyworks Solutions Inc. | Si598 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 598NBC000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBC000482DG | Skyworks Solutions Inc. | Si598 | 148.35 MHz | LVDS | 3.3V | ±25ppm |
| 598ABB000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000252DG | Skyworks Solutions Inc. | Si598 | 187.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000353DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000771DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBB000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 598BBB000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBB000252DG | Skyworks Solutions Inc. | Si598 | 187.5 MHz | LVDS | 3.3V | ±25ppm |
| 598EBB000772DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 2.5V | ±25ppm |
| 598FBB000115DG | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 598MBB000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598MBB000262DG | Skyworks Solutions Inc. | Si598 | 70 MHz | LVPECL | 3.3V | ±25ppm |
| 598ACC000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACC000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACC000199DGR | Skyworks Solutions Inc. | Si598 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000199DGR | Skyworks Solutions Inc. | Si598 | 40 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000320DGR | Skyworks Solutions Inc. | Si598 | 65 MHz | LVDS | 3.3V | ±20ppm |
| 598NCC000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 598ABB000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000252DGR | Skyworks Solutions Inc. | Si598 | 187.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000353DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000771DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBB000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 598BBB000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBB000252DGR | Skyworks Solutions Inc. | Si598 | 187.5 MHz | LVDS | 3.3V | ±25ppm |
| 598EBB000772DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 2.5V | ±25ppm |
| 598FBB000115DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 598MBB000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598MBB000262DGR | Skyworks Solutions Inc. | Si598 | 70 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA000179DGR | Skyworks Solutions Inc. | Si598 | 312.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA000713DGR | Skyworks Solutions Inc. | Si598 | 644 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA001306DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBA001140DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001141DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001681DGR | Skyworks Solutions Inc. | Si598 | 12 MHz | LVDS | 3.3V | ±25ppm |
| 598FBA000164DGR | Skyworks Solutions Inc. | Si598 | 400 MHz | LVDS | 2.5V | ±25ppm |
| 598AAA000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAA000360DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 598EAA000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 598FAA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA000476DGR | Skyworks Solutions Inc. | Si598 | 322.265625 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA001869DGR | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA001870DGR | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±50ppm |
| 598AAA000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAA002089DGR | Skyworks Solutions Inc. | Si598 | 15.437823 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598FAA000115DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA002037DGR | Skyworks Solutions Inc. | Si598 | 138.5 MHz | LVDS | 2.5V | ±50ppm |
| 598SAA000136DGR | Skyworks Solutions Inc. | Si598 | 160 MHz | LVDS | 2.5V | ±50ppm |
| 598BAA002358DGR | Skyworks Solutions Inc. | Si598 | 266.5 MHz | LVDS | 3.3V | ±50ppm |
| 598SAA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598ACC000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACC000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACC000199DG | Skyworks Solutions Inc. | Si598 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000199DG | Skyworks Solutions Inc. | Si598 | 40 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000320DG | Skyworks Solutions Inc. | Si598 | 65 MHz | LVDS | 3.3V | ±20ppm |
| 598NCC000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 598ACB000106DG | Skyworks Solutions Inc. | Si598 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598FCB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±20ppm |
| 598FCB000815DG | Skyworks Solutions Inc. | Si598 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 598MCB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCB000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCB000707DG | Skyworks Solutions Inc. | Si598 | 164 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCB000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598FCB000290DG | Skyworks Solutions Inc. | Si598 | 250 MHz | LVDS | 2.5V | ±20ppm |
| 598FCB000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 2.5V | ±20ppm |
| 598AAA000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAA000360DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 598EAA000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 598FAA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA000476DG | Skyworks Solutions Inc. | Si598 | 322.265625 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA001869DG | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA001870DG | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±50ppm |
| 598AAA000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAA002089DG | Skyworks Solutions Inc. | Si598 | 15.437823 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598FAA000115DG | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA002037DG | Skyworks Solutions Inc. | Si598 | 138.5 MHz | LVDS | 2.5V | ±50ppm |
| 598BAA002358DG | Skyworks Solutions Inc. | Si598 | 266.5 MHz | LVDS | 3.3V | ±50ppm |
| 598SAA000136DG | Skyworks Solutions Inc. | Si598 | 160 MHz | LVDS | 2.5V | ±50ppm |
| 598SAA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598ACB000106DGR | Skyworks Solutions Inc. | Si598 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598FCB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±20ppm |
| 598FCB000815DGR | Skyworks Solutions Inc. | Si598 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 598MCB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCB000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCB000707DGR | Skyworks Solutions Inc. | Si598 | 164 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCB000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598FCB000290DGR | Skyworks Solutions Inc. | Si598 | 250 MHz | LVDS | 2.5V | ±20ppm |
| 598FCB000126DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 2.5V | ±20ppm |
| 598ABA000179DG | Skyworks Solutions Inc. | Si598 | 312.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA000713DG | Skyworks Solutions Inc. | Si598 | 644 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA001306DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBA001140DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001141DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001681DG | Skyworks Solutions Inc. | Si598 | 12 MHz | LVDS | 3.3V | ±25ppm |
| 598FBA000164DG | Skyworks Solutions Inc. | Si598 | 400 MHz | LVDS | 2.5V | ±25ppm |
| 598BBA000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±25ppm |
| 598FCA000164DG | Skyworks Solutions Inc. | Si598 | 400 MHz | LVDS | 2.5V | ±20ppm |
| 598FCA000179DG | Skyworks Solutions Inc. | Si598 | 312.5 MHz | LVDS | 2.5V | ±20ppm |
| 598FCA000195DG | Skyworks Solutions Inc. | Si598 | 250 MHz | LVDS | 2.5V | ±20ppm |
| 598FCA001043DG | Skyworks Solutions Inc. | Si598 | 645 MHz | LVDS | 2.5V | ±20ppm |
| 598FCA001300DG | Skyworks Solutions Inc. | Si598 | 402.83203 MHz | LVDS | 2.5V | ±20ppm |
| 598MCA001504DG | Skyworks Solutions Inc. | Si598 | 535 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCA001505DG | Skyworks Solutions Inc. | Si598 | 535 MHz | LVPECL | 3.3V | ±20ppm |
| 598RCA000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 2.5V | ±20ppm |
| 598SCA000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA000353DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA000521DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA000771DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA001392DG | Skyworks Solutions Inc. | Si598 | 161.132812 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA001393DG | Skyworks Solutions Inc. | Si598 | 161.132812 MHz | LVDS | 2.5V | ±20ppm |
| 598ACA000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000177DG | Skyworks Solutions Inc. | Si598 | 297 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001974DG | Skyworks Solutions Inc. | Si598 | 161.133 MHz | LVDS | 3.3V | ±20ppm |
| 598FCA000504DG | Skyworks Solutions Inc. | Si598 | 48 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±20ppm |
| 598BCA001741DG | Skyworks Solutions Inc. | Si598 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 598FCA000290DG | Skyworks Solutions Inc. | Si598 | 250 MHz | LVDS | 2.5V | ±20ppm |
| 598BCA000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598FCA001699DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 2.5V | ±20ppm |
| 598BCA000504DG | Skyworks Solutions Inc. | Si598 | 48 MHz | LVDS | 3.3V | ±20ppm |
| 598ABA000133DG | Skyworks Solutions Inc. | Si598 | 500 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA000870DG | Skyworks Solutions Inc. | Si598 | 533.333333 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBA000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA000133DG | Skyworks Solutions Inc. | Si598 | 500 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA000870DG | Skyworks Solutions Inc. | Si598 | 533.333333 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001654DG | Skyworks Solutions Inc. | Si598 | 300.12 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001655DG | Skyworks Solutions Inc. | Si598 | 300.12 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001682DG | Skyworks Solutions Inc. | Si598 | 216 MHz | LVDS | 3.3V | ±25ppm |
| 598EBA000374DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 2.5V | ±25ppm |
| 598EBA000870DG | Skyworks Solutions Inc. | Si598 | 533.333333 MHz | LVPECL | 2.5V | ±25ppm |
| 598FBA000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 2.5V | ±25ppm |
| 598FBA000823DG | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±25ppm |
| 598FBA000870DG | Skyworks Solutions Inc. | Si598 | 533.333333 MHz | LVDS | 2.5V | ±25ppm |
| 598RBA000136DG | Skyworks Solutions Inc. | Si598 | 160 MHz | LVPECL | 2.5V | ±25ppm |
| 598BBA001011DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA002358DG | Skyworks Solutions Inc. | Si598 | 266.5 MHz | LVDS | 3.3V | ±25ppm |
| 598ACA000133DG | Skyworks Solutions Inc. | Si598 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001715DG | Skyworks Solutions Inc. | Si598 | 26 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000163DG | Skyworks Solutions Inc. | Si598 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000383DG | Skyworks Solutions Inc. | Si598 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001204DG | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001707DG | Skyworks Solutions Inc. | Si598 | 322 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001709DG | Skyworks Solutions Inc. | Si598 | 322 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001718DG | Skyworks Solutions Inc. | Si598 | 26 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001719DG | Skyworks Solutions Inc. | Si598 | 26 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001720DG | Skyworks Solutions Inc. | Si598 | 26 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001782DG | Skyworks Solutions Inc. | Si598 | 322.265625 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001783DG | Skyworks Solutions Inc. | Si598 | 322.265625 MHz | LVDS | 3.3V | ±20ppm |
| 598MCA001306DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000105DGR | Skyworks Solutions Inc. | Si598 | 622.08 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000115DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000568DGR | Skyworks Solutions Inc. | Si598 | 350 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000642DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000653DGR | Skyworks Solutions Inc. | Si598 | 161.132812 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000770DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000771DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000856DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000962DGR | Skyworks Solutions Inc. | Si598 | 322.26562 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001134DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001204DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001376DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001377DGR | Skyworks Solutions Inc. | Si598 | 156.257813 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001491DGR | Skyworks Solutions Inc. | Si598 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000303DGR | Skyworks Solutions Inc. | Si598 | 312.5 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000313DGR | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000360DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000391DGR | Skyworks Solutions Inc. | Si598 | 280 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000770DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000795DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000824DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000856DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000896DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001027DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001134DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001135DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001136DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001137DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001138DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001139DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001140DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001141DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001142DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001143DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001144DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001145DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001146DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001147DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001148DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001149DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001150DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001151DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001152DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001153DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001154DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001155DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001156DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001196DGR | Skyworks Solutions Inc. | Si598 | 174.7 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001197DGR | Skyworks Solutions Inc. | Si598 | 174.7 MHz | LVDS | 3.3V | ±20ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://www.hneyq.com
地址：广东省深圳市宝安区新安107国道旁
销售代表
