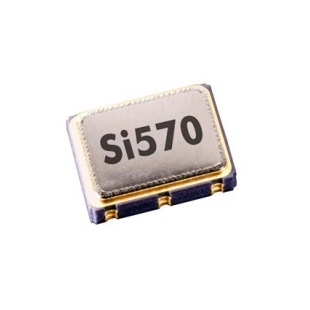

Skyworks晶振,571BAA000522DG,6G数据通信晶振
- 频率：545MHz
- 尺寸：7.0×5.0mm
- 应 用： Skyworks晶振,Si571有源晶振,571BAA000522DG晶振,高频率稳定性晶振,高可靠性晶振,LVDS晶振,差分晶振,7050mm晶振,石英晶体振荡器,进口晶振,贴片晶振,6G数据通信晶振,调制解调器晶振,路由器晶振,网络设备晶振.
-
-
Skyworks晶振,571BAA000522DG,6G数据通信晶振,Skyworks晶振,Si571有源晶振采用Skyworks Solutions先进的DSPLL®电路,在任何频率下提供低抖动时钟,Si571是用户可编程到从10到945 MHz的任何输出频率,并选择频率到1400 MHz,分辨率<1 ppb,该设备通过I2C串行接口编程,不同于传统的VCXO,每个输出频率需要不同的晶体,Si571使用一个固定频率晶体和一个DSPLL时钟合成IC来提供任何频率的工作,这种基于集成电路的方法允许晶体谐振器提供卓越的频率稳定性和可靠性,LVDS晶振,差分晶振,7050mm晶振,6G数据通信晶振,调制解调器晶振,路由器晶振,网络设备晶振.
Skyworks晶振,571BAA000522DG,6G数据通信晶振特点：
•可与任意速率输出频率从10MHz到945MHz和选择频率到1.4 GHz
•I2C串行接口
•第三代DSPLL®具有优越的抖动性能
•频率稳定性优于SAW-based振荡器
•内部固定晶频，可靠性高，老化低
•具备CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5和1.8 V电源选项
•工业标准的5 × 7mm封装和引脚
•无铅，符合RoHS标准
Skyworks晶振,571BAA000522DG,6G数据通信晶振规格表
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 545MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 3.3V | |
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -40℃~ +85℃ | |
| 频率稳定性 | f_tol | ±100 ppm | +25℃,超出标准的规格说明请联系我们 |
| 电源电流 | IDD | 108mA Max |
LVDS
|
| 对称性（占空比） | SYM | 45%~55% | 在输出交叉点 |
| 输出电压 | VOD | 0.9VPP Max |
LVDS
|
| VO | 1.275V Max | ||
| 输入电压 | VIH | 0.75XVDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降时间 | tr/tf | 350ps Max |
LVDS
|
| 起始时间 | t str | 10ms Max | |
| 相位抖动 | tpj | 0.62ps Max |
Differential Formats
|
.jpg)
Skyworks晶振,571BAA000522DG,6G数据通信晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 |
| 571AEA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571BMC000804DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMC000804DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BAA000522DG | Skyworks Solutions Inc. | Si571 | 545 MHz | LVDS | 2.97V ~ 3.63V | ±100ppm |
| 571BBA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±100ppm |
| 571BBA000126DG | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.97V ~ 3.63V | ±100ppm |
| 571BFA000166DG | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571ECA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.25V ~ 2.75V | ±50ppm |
| 571FCA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571FCA000313DG | Skyworks Solutions Inc. | Si571 | 300 MHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571FCA001742DG | Skyworks Solutions Inc. | Si571 | 300 MHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571FDA000113DG | Skyworks Solutions Inc. | Si571 | 311.04 MHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571MDA001661DG | Skyworks Solutions Inc. | Si571 | 496.685652 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571NCA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571SCA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571ACA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000141DG | Skyworks Solutions Inc. | Si571 | 56.32 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000148DG | Skyworks Solutions Inc. | Si571 | 24.576 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000206DG | Skyworks Solutions Inc. | Si571 | 321.4 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000209DG | Skyworks Solutions Inc. | Si571 | 14.1 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000382DG | Skyworks Solutions Inc. | Si571 | 1.375 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001549DG | Skyworks Solutions Inc. | Si571 | 993.409691 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001841DG | Skyworks Solutions Inc. | Si571 | 802.5 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571AFA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571AFA000133DG | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000395DG | Skyworks Solutions Inc. | Si571 | 904.64 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000675DG | Skyworks Solutions Inc. | Si571 | 51.84 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001064DG | Skyworks Solutions Inc. | Si571 | 589.824 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001122DG | Skyworks Solutions Inc. | Si571 | 1.4 GHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001628DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001721DG | Skyworks Solutions Inc. | Si571 | 830 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000164DG | Skyworks Solutions Inc. | Si571 | 400 MHz | LVPECL | 3.3V | ±50ppm |
| 571ADA000233DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 571ADA001971DG | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 3.3V | ±50ppm |
| 571ECA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 571ECA000399DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 571ECA002033DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 571FFA000161DG | Skyworks Solutions Inc. | Si571 | 491.52 MHz | LVDS | 2.5V | ±50ppm |
| 571ADA000106DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 571ACA000106DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 571ADA002143DG | Skyworks Solutions Inc. | Si571 | 444 MHz | LVPECL | 3.3V | ±50ppm |
| 571BDA000115DG | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 571BDA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 571ADA000991DG | Skyworks Solutions Inc. | Si571 | 135 MHz | LVPECL | 3.3V | ±50ppm |
| 571ADA000115DG | Skyworks Solutions Inc. | Si571 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 571BDA000436DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 571BGA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA001666DGR | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000170DGR | Skyworks Solutions Inc. | Si571 | 915 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000278DGR | Skyworks Solutions Inc. | Si571 | 146.52 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000118DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000372DGR | Skyworks Solutions Inc. | Si571 | 800 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001082DGR | Skyworks Solutions Inc. | Si571 | 320 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001118DGR | Skyworks Solutions Inc. | Si571 | 784.247202 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001898DGR | Skyworks Solutions Inc. | Si571 | 102.4 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000118DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000164DGR | Skyworks Solutions Inc. | Si571 | 400 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000179DGR | Skyworks Solutions Inc. | Si571 | 312.5 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000788DGR | Skyworks Solutions Inc. | Si571 | 438 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000804DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571EJA000763DGR | Skyworks Solutions Inc. | Si571 | 1.09 GHz | LVPECL | 2.25V ~ 2.75V | ±20ppm |
| 571FGA000126DGR | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FHA000103DGR | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000466DGR | Skyworks Solutions Inc. | Si571 | 161.733417 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000741DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000742DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000743DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000744DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000745DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571MHA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MJA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MJA000542DGR | Skyworks Solutions Inc. | Si571 | 698.812335 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MMA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571NEA001677DGR | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NHA000399DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NJA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NJA000143DGR | Skyworks Solutions Inc. | Si571 | 117 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NMA000409DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571SHA000115DGR | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571SHA001843DGR | Skyworks Solutions Inc. | Si571 | 1.29948467 GHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571AEA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000133DGR | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000197DGR | Skyworks Solutions Inc. | Si571 | 614.4 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000227DGR | Skyworks Solutions Inc. | Si571 | 980 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000444DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000462DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000467DGR | Skyworks Solutions Inc. | Si571 | 990 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000498DGR | Skyworks Solutions Inc. | Si571 | 825 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000928DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001455DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001677DGR | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001678DGR | Skyworks Solutions Inc. | Si571 | 993.41 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001679DGR | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001680DGR | Skyworks Solutions Inc. | Si571 | 993.41 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001796DGR | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000192DGR | Skyworks Solutions Inc. | Si571 | 647.239 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000239DGR | Skyworks Solutions Inc. | Si571 | 233.639 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000240DGR | Skyworks Solutions Inc. | Si571 | 877.969 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000420DGR | Skyworks Solutions Inc. | Si571 | 644.53125 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000106DGR | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000372DGR | Skyworks Solutions Inc. | Si571 | 800 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000550DGR | Skyworks Solutions Inc. | Si571 | 146.54 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000618DGR | Skyworks Solutions Inc. | Si571 | 437.5 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA001612DGR | Skyworks Solutions Inc. | Si571 | 698.812334 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000137DGR | Skyworks Solutions Inc. | Si571 | 1.024 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000192DGR | Skyworks Solutions Inc. | Si571 | 647.239 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000374DGR | Skyworks Solutions Inc. | Si571 | 200 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000400DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000409DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000512DGR | Skyworks Solutions Inc. | Si571 | 706.25 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001118DGR | Skyworks Solutions Inc. | Si571 | 784.247202 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001212DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001741DGR | Skyworks Solutions Inc. | Si571 | 70.656 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001748DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001757DGR | Skyworks Solutions Inc. | Si571 | 1.024 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001788DGR | Skyworks Solutions Inc. | Si571 | 993.40969 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001789DGR | Skyworks Solutions Inc. | Si571 | 1.0242396 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001863DGR | Skyworks Solutions Inc. | Si571 | 978 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001959DGR | Skyworks Solutions Inc. | Si571 | 873 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000105DGR | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000165DGR | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000166DGR | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000444DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000501DGR | Skyworks Solutions Inc. | Si571 | 1.333 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000788DGR | Skyworks Solutions Inc. | Si571 | 438 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000126DGR | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA001828DGR | Skyworks Solutions Inc. | Si571 | 1.1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001973DGR | Skyworks Solutions Inc. | Si571 | 993 MHz | LVPECL | 3.3V | ±20ppm |
| 571AMA001971DGR | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 3.3V | ±20ppm |
| 571BGA000476DGR | Skyworks Solutions Inc. | Si571 | 322.265625 MHz | LVDS | 3.3V | ±20ppm |
| 571AMA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 571BJA000215DGR | Skyworks Solutions Inc. | Si571 | 27 MHz | LVDS | 3.3V | ±20ppm |
| 571AJA000337DGR | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 571NEA001679DGR | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVDS | 3.3V | ±20ppm |
| 571AEA002238DGR | Skyworks Solutions Inc. | Si571 | 63 MHz | LVPECL | 3.3V | ±20ppm |
| 571NJA000181DGR | Skyworks Solutions Inc. | Si571 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 571BEA002345DGR | Skyworks Solutions Inc. | Si571 | 873.49794 MHz | LVDS | 3.3V | ±20ppm |
| 571AJA002230DGR | Skyworks Solutions Inc. | Si571 | 155.48 MHz | LVPECL | 3.3V | ±20ppm |
| 571BGA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA001666DG | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000170DG | Skyworks Solutions Inc. | Si571 | 915 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000278DG | Skyworks Solutions Inc. | Si571 | 146.52 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000118DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000372DG | Skyworks Solutions Inc. | Si571 | 800 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001082DG | Skyworks Solutions Inc. | Si571 | 320 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001118DG | Skyworks Solutions Inc. | Si571 | 784.247202 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001898DG | Skyworks Solutions Inc. | Si571 | 102.4 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000118DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000164DG | Skyworks Solutions Inc. | Si571 | 400 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000179DG | Skyworks Solutions Inc. | Si571 | 312.5 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000788DG | Skyworks Solutions Inc. | Si571 | 438 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000804DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571EJA000763DG | Skyworks Solutions Inc. | Si571 | 1.09 GHz | LVPECL | 2.25V ~ 2.75V | ±20ppm |
| 571FGA000126DG | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FHA000103DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000466DG | Skyworks Solutions Inc. | Si571 | 161.733417 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000741DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000742DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000743DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000744DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000745DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571MHA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MJA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MJA000542DG | Skyworks Solutions Inc. | Si571 | 698.812335 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MMA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571NEA001677DG | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NHA000399DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NJA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NJA000143DG | Skyworks Solutions Inc. | Si571 | 117 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NMA000409DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571SHA000115DG | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571SHA001843DG | Skyworks Solutions Inc. | Si571 | 1.29948467 GHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571AEA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000133DG | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000197DG | Skyworks Solutions Inc. | Si571 | 614.4 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000227DG | Skyworks Solutions Inc. | Si571 | 980 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000444DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000462DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000467DG | Skyworks Solutions Inc. | Si571 | 990 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000498DG | Skyworks Solutions Inc. | Si571 | 825 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000928DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001455DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001677DG | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001678DG | Skyworks Solutions Inc. | Si571 | 993.41 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001679DG | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001680DG | Skyworks Solutions Inc. | Si571 | 993.41 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001796DG | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000192DG | Skyworks Solutions Inc. | Si571 | 647.239 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000239DG | Skyworks Solutions Inc. | Si571 | 233.639 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000240DG | Skyworks Solutions Inc. | Si571 | 877.969 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000420DG | Skyworks Solutions Inc. | Si571 | 644.53125 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000106DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000372DG | Skyworks Solutions Inc. | Si571 | 800 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000550DG | Skyworks Solutions Inc. | Si571 | 146.54 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000618DG | Skyworks Solutions Inc. | Si571 | 437.5 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA001612DG | Skyworks Solutions Inc. | Si571 | 698.812334 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000137DG | Skyworks Solutions Inc. | Si571 | 1.024 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000192DG | Skyworks Solutions Inc. | Si571 | 647.239 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000374DG | Skyworks Solutions Inc. | Si571 | 200 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000400DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000409DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000512DG | Skyworks Solutions Inc. | Si571 | 706.25 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001118DG | Skyworks Solutions Inc. | Si571 | 784.247202 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001212DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001741DG | Skyworks Solutions Inc. | Si571 | 70.656 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001748DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001757DG | Skyworks Solutions Inc. | Si571 | 1.024 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001788DG | Skyworks Solutions Inc. | Si571 | 993.40969 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001789DG | Skyworks Solutions Inc. | Si571 | 1.0242396 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001863DG | Skyworks Solutions Inc. | Si571 | 978 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001959DG | Skyworks Solutions Inc. | Si571 | 873 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000105DG | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000165DG | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000166DG | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000444DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000501DG | Skyworks Solutions Inc. | Si571 | 1.333 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000788DG | Skyworks Solutions Inc. | Si571 | 438 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000126DG | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA001828DG | Skyworks Solutions Inc. | Si571 | 1.1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001973DG | Skyworks Solutions Inc. | Si571 | 993 MHz | LVPECL | 3.3V | ±20ppm |
| 571AMA001971DG | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 3.3V | ±20ppm |
| 571BGA000476DG | Skyworks Solutions Inc. | Si571 | 322.265625 MHz | LVDS | 3.3V | ±20ppm |
| 571AJA000337DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 571BEA002345DG | Skyworks Solutions Inc. | Si571 | 873.49794 MHz | LVDS | 3.3V | ±20ppm |
| 571BJA000215DG | Skyworks Solutions Inc. | Si571 | 27 MHz | LVDS | 3.3V | ±20ppm |
| 571NJA000181DG | Skyworks Solutions Inc. | Si571 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 571NEA001679DG | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVDS | 3.3V | ±20ppm |
| 571AMA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 571AEA002238DG | Skyworks Solutions Inc. | Si571 | 63 MHz | LVPECL | 3.3V | ±20ppm |
| 571AJA002230DG | Skyworks Solutions Inc. | Si571 | 155.48 MHz | LVPECL | 3.3V | ±20ppm |
| 571EJB000111DG | Skyworks Solutions Inc. | Si571 | 25 MHz | LVPECL | 2.25V ~ 2.75V | ±20ppm |
| 571BFA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571MDA000265DGR | Skyworks Solutions Inc. | Si571 | 1.3 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000133DGR | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000803DGR | Skyworks Solutions Inc. | Si571 | 148.351648 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001211DGR | Skyworks Solutions Inc. | Si571 | 700 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001243DGR | Skyworks Solutions Inc. | Si571 | 900 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001548DGR | Skyworks Solutions Inc. | Si571 | 993.409692 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571AFA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571BDA000282DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA000399DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA000400DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001517DGR | Skyworks Solutions Inc. | Si571 | 433.5 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001606DGR | Skyworks Solutions Inc. | Si571 | 77.76 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001752DGR | Skyworks Solutions Inc. | Si571 | 142.8 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BFA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571MDA000265DG | Skyworks Solutions Inc. | Si571 | 1.3 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000133DG | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000803DG | Skyworks Solutions Inc. | Si571 | 148.351648 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://www.hneyq.com
地址：广东省深圳市宝安区新安107国道旁
销售代表
