SXT83418AA07-28.63636M 28.63636MHz 8038 18PF 50PPM SUNTSU
- 频率：28.63636MHz
- 尺寸：8038
- 应 用： SXT83418AA07-28.63636M28.63636MHz803818PF50PPMSUNTSU，石英贴片晶振，10ppm/10ppm（公差/稳定性），可用的超微型包装切割，基本磁带和卷轴，蓝牙，无线局域网，高密度应用程序。PCMCIA卡，测量仪器，无线应用程序，...
-
-
.jpg)
SXT83418AA07-28.63636M 28.63636MHz 8038 18PF 50PPM SUNTSU，石英贴片晶振，±10ppm/±10ppm（公差/稳定性），可用的超微型包装切割，基本磁带和卷轴，蓝牙，无线局域网，高密度应用程序。PCMCIA卡，测量仪器，无线应用程序，计算机和调制解调器。

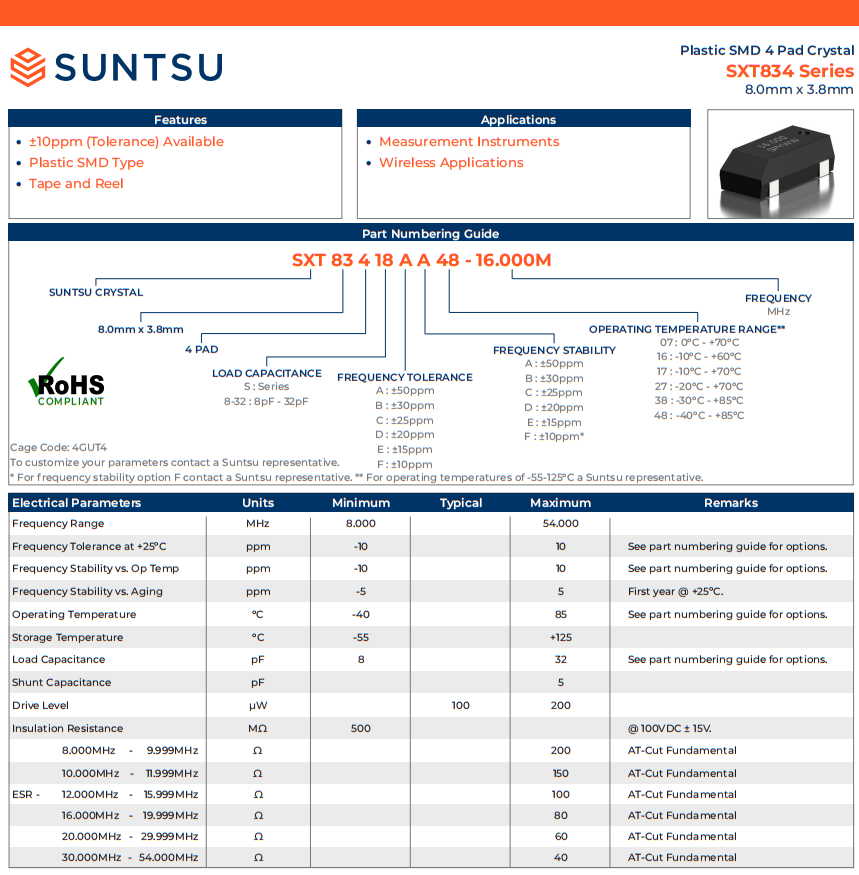

SXT83418AA07-28.63636M 28.63636MHz 8038 18PF 50PPM SUNTSU
| 电气参数 | 单位 | 最小值 | 典型的 | 最大值 | 注意事项 |
| 频率范围 | MHz | 8.000 | 54.000 | ||
| 频率容差at +25ºC | ppm | --10 | 10 | See part numbering guide for options. | |
| 温度下的频率稳定度 | ppm | --10 | 10 | See part numbering guide for options. | |
| 老化 | ppm | --5 | 5 | First year @ +25ºC. | |
| 工作温度 | °C | --40 | 85 | See part numbering guide for options. | |
| 储存温度 | °C | --55 | +125 | ||
| 负载电容 | pF | 8 | 32 | See part numbering guide for options. | |
| 并联电容 | pF | 5 | |||
| 驱动电平 | µW | 100 | 200 | ||
| 绝缘电阻 | M? | 500 | @ 100VDC ± 15V. | ||
| 8.000MHz - 9.999MHz | Ω | 200 | AT-Cut Fundamental | ||
| 10.000MHz - 11.999MHz | ? | 150 | AT-Cut Fundamental | ||
| ESR -12.000MHz - 15.999MHz | ? | 100 | AT-Cut Fundamental | ||
| 16.000MHz - 19.999MHz | ? | 80 | AT-Cut Fundamental | ||
| 20.000MHz - 29.999MHz | ? | 60 | AT-Cut Fundamental | ||
| 30.000MHz - 54.000MHz | ? | 40 | AT-Cut Fundamental |
.jpg)
SXT83418AA07-28.63636M 28.63636MHz 8038 18PF 50PPM SUNTSU
| SUNTSU原厂编码 | 封装尺寸 | 负载电荷 | 频率偏差度 | 频率 |
| SXT83418AA07-18.432M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 18.432M |
| SXT83418AA07-20.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 20.000M |
| SXT83418AA07-22.1184M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 22.1184M |
| SXT83418AA07-24.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 24.000M |
| SXT83418AA07-24.576M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 24.576M |
| SXT83418AA07-25.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 25.000M |
| SXT83418AA07-27.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 27.000M |
| SXT83418AA07-28.63636M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 28.63636M |
| SXT83418AA07-29.4912M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 29.4912M |
| SXT83418AA07-30.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 30.000M |
| SXT83418AA07-32.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 32.000M |
| SXT83418AA07-40.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 40.000M |
| SXT83418AA16-18.432M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 18.432M |
| SXT83418AA16-20.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 20.000M |
| SXT83418AA16-22.1184M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 22.1184M |
| SXT83418AA16-24.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 24.000M |
| SXT83418AA16-24.576M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 24.576M |
| SXT83418AA16-25.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 25.000M |
| SXT83418AA16-27.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 27.000M |
| SXT83418AA16-28.63636M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 28.63636M |
| SXT83418AA16-29.4912M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 29.4912M |
| SXT83418AA16-30.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 30.000M |
| SXT83418AA16-32.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 32.000M |
| SXT83418AA16-40.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 40.000M |
| SXT83418AA17-18.432M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 18.432M |
| SXT83418AA17-20.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 20.000M |
| SXT83418AA17-22.1184M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 22.1184M |
| SXT83418AA17-24.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 24.000M |
| SXT83418AA17-24.576M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 24.576M |
| SXT83418AA17-25.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 25.000M |
| SXT83418AA17-27.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 27.000M |
| SXT83418AA17-28.63636M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 28.63636M |
| SXT83418AA17-29.4912M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 29.4912M |
| SXT83418AA17-30.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 30.000M |
| SXT83418AA17-32.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 32.000M |
| SXT83418AA17-40.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 40.000M |
| SXT83418AA27-18.432M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 18.432M |
| SXT83418AA27-20.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 20.000M |
| SXT83418AA27-22.1184M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 22.1184M |
| SXT83418AA27-24.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 24.000M |
| SXT83418AA27-24.576M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 24.576M |
| SXT83418AA27-25.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 25.000M |
| SXT83418AA27-27.000M | 8.0X3.8 PLASTIC SMD (4 PAD) Crystal | 18pF | ±50ppm | 27.000M |
