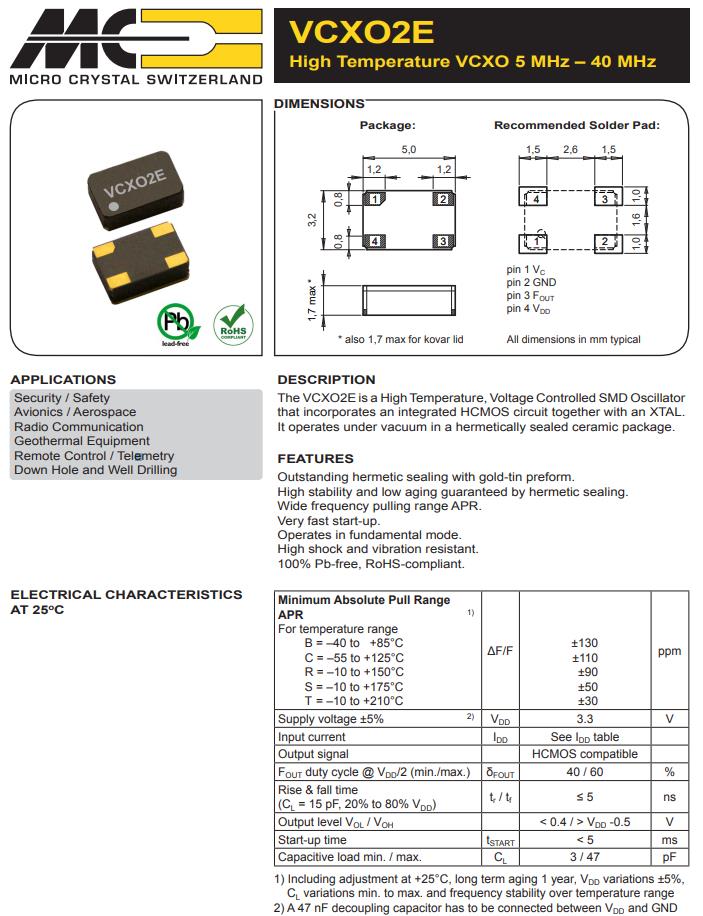

VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators
- 频率：20MHz
- 尺寸：5.0×3.2mm
- 应 用： Micro晶振,VCXO2E压控晶振,有源晶振,VCXO2E-V-C-20.000MHz-T3晶振,VCXO晶振,石英晶体振荡器,5032mm晶振,四脚贴片晶振,SMD晶振,频率20MHz,电压3.3V,工作温度-55~125°C,频率容差110ppm,耐高温晶振,无铅环保晶振,低老化...
-
-
VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators,Micro晶振,VCXO2E压控晶振,有源晶振,VCXO2E-V-C-20.000MHz-T3晶振,VCXO晶振,石英晶体振荡器,5032mm晶振,四脚贴片晶振,SMD晶振,频率20MHz,电压3.3V,工作温度-55~125°C,频率容差110ppm,耐高温晶振,无铅环保晶振,低老化晶振,地热设备晶振,航空电子晶振,无线电通信晶振,井下和钻井应用晶振.
VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators特点：
•卓越的密封与金-锡预制
•高稳定性，低老化，密封保证
•宽频率牵引范围APR
•非常快的启动
•在基本模式下运行
•高抗冲击和抗振动
•100%不含铅，符合RoHS标准
VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators规格表
| Standard Frequency | FL | 20 | MHz |
| Supply voltage ±5% | VDD | 3.3 | V |
| Frequency tolerance | ΔF/F | ±110 | ppm |
| Input Current | IDD |
< 5
|
mA |
| Output signal | HCMOS compatible | ||
| FOUT duty cycle @ VDD/2 (min./max.) | δFOUT | 40 / 60 | % |
|
Rise & fall time
(CL = 15 pF, 20% to 80% VDD)
|
tr / tf | ≤ 5 | ns |
|
Output level VOL / VOH
|
|
< 0.4 / > VDD -0.5
|
V |
| Start-up time | tSTART | < 5 | ms |
|
Capacitive load min. / max
|
CL
|
3 / 47
|
pF |
| Storage temperature range | T_stg | −65~+125 | °C |
| Operating temperature range | T_use | −55~+125 | °C |
| Shock resistance | 10000 g, 0.3 ms, ½ sine | ||
| Vibration resistance | 80 g / 10–2000 Hz | ||
| Lid |
Ceramic Lid
(Kovar Lid on T range version)
|
||
| Terminations (Option ) |
SnAgCu solder dipped pads (T3)
|
.jpg)

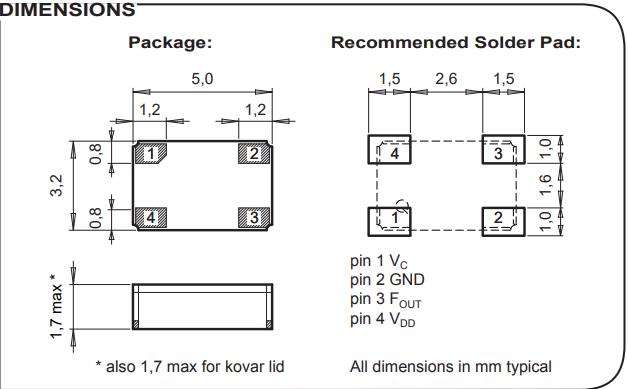

VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators尺寸图
.jpg)
.jpg)
