微晶晶振|OM-7605-C9-20ppm-TA-QC|KHZ OSCILLATORS
- 频率：32.768KHz
- 尺寸：1.6×1.0mm
- 应 用： 微晶晶振,OM-7605-C9有源晶振,石英晶体振荡器,OM-7605-C9-20ppm-TA-QC晶振,1610mm晶振,SMD晶振,贴片石英晶振,四脚晶振,频率32.768KHz,电压1.6~5.5V,工作温度-40~85°C,频率容差20ppm,超小尺寸晶振,高可靠性晶振,低功耗...
-
-
微晶晶振|OM-7605-C9-20ppm-TA-QC|KHZ OSCILLATORS,微晶晶振,OM-7605-C9有源晶振,石英晶体振荡器,OM-7605-C9-20ppm-TA-QC晶振,1610mm晶振,SMD晶振,贴片石英晶振,四脚晶振,频率32.768KHz,电压1.6~5.5V,工作温度-40~85°C,频率容差20ppm,超小尺寸晶振,高可靠性晶振,低功耗晶振,物联网晶振,可穿戴设备晶振,笔记本电脑晶振,无线通信晶振.
微晶晶振|OM-7605-C9-20ppm-TA-QC|KHZ OSCILLATORS特点：
•宽电源电压范围
•非常低的功耗
•CLKOUT启用/禁用
•超小尺寸，低轮廓，重量轻(3.1毫克)
•高抗冲击和抗振动
•100%不含铅，符合rohs标准
•具备AEC-Q200汽车资质
微晶晶振|OM-7605-C9-20ppm-TA-QC|KHZ OSCILLATORS规格表
|
Standard Frequency
|
FL | 32.768 | KHz |
|
Supply voltage
|
VDD
|
1.6~5.5 | V |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Current consumption (typ./max.)
|
IDD
|
0.45 / 0.65
|
µA
|
|
Duty cycle (min./max.)
|
|
40 / 60
|
% |
|
Start up time (max.)
|
tstart
|
0.5
|
S
|
|
Voltage coefficient (max.)
|
|
±3
|
ppm/V
|
|
Aging first year max. @ 25°C
|
ΔF/F
|
±3
|
ppm
|
|
Turnover temperature (typ.)
|
T0
|
25 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/ °C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TA Operating temperature range
|
T_use | −40~+85 | °C |
|
Shock resistance
|
5000 g, 0.3 ms, ½ sine
|
||
|
Vibration resistance
|
20 g / 10–2000 Hz
|
.jpg)

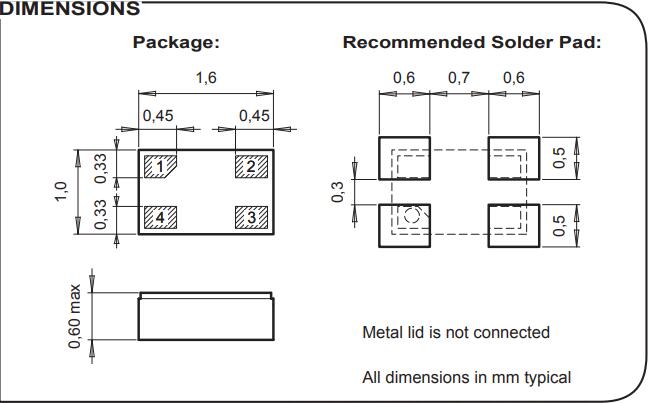

微晶晶振|OM-7605-C9-20ppm-TA-QC|KHZ OSCILLATORS尺寸图
.jpg)
