OM-7605-C8-20ppm-TA-QC|32.768K贴片晶振|6G基站晶振
- 频率：32.768KHz
- 尺寸：2.0×1.2mm
- 应 用： 瑞士微晶晶振,OM-7605-C8有源晶振,OM-7605-C8-20ppm-TA-QC晶振,32.768K贴片晶振,低频SMT振荡器,2012mm晶振,超小型贴片晶振,电压3.3V,工作温度-40~85°C,高抗冲击晶振,抗振动晶振,低功耗晶振,6G基站晶振,可穿戴设备晶振...
-
-
.jpg)
OM-7605-C8-20ppm-TA-QC|32.768K贴片晶振|6G基站晶振 ,瑞士微晶晶振,OM-7605-C8有源晶振,OM-7605-C8-20ppm-TA-QC晶振,32.768K贴片晶振,低频SMT振荡器,2012mm晶振,超小型晶振,电压3.3V,工作温度-40~85°C,高抗冲击晶振,抗振动晶振,低功耗晶振,6G基站晶振,可穿戴设备晶振,笔记本电脑晶振,工业设备晶振,汽车音响控制器晶振.
OM-7605-C8-20ppm-TA-QC|32.768K贴片晶振|6G基站晶振特点：
宽电源电压范围
非常低的功耗
CLKOUT启用/禁用
小尺寸，低轮廓，重量轻(5.1毫克)
高抗冲击和抗振动
100%不含铅，符合RoHS标准
具备AEC-Q200汽车资质

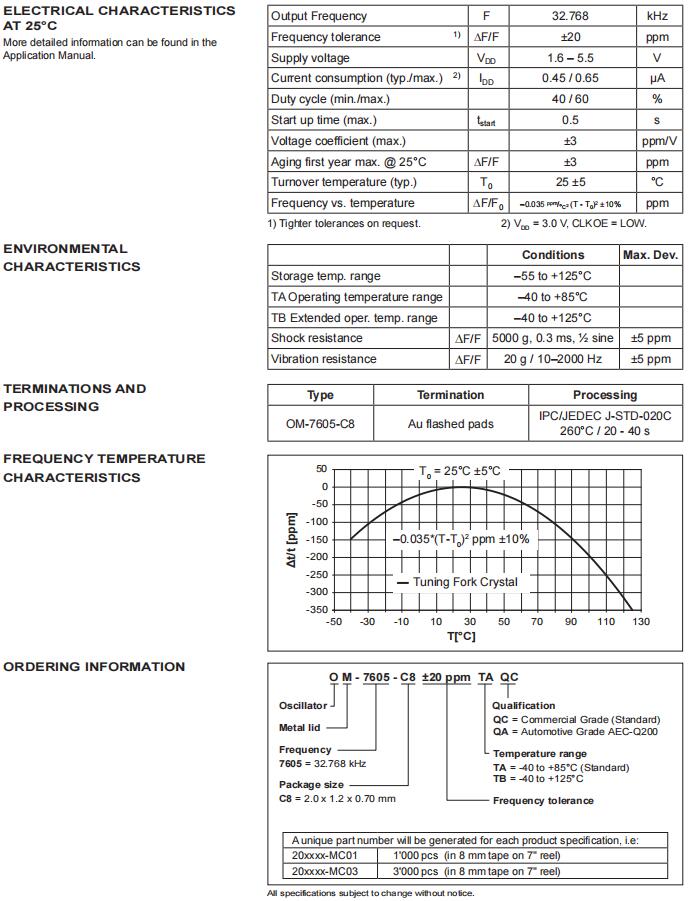

OM-7605-C8-20ppm-TA-QC|32.768K贴片晶振|6G基站晶振规格表
| 标准频率 | FL | 32.768 | KHz |
| 负载 | CL | 12.5 | pF |
| 频率容差 | ΔF/F | ±20 | ppm |
| 电源电压 | VDD | 3.3 | V |
| 电流消耗(类型/最大值) | IDD | 0.45 / 0.65 | µA |
| 占空比(最小/最大) | 40 / 60 | % | |
| 储存温度 | T_stg | −55~+125 | °C |
| 工作温度 | T_use | −40~+85 | °C |
| 启动时间（最大） | tstart | 0.5 | S |
| 电压系数(最大值) |
|
±3 |
ppm/V
|
| 老化第一年 | ΔF/F | ±3 | ppm |
|
频率温度稳定性
|
ΔF/F0 | –0.035 ppm/ °C² (T - T0)2 ±10% | ppm |
.jpg)

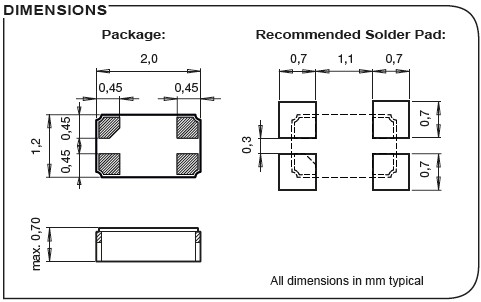

OM-7605-C8-20ppm-TA-QC|32.768K贴片晶振|6G基站晶振尺寸图
.JPG)
| 制造商零件编号 | 制造商 | 描述 | 产品类型 |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C | Crystals |
| CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals |
| CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR | Crystals |
| CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C | Crystals |
| CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 | Crystals |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro 晶振 | 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals |
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro 晶振 | 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro 晶振 | 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro 晶振 | 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C | Crystals |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C | Crystals |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | Micro 晶振 | 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C | Crystals |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro 晶振 | 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C | Crystals |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro 晶振 | 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals |
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro 晶振 | 晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals |
| CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC | Micro 晶振 | 晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://www.hneyq.com
地址：广东省深圳市宝安区新安107国道旁
销售代表
