首页欧美晶振微晶晶振OM-0100-C8-100ppm-TA-QC|2012mm超小型晶振|6G以太网晶振

OM-0100-C8-100ppm-TA-QC|2012mm超小型晶振|6G以太网晶振

频率：100KHz

尺寸：2.0×1.2mm

应　用： 瑞士微晶晶振,OM-0100-C8有源晶振,OM-0100-C8-100ppm-TA-QC晶振,2012mm超小型晶振,石英晶体振荡器,CMOS输出晶振,频率100KHz,电压3.3V,工作温度-40~85°C,频率稳定性100ppm,耐高温晶振,低老化晶振,6G以太网晶振,可穿戴...

OM-0100-C8-100ppm-TA-QC|2012mm超小型晶振|6G以太网晶振,瑞士微晶晶振,OM-0100-C8有源晶振,OM-0100-C8-100ppm-TA-QC晶振,2012mm超小型晶振,石英晶体振荡器,CMOS输出晶振,频率100KHz,电压3.3V,工作温度-40~85°C,频率稳定性100ppm,耐高温晶振,低老化晶振,6G以太网晶振,可穿戴设备晶振,便携式设备晶振,物联网晶振.

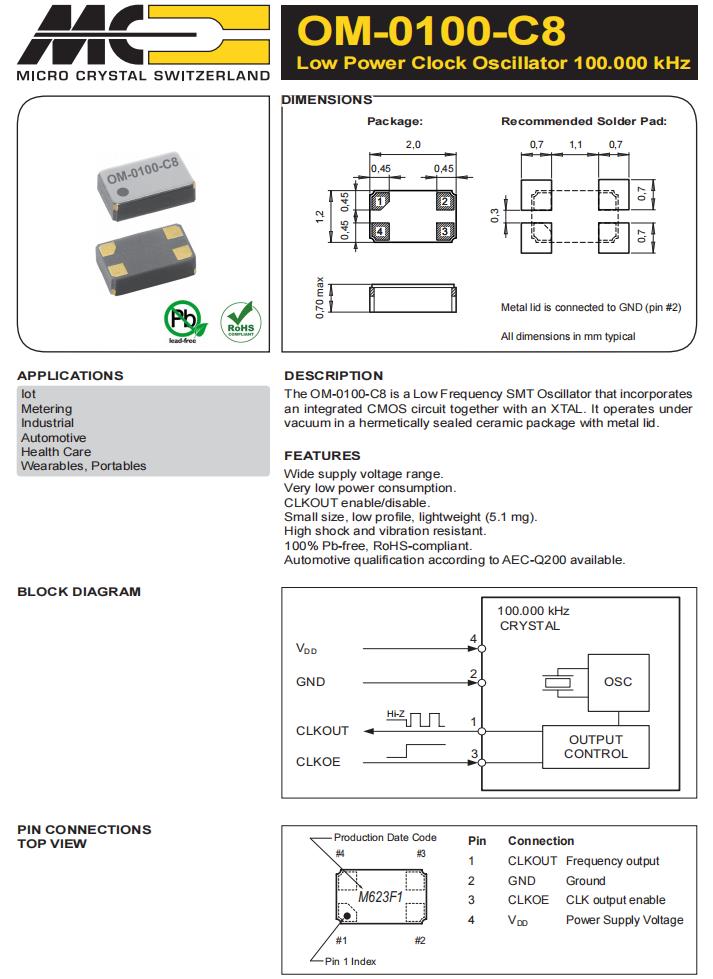

OM-0100-C8-100ppm-TA-QC|2012mm超小型晶振|6G以太网晶振 特点：
-宽电源电压范围
-非常低的功耗
-CLKOUT使能/禁用
-小尺寸，低姿态，重量轻(5.1毫克)
-高抗冲击和振动
-100%无铅，符合RoHS标准
-提供符合AEC-Q200的汽车认证

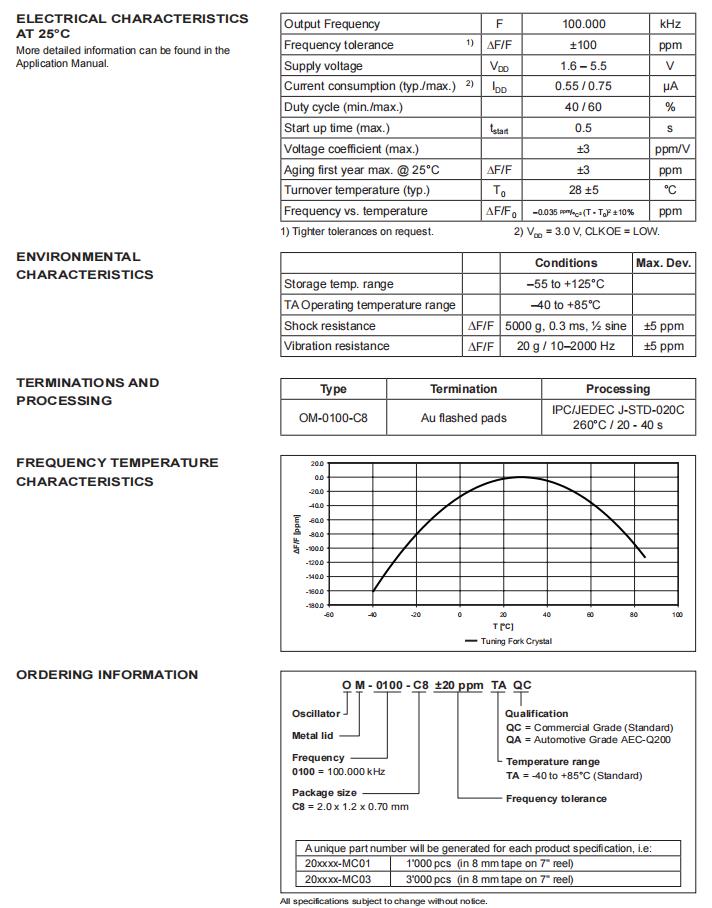

OM-0100-C8-100ppm-TA-QC|2012mm超小型晶振|6G以太网晶振规格表

标准频率 FL 100 KHz

频率容差 ΔF/F ±100 ppm

电源电压 VDD 3.3 V

电流消耗(典型/最大值) IDD 0.55 / 0.75 µA

储存温度 T_stg −55~+125 °C

工作温度 T_use −40~+85 °C

启动时间（最大） tstart 0.5 S

周转温度(典型值） T0 28 ±5 °C

老化第一年 ΔF/F ±3 ppm

频率温度稳定性
ΔF/F0 –0.035 ppm/ °C² (T - T0)2 ±10% ppm

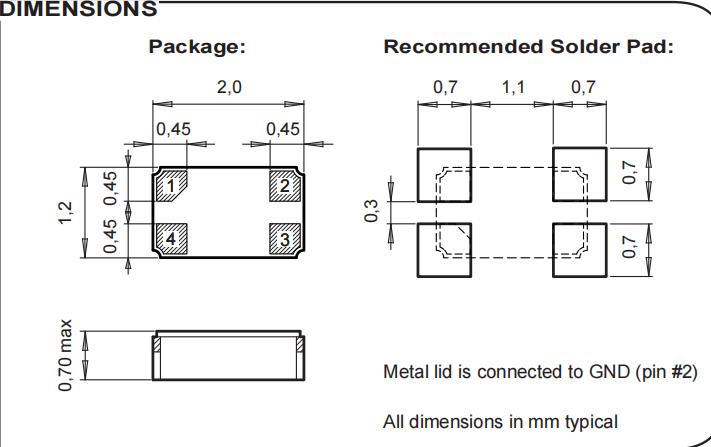

OM-0100-C8-100ppm-TA-QC|2012mm超小型晶振|6G以太网晶振尺寸图

制造商零件编号制造商描述产品类型

MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals

CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals

MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals

CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals

CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals

CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals

CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals

MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals

MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals

CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals

CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals

CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals

MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C Crystals

CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals

CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals

CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals

MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals

CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals

CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals

CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR Crystals

CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR Crystals

CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals

CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro 晶振晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 Crystals

CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals

CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro 晶振晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C Crystals

CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals

CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals

CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals

CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals

CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro 晶振晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR Crystals

CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals

CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals

CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals

CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals

CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro 晶振晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals

CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals

CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals

CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals

CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals

CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals

CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals

CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals

CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals

CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals

CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals

CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm Crystals

CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm Crystals

CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm Crystals

CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals

CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals

CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals

CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals

CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals

CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C Crystals

MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals

MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals

CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals

CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals

CM7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals

CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals

CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C Crystals

CC7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals

CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C Crystals

CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals

CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals

CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals

CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C Crystals

CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals

CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals

CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA Micro 晶振晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR Crystals

CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals

CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC Micro 晶振晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C Crystals

CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals

CC7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals

CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro 晶振晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C Crystals

CM7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals

CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals

CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals

CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals

CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals

CM7V-T1A-32.768k-6pF-20PPM-TB-QA Micro 晶振晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 Crystals

MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals

CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC Micro 晶振晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C Crystals

CC4V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals

MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals

CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro 晶振晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C Crystals

CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC Micro 晶振晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C Crystals

CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC Micro 晶振晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C Crystals

CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC Micro 晶振晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C Crystals

CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC Micro 晶振晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C Crystals

CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC Micro 晶振晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C Crystals

CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C Crystals

CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals

CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals

CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC Micro 晶振晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C Crystals

CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC Micro 晶振晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C Crystals

CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC Micro 晶振晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C Crystals

CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC Micro 晶振晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C Crystals

CC4V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals

CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals

MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au Micro 晶振晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C Crystals

CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals

CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC Micro 晶振晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C Crystals

CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC Micro 晶振晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C Crystals

CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC Micro 晶振晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C Crystals

CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C Crystals

CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C Crystals

CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC Micro 晶振晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C Crystals

CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro 晶振晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C Crystals

CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC Micro 晶振晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C Crystals

CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC Micro 晶振晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C Crystals

公司：深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://www.hneyq.com
地址：广东省深圳市宝安区新安107国道旁

相关产品

标准频率	FL	100	KHz
频率容差	ΔF/F	±100	ppm
电源电压	VDD	3.3	V
电流消耗(典型/最大值)	IDD	0.55 / 0.75	µA
储存温度	T_stg	−55~+125	°C
工作温度	T_use	−40~+85	°C
启动时间（最大）	tstart	0.5	S
周转温度(典型值）	T0	28 ±5	°C
老化第一年	ΔF/F	±3	ppm
频率温度稳定性	ΔF/F0	–0.035 ppm/ °C² (T - T0)2 ±10%	ppm

制造商零件编号	制造商	描述	产品类型
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR	Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-7pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-7pF-100PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C	Crystals
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-7pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C	Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768k-7pF-20PPM-TC-QA	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-9pF-20PPM-TC-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm	Crystals
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm	Crystals
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm	Crystals
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C	Crystals
MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C	Crystals
CC7V-T1A-32.768k-9pF-20PPM-TC-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C	Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR	Crystals
CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C	Crystals
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR	Crystals
CC7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200	Crystals
CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-32.768k-6pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200	Crystals
MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC	Micro 晶振	晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C	Crystals
CC4V-T1A-32.768k-9pF-20PPM-TC-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C	Crystals
CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC	Micro 晶振	晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC	Micro 晶振	晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C	Crystals
CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC	Micro 晶振	晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C	Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC	Micro 晶振	晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC	Micro 晶振	晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C	Crystals
CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C	Crystals
CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC	Micro 晶振	晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C	Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC	Micro 晶振	晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC	Micro 晶振	晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C	Crystals
CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC	Micro 晶振	晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C	Crystals
CC4V-T1A-32.768k-9pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au	Micro 晶振	晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C	Crystals
CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC	Micro 晶振	晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C	Crystals
CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC	Micro 晶振	晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC	Micro 晶振	晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC	Micro 晶振	晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C	Crystals

日韩精品一区二区三区中文在线_日韩精品一区二区在线_日韩精品一区三区_日韩精品一区在线_成年人免费在线看惊悚片动作片_成年人免费在线视频

企业博客

OM-0100-C8-100ppm-TA-QC|2012mm超小型晶振|6G以太网晶振

相关产品
