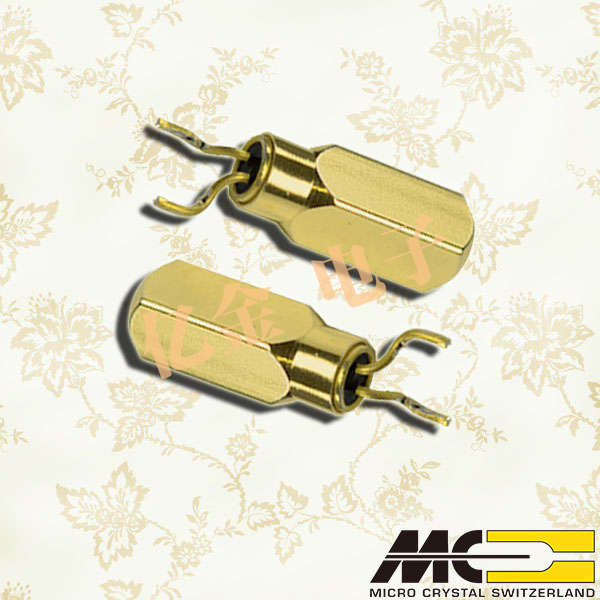

MS1V-T1K-32.768kHz-9.0pF-20ppm-TA-QC|Switzerland MICRO
- 频率：32.768KHz
- 尺寸：2.0×2.0×6.1mm
- 应 用： 瑞士微晶晶振,Micro Crystal,MS1V-T1K贴片石英晶振,无源晶振,MS1V-T1K-32.768kHz-9.0pF-20ppm-TA-QC晶振,2.0 x 2.0 x 6.1 mm晶振,表晶32.768KHz,石英晶体谐振器,贴片晶振,频率32.768KHz,负载9.0pF,工作温度-40~85°C....
-
-
MS1V-T1K-32.768kHz-9.0pF-20ppm-TA-QC|Switzerland MICRO,瑞士微晶晶振,Micro Crystal,MS1V-T1K贴片石英晶振,无源晶振,MS1V-T1K-32.768kHz-9.0pF-20ppm-TA-QC晶振,2.0 x 2.0 x 6.1 mm晶振,表晶32.768KHz,石英晶体谐振器,贴片晶振,频率32.768KHz,负载9.0pF,工作温度-40~85°C,频率容差20ppm,抗冲击晶振,抗振动晶振,无铅环保晶振,便携式设备晶振,测试与测量设备晶振,消费电子产品晶振.
MS1V-T1K-32.768kHz-9.0pF-20ppm-TA-QC|Switzerland MICRO特点：
•密封保证高稳定性
•高抗冲击和抗振动
•经过验证的表面贴装技术包回流焊
•卓越的引线共面性，适用于表面安装
•通过无铅认证
MS1V-T1K-32.768kHz-9.0pF-20ppm-TA-QC|Switzerland MICRO规格表
|
Standard Frequency
|
FL | 32.768 | KHz |
|
Load capacitance
|
CL | 9.0 | pF |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Series resistance typ./max
|
RS | 45/60 | kΩ |
|
Motional capacitance typ.
|
C1
|
2.25 |
fF
|
|
Static capacitance typ.
|
C0
|
0.9 |
pF
|
|
Drive level max.
|
P | 1.0 |
μW
|
|
Insulation resistance min.
|
Ri
|
500 |
MΩ
|
|
Aging first year max.
|
ΔF/F
|
±3
|
ppm |
|
Turnover temperature
|
T0
|
25 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/°C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TA Operating temperature range
|
T_use | −40~+85 | °C |
.jpg)

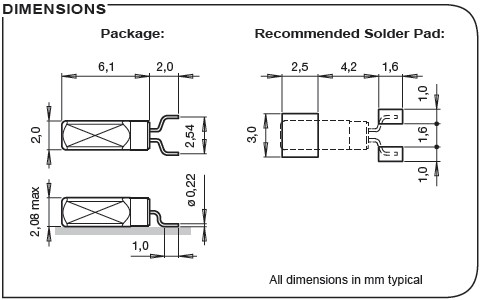

MS1V-T1K-32.768kHz-9.0pF-20ppm-TA-QC|Switzerland MICRO尺寸图
.JPG)
.jpg)
