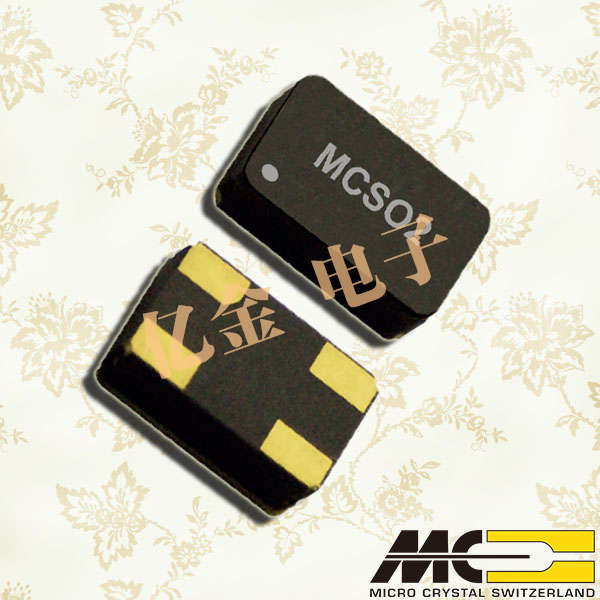

MCSO6-FKVT-B-40.000MHz-E/D-T3|MHZ OSCILLATORS
- 频率：40MHz
- 尺寸：3.5×2.2mm
- 应 用： 欧美进口晶振,微晶晶振,MCS06有源晶振,MHz振荡器,MCSO6-FKVT-B-40.000MHz-E/D-T3晶振,贴片石英晶振,四脚贴片晶振,3.5*2.2mm晶振,频率40MHz,电压3.3V,工作温度-40~85°C,频率容差50ppm,高稳定性晶振,低老化晶振,无铅环...
-
-
MCSO6-FKVT-B-40.000MHz-E/D-T3|MHZ OSCILLATORS,欧美进口晶振,微晶晶振,MCS06有源晶振,MHz振荡器,MCSO6-FKVT-B-40.000MHz-E/D-T3晶振,贴片石英晶振,四脚贴片晶振,3.5*2.2mm晶振,频率40MHz,电压3.3V,工作温度-40~85°C,频率容差50ppm,高稳定性晶振,低老化晶振,无铅环保晶振,安防设备晶振,微处理器晶振,FPGA时钟晶振,无线通讯设备晶振.
MCSO6-FKVT-B-40.000MHz-E/D-T3|MHZ OSCILLATORS特点：
•卓越的密封与金-锡预制
•高稳定性，低老化，密封保证
•非常快的启动
•宽温度范围
•在基本模式下运行
•高抗冲击和抗振动
•100%不含铅，符合RoHS标准

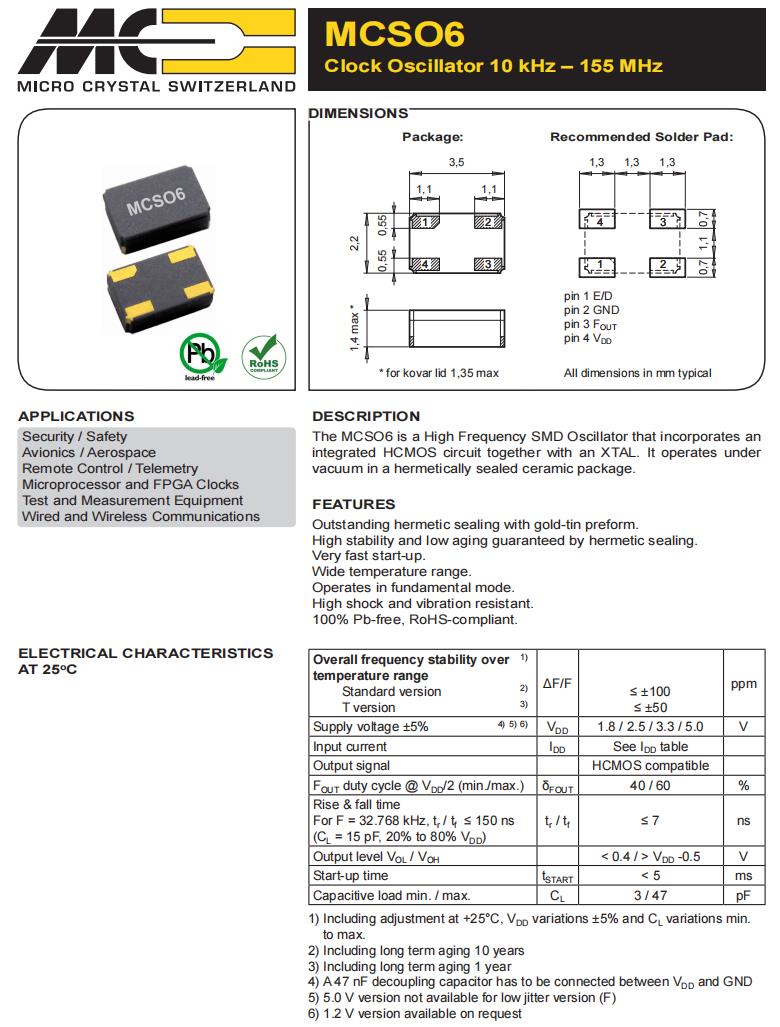

MCSO6-FKVT-B-40.000MHz-E/D-T3|MHZ OSCILLATORS规格表
| Standard Frequency | FL | 40 | MHz |
| Supply voltage ±5% | VDD | 3.3 | V |
| Frequency tolerance | ΔF/F | ±50 | ppm |
| Input Current | IDD | < 30 mA | mA |
| Output signal | HCMOS compatible | ||
| FOUT duty cycle @ VDD/2 (min./max.) | δFOUT | 40 / 60 | % |
|
Rise & fall time For F = 32.768 kHz, tr / tf ≤ 150 ns(CL = 15 pF, 20% to 80% VDD) |
tr / tf | ≤ 7 | ns |
| Output level VOL / VOH | < 0.4 / > VDD -0.5 | V | |
| Start-up time | tSTART | < 5 | ms |
| Capacitive load min. / max | CL | 3 / 47 | pF |
| Storage temperature range | T_stg | −65~+125 | °C |
| Operating temperature range | T_use | −40~+85 | °C |
| Shock resistance | 5000 g, 0.3 ms, ½ sine | ||
| Vibration resistance | 50 g / 10–2000 Hz | ||
| Lid | Kovar lid (K) | ||
| Terminations (Option ) | SnAgCu solder dipped pads (T3) |
.jpg)

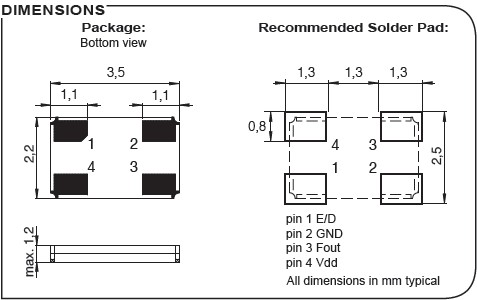

MCSO6-FKVT-B-40.000MHz-E/D-T3|MHZ OSCILLATORS尺寸图
.JPG)
.jpg)
