CM9V-T1A-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL
- 频率：32.768KHz
- 尺寸：1.6×1.0mm
- 应 用： 欧美进口晶振,MICRO晶振,CM9V-T1A无源晶振,石英晶体谐振器,CM9V-T1A-32.768kHz-12.5pF-20ppm-TA-QC晶振,1610mm晶振,二脚贴片晶振,SMD晶振,频率32.768KHz,负载12.5pF,工作温度-40~85°C,频率容差20ppm,高稳定性晶振,无...
-
-
CM9V-T1A-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL,欧美进口晶振,MICRO晶振,CM9V-T1A无源晶振,石英晶体谐振器,CM9V-T1A-32.768kHz-12.5pF-20ppm-TA-QC晶振,1610mm晶振,二脚贴片晶振,SMD晶振,频率32.768KHz,负载12.5pF,工作温度-40~85°C,频率容差20ppm,高稳定性晶振,无铅环保晶振,轻薄小晶振,笔记本电脑晶振,可穿戴设备晶振,物联网晶振,卫生保健晶振.
CM9V-T1A-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL特点：
•超小尺寸(1.6 × 1.0 × 0.50 mm)
•卓越的密封与金-锡预制
•高稳定性，低老化，密封保证
•可扩展工作温度范围
•重量轻(2.4毫克)
•高抗冲击和抗振动
•100%不含铅，符合ROHS标准
•具备AEC-Q200汽车资质

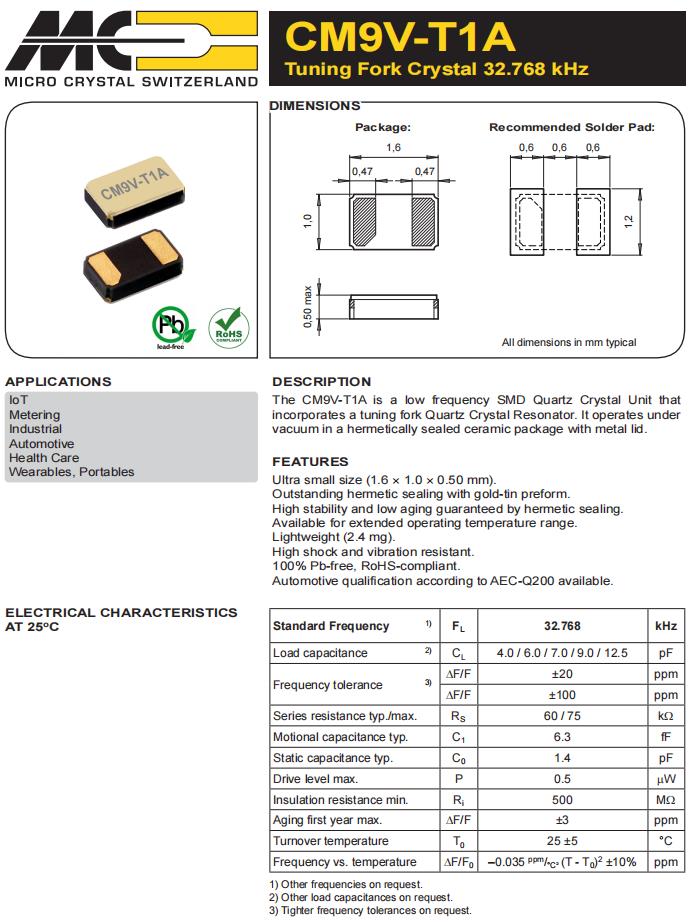

CM9V-T1A-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL规格表
|
Standard Frequency
|
FL | 32.768 | KHz |
|
Load capacitance
|
CL | 12.5 | pF |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Series resistance typ./max
|
RS | 60/75 | kΩ |
|
Motional capacitance typ.
|
C1
|
6.3 |
fF
|
|
Static capacitance typ.
|
C0
|
1.4 |
pF
|
|
Drive level max.
|
P | 0.5 |
μW
|
|
Insulation resistance min.
|
Ri
|
500 |
MΩ
|
|
Aging first year max.
|
ΔF/F
|
±3
|
ppm |
|
Turnover temperature
|
T0
|
25 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/°C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TA Operating temperature range
|
T_use | −40~+85 | °C |
.jpg)

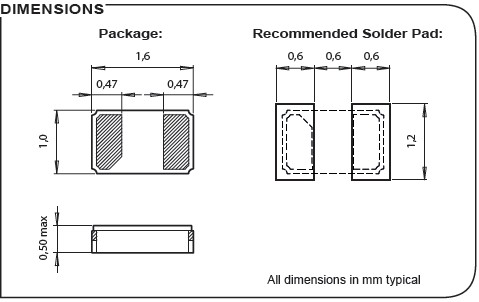

CM9V-T1A-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL尺寸图
.JPG)
.jpg)
