CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振
- 频率：48MHz
- 尺寸：2.0×1.2mm
- 应 用： 微晶晶振,CC8A-T1A石英晶振,无源晶振,CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM晶振,贴片石英晶振,2012mm晶振,SMD晶振,频率48MHz,负载9.0pF,工作温度-40~125°C,频率容差30ppm,小体积晶振,高可靠性晶振,低老化晶振,医疗设...
-
-
CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振,微晶晶振,CC8A-T1A石英晶振,无源晶振,CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM晶振,贴片石英晶振,2012mm晶振,SMD晶振,频率48MHz,负载9.0pF,工作温度-40~125°C,频率容差30ppm,小体积晶振,高可靠性晶振,低老化晶振,医疗设备专用晶振,耳蜗植入设备晶振,心脏监测装置晶振,去纤颤器晶振.
CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振特点：
•安全的氦气环境:陶瓷盖与金-锡预密封，最佳的长期密封性和稳定性
•专有的制造和测试流程
•长期老化稳定性
•工作温度范围:-55℃~ +125℃
•根据客户要求进行特定测试/筛选
•保留组件和生产可追溯性记录
•以基本模式运行
•体积小，外形低，重量轻(4.2毫克)

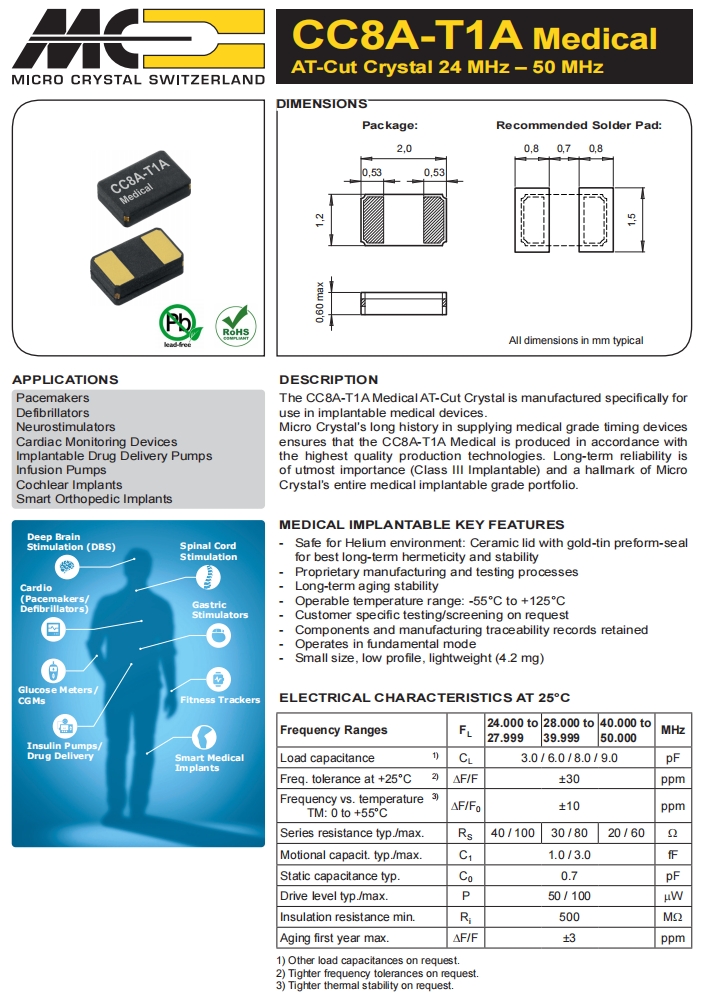

CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振规格表
|
Standard Frequency
|
FL | 48 | MHz |
|
Load capacitance
|
CL | 9.0 | pF |
|
Frequency tolerance at +25°C
|
ΔF/F | ±30 | ppm |
|
Frequency vs. temperature
TM: 0 to +55°C
|
ΔF/F0 | ±10 | ppm |
|
Series resistance typ./max.
|
RS
|
20 / 60
|
Ω |
|
Motional capacit. typ./max.
|
C1
|
1.0 / 3.0
|
fF
|
|
Static capacitance typ.
|
C0
|
0.7
|
pF
|
|
Drive level typ/max.
|
P | 50/100 |
μW
|
|
Insulation resistance min.
|
Ri
|
500 |
MΩ
|
|
Aging first year max.
|
ΔF/F
|
±3
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
Operating temperature range
|
T_use | −40~+125 | °C |
|
Shock resistance
|
5000 g, 0.3 ms, ½ sine
|
||
|
Vibration resistance
|
20 g / 10–2000 Hz
|
.jpg)

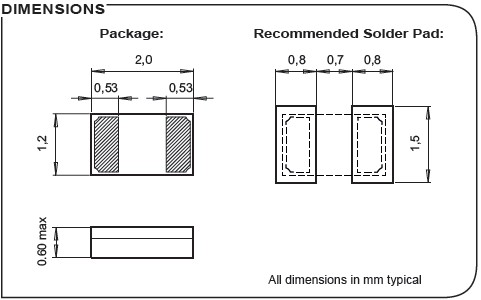

CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振尺寸图
.JPG)
