首页欧美晶振微晶晶振Micro进口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G无线通信晶振

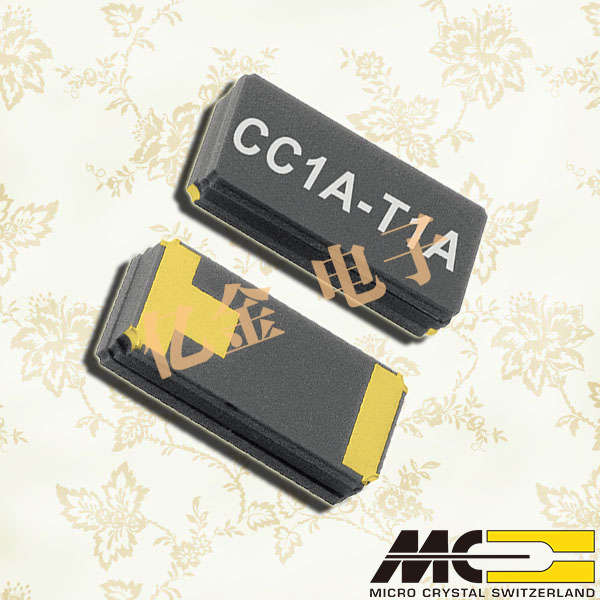

Micro进口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G无线通信晶振

频率：18MHz
尺寸：8.0
应　用： Micro进口晶振,CC1A-T1A无源晶振,CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI晶振,8037mm晶振,贴片石英晶振,频率18MHz,负载20pf,频率稳定性100ppm,工作温度-40~85°C,高稳定性晶振,高抗冲击晶振,6G无线通信晶振,医疗保健...

Micro进口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G无线通信晶振,Micro进口晶振,CC1A-T1A无源晶振,CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI晶振,8037mm晶振,贴片石英晶振,频率18MHz,负载20pf,频率稳定性100ppm,工作温度-40~85°C,高稳定性晶振,高抗冲击晶振,6G无线通信晶振,医疗保健晶振,网络系统晶振,健身设备晶振,电信晶振.
Micro进口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G无线通信晶振特点：
-金锡预制件的出色密封
-密封保证了高稳定性和低老化
-适用于扩展的工作温度范围
-在基本模式下运行
-高抗冲击和振动
-100%无铅，符合RoHS标准

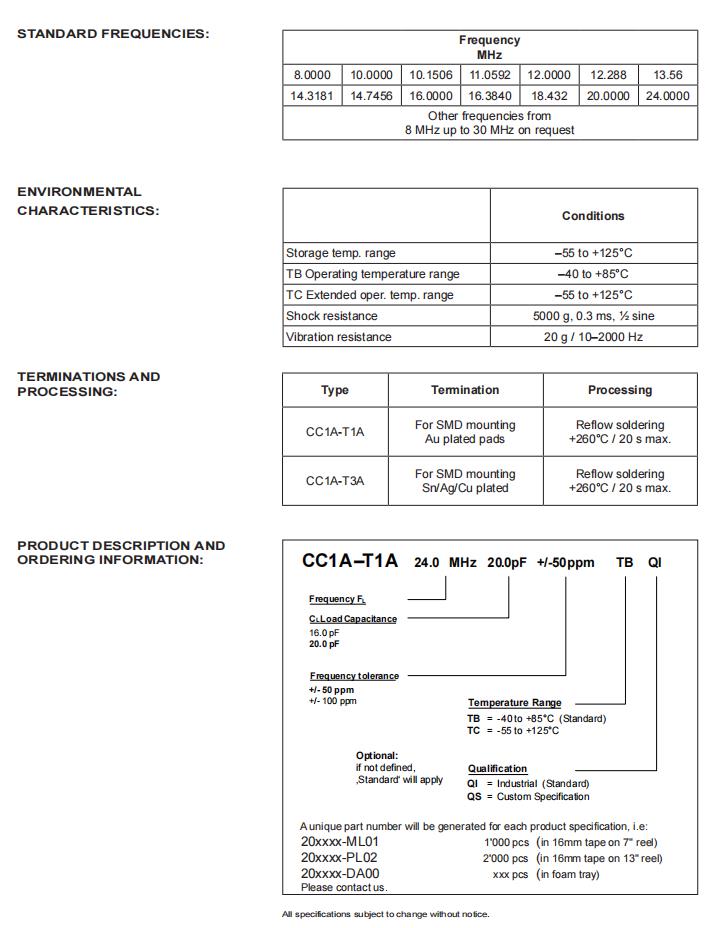

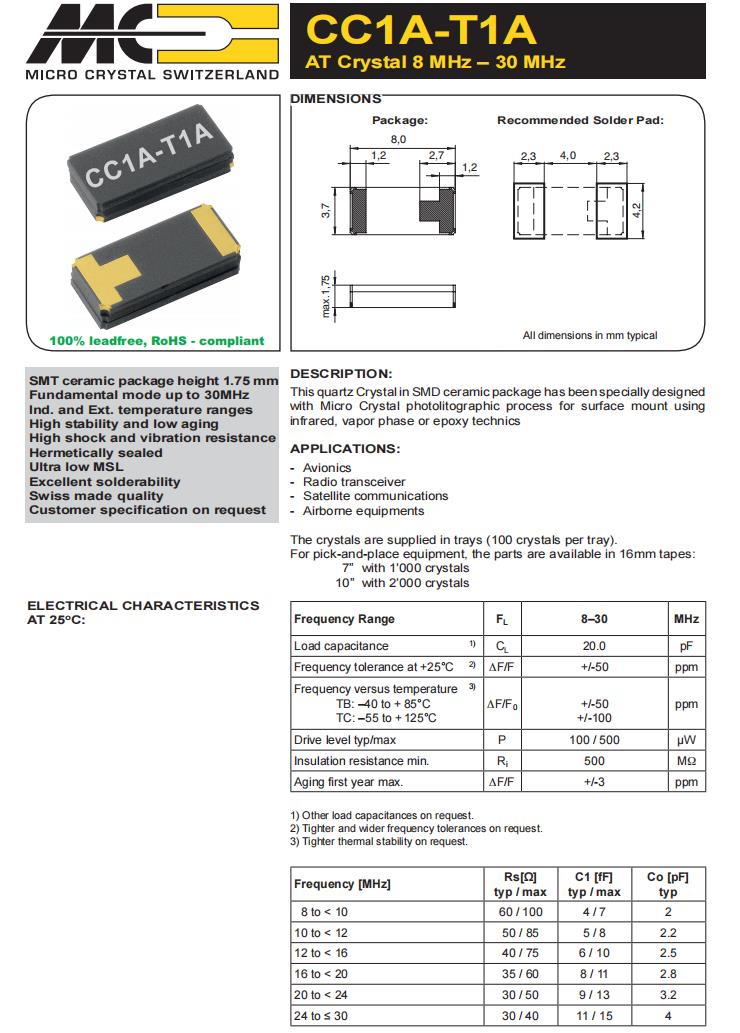

Micro进口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G无线通信晶振规格表

标准频率	FL	18	MHz
负载	CL	20	pF
频率容差	ΔF/F	±100	ppm
频率温度稳定性	ΔF/F0	±100	ppm
储存温度	T_stg	−40~+85	°C
工作温度	T_use	−55~+125	°C
驱动电平典型/最大	P	100/250	μW
最小绝缘电阻	Ri	500	MΩ
老化第一年	ΔF/F	±3	ppm

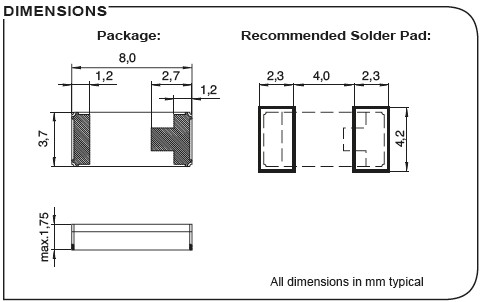

Micro进口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G无线通信晶振尺寸图

制造商零件编号	制造商	描述	产品类型
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
