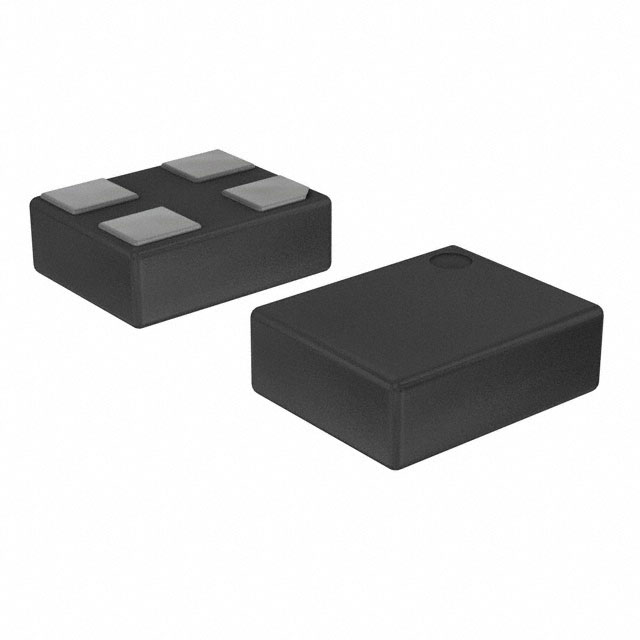

Microchip品牌-DSC6011MA1B-052.0000-6G低功耗晶振
- 频率：52MHz
- 尺寸：2.0×1.6mm
- 应 用： 欧美晶振,Microchip晶振,DSC60X1B石英振荡器,DSC6011MA1B-052.0000晶振,进口有源晶振,2016mm晶振,四脚贴片晶振,频率52MHz,电压3.3V,工作温度-40~125°C,频率稳定性50ppm,耐高温晶振,小体积晶振,低功耗晶振,便携式设备...
-
-
Microchip品牌-DSC6011MA1B-052.0000-6G低功耗晶振,欧美晶振,Microchip晶振,DSC60X1B石英振荡器,DSC6011MA1B-052.0000晶振,进口有源晶振,2016mm晶振,四脚贴片晶振,频率52MHz,电压3.3V,工作温度-40~125°C,频率稳定性50ppm,耐高温晶振,小体积晶振,低功耗晶振,便携式设备晶振,环绕视图摄像头晶振,信息娱乐系统晶振,汽车音响控制器晶振.
Microchip品牌-DSC6011MA1B-052.0000-6G低功耗晶振特点：
•宽频率范围:2 kHz至80 MHz
•超低功耗:1.3 mA/1µA(活动/备用)
•超小足迹
-1.6 mm x 1.2 mm VFLGA
- 2.0 mm x 1.6 mm VFLGA
- 2.5 mm × 2.0 mm VLGA
- 3.2 mm x 2.5 mm VDFN
- 5.0 mm × 3.2 mm VDFN
- 7.0 mm x 5.0 mm VDFN
•频率选择输入支持两个预定义的频率
•高稳定性:±20 ppm，±25 ppm，±50 ppm
•宽温度范围
-汽车:- 40°C至+125°C
-工业外:- 40°C至+105°C
-工业:- 40℃~ +85℃
-外商用:- 20°至+70°C
•卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•电源范围1.71V至3.63V
•样品交货时间短:<2周
•无铅和符合RoHS标准
Microchip品牌-DSC6011MA1B-052.0000-6G低功耗晶振规格表
| 项目 | 规格说明 | 条件 |
| 额定频率 | 52MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V | |
| 储存温度 | -55℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +125℃ | |
| 频率稳定度 | ±50ppm | 包括由初始公差、温度和电源电压引起的频率变化 |
| 老化 | ±5ppm | 1st year @ +25°C |
| 电流 | 1.5µA |
VDD = 3.3V
|
| 负载 | 15pf | |
| 输出逻辑电平高（VOH） |
0.8 x VDD Min
|
Output logic high, RL = 50Ω
|
| 输出逻辑电平低（VOL） | 0.2 x VDD Max |
Output logic low
|
| 输出上升下降时间 | 200ps Max |
20%/80% RL = 50Ω,CL=15pF |
| 占空比 | 45%~55% | |
| 输入逻辑电平高（VIH） | 0.7×VDD Min |
Input logic high
|
| 输入逻辑电平低（VIL） | 0.3x VDD Max |
Input logic low
|
| 起始时间 | 1.5 ms Max |
From 90% VDD to valid clock
output, T = 25°C
|
| 周期抖动 | 18psRMS |
DSC60x1B Std. Drive,FOUT =27 MHz
CL = 10 pF VDD =2.5V/3.3V
|
| 周期对周期抖动 |
90psRMS
|
DSC60x1B Std. Drive,FOUT =27 MHz
CL = 10 pF VDD =2.5V/3.3V
|
.jpg)
Microchip品牌-DSC6011MA1B-052.0000-6G低功耗晶振尺寸图
.jpg)
| 原厂代码 | 晶振品牌 | 型号 | 频率 | 电压 | 尺寸 |
| DSC1124CI5-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104BE2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI2-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-125.0000 | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CE1-010.2400 | Microchip Technology | DSC1124 | 10.24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BI1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124NE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BI2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BI2-125.0000 | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-010.2400T | Microchip Technology | DSC1124 | 10.24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BE2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI1-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104BE2-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104DI1-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI1-156.2500T | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI1-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI1-156.2500 | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124NI1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124NI1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BI2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-125.0000T | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124NE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124CI2-200.0000 | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124NI1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124NI1-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104AI2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124CI2-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-125.0000T | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104BI5-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BI5-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CL2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CL2-200.0000T | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CL2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CL2-200.0000 | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124NL2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104NI2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104NI2-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104DL5-040.0000 | Microchip Technology | DSC1104 | 40MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DL5-040.0000T | Microchip Technology | DSC1104 | 40MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124NL2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124AI1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124AL2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124CI2-048.0000T | Microchip Technology | DSC1124 | 48MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI2-200.0000T | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CE1-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124AI1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124AL2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BI2-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124DI2-100.0050 | Microchip Technology | DSC1124 | 100.005MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-125.0000T | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124AI2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE1-125.0000T | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-050.0000T | Microchip Technology | DSC1124 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2422T | Microchip Technology | DSC1124 | 156.2422MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2578T | Microchip Technology | DSC1124 | 156.2578MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124DE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124DE1-125.0000T | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-125.0000 | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124AI2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE1-125.0000 | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-050.0000 | Microchip Technology | DSC1124 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2422 | Microchip Technology | DSC1124 | 156.2422MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2578 | Microchip Technology | DSC1124 | 156.2578MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124DE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124DE1-125.0000 | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104BE1-156.2500 | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BE1-156.2500T | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104CI2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI2-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104DI5-147.4560 | Microchip Technology | DSC1104 | 147.456MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI5-147.4560T | Microchip Technology | DSC1104 | 147.456MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124BE1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE1-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.3516 | Microchip Technology | DSC1124 | 148.3516MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.3516T | Microchip Technology | DSC1124 | 148.3516MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.5000 | Microchip Technology | DSC1124 | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.5000T | Microchip Technology | DSC1124 | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
