首页欧美晶振 Microchip晶振DSC1121BI2-012.2880-Microchip品牌-6G光纤通道晶振

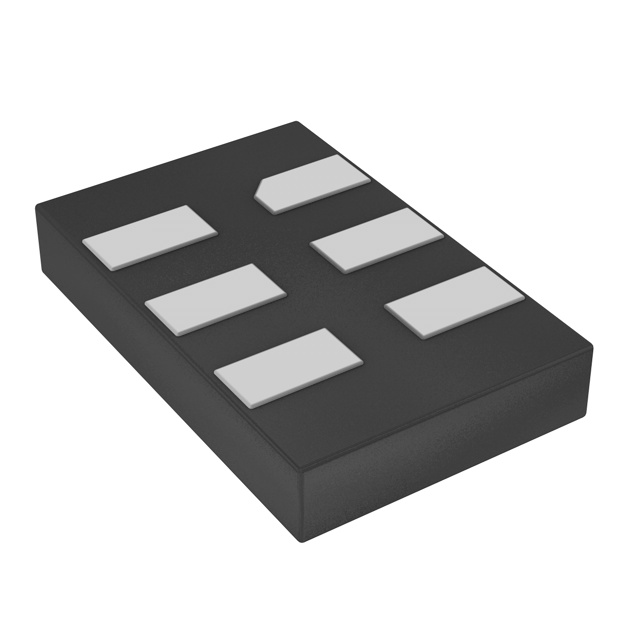

DSC1121BI2-012.2880-Microchip品牌-6G光纤通道晶振

频率：12.288MHz

尺寸：5.0×3.2mm

应　用： Microchip晶振,DSC1121贴片石英晶振,DSC1121BI2-012.2880晶振,进口有源晶振,5032mm晶振,晶体振荡器,SMD晶振,频率12.288MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,抗冲击晶振,抗振动晶振,耐高温晶振,6G光纤通道...

DSC1121BI2-012.2880-Microchip品牌-6G光纤通道晶振,Microchip晶振,DSC1121贴片石英晶振,DSC1121BI2-012.2880晶振,进口有源晶振,5032mm晶振,晶体振荡器,SMD晶振,频率12.288MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,抗冲击晶振,抗振动晶振,耐高温晶振,6G光纤通道晶振,调制解调器晶振,移动通信晶振,光终端设备晶振.
DSC1121BI2-012.2880-Microchip品牌-6G光纤通道晶振特点：
•低有效值相位抖动:<1 ps(类型)
•高稳定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•宽温度范围:
-汽车:- 55°C至+125°C
-Ext.工业:- 40°C至+105°C
-工业:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高电源噪声抑制:-50 dBc
•宽频率范围:2.3 MHz至170 MHz
•小的行业标准足迹
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
•卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•低电流消耗
•电源范围2.25至3.6V
•待机和输出使能功能
•无铅，符合RoHS标准

DSC1121BI2-012.2880-Microchip品牌-6G光纤通道晶振规格表

项目 规格说明 条件

额定频率 12.288MHz 请联系我们以便获取其它可用频率的相关信息

电源电压 3.3V

储存温度 -55℃~+150℃ 裸存

工作温度 -40℃~ +85℃

频率稳定度 ±25ppm 包括由初始公差、温度和电源电压引起的频率变化

老化 ±5ppm 1 year @ +25°C

电流 35mA Max
Output enabled, CL = 15 pF,F0 = 100 MHz

负载 15pf

输出逻辑电平低（Vol） 0.1x VDD  Max
I = ±6 mA

输出逻辑电平高（Voh） 0.9x VDD  Min

输出上升下降时间 2ns Max 20%/80% CL=15pF

占空比 45%~55%

输入逻辑电平高（VIH） 0.75×VDD Min

输入逻辑电平低（VIL） 0.25x VDD  Max

起始时间 5 ms Max T = +25°C

周期抖动 3psRMS
FOUT = 125 MHz

集成相位噪声
2psRMS

12 kHz to 20 MHz @ 125 MHz

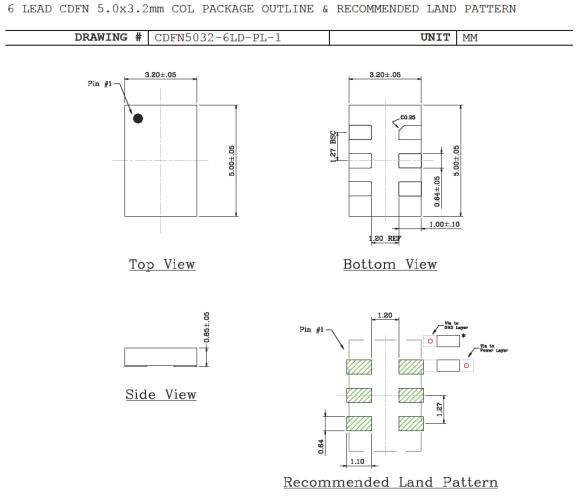

DSC1121BI2-012.2880-Microchip品牌-6G光纤通道晶振尺寸图

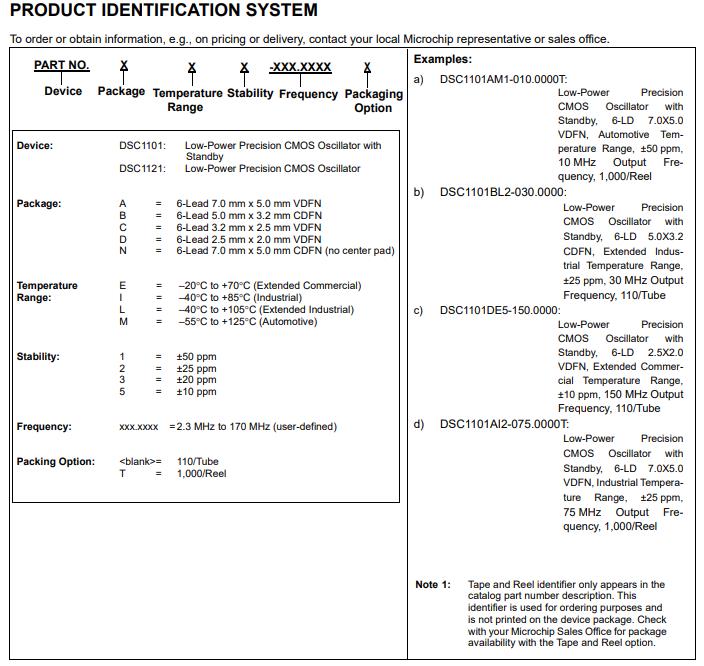

原厂代码晶振品牌型号频率电压尺寸

DSC1121CM2-040.0000 Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DM1-033.3333 Microchip Technology DSC1121 33.3333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121BM1-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-080.0000 Microchip Technology DSC1121 80MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121CI2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121BI2-025.0007 Microchip Technology DSC1121 25.0007MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AE2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CM1-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121AI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CI2-066.6667 Microchip Technology DSC1121 66.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-024.5760 Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-066.6660 Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-020.0000 Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DL2-024.7500T Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-024.7500T Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-024.7500T Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-032.0000T Microchip Technology DSC1121 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-032.0000T Microchip Technology DSC1121 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-032.0000T Microchip Technology DSC1121 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121AI2-020.0000 Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BI2-012.2880 Microchip Technology DSC1121 12.288MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121DI1-026.6000 Microchip Technology DSC1121 26.6MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121CE1-025.0012 Microchip Technology DSC1121 25.0012MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CE5-012.2880 Microchip Technology DSC1121 12.288MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CE5-024.5670 Microchip Technology DSC1121 24.567MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DI5-034.3680 Microchip Technology DSC1121 34.368MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121CE1-133.3333 Microchip Technology DSC1121 133.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121BI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121AI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-004.0000 Microchip Technology DSC1121 4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BE2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BE2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121DI2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI2-011.0590 Microchip Technology DSC1121 11.059MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI2-022.5792 Microchip Technology DSC1121 22.5792MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI2-024.5760 Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI2-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121CI2-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-012.0000T Microchip Technology DSC1121 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-012.2880T Microchip Technology DSC1121 12.288MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-013.0000T Microchip Technology DSC1121 13MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-024.5760T Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-030.0000T Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-051.8400T Microchip Technology DSC1121 51.84MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-060.0000T Microchip Technology DSC1121 60MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-066.6660T Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-031.2500 Microchip Technology DSC1121 31.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-014.7456 Microchip Technology DSC1121 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-014.7456T Microchip Technology DSC1121 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-066.6667T Microchip Technology DSC1121 66.6667MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121BI2-013.0000T Microchip Technology DSC1121 13MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121AI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-029.4912T Microchip Technology DSC1121 29.4912MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BI2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-025.0007T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121AI2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NI2-018.4320 Microchip Technology DSC1121 18.432MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BI2-012.2880T Microchip Technology DSC1121 12.288MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121CE1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CE1-025.0012T Microchip Technology DSC1121 25.0012MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DI1-036.0000T Microchip Technology DSC1121 36MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121CE1-016.0000 Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DI1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121CE1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DI1-026.6000T Microchip Technology DSC1121 26.6MHz 2.25 V ~ 3.6V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121CL2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL2-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL2-024.7500 Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI1-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AE2-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CE2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI1-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI1-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AI1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CE2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DL2-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-008.0000 Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-024.7500 Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-032.0000 Microchip Technology DSC1121 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI5-044.0000 Microchip Technology DSC1121 44MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI5-044.7360 Microchip Technology DSC1121 44.736MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI1-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121CM1-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-016.0000 Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-026.5625 Microchip Technology DSC1121 26.5625MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AM1-030.0000T Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BM1-008.0000 Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-030.0000 Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-030.0000T Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121AM1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BM1-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121CE1-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121BM1-048.0000 Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-010.0000 Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121CE1-133.3333T Microchip Technology DSC1121 133.3333MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI1-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DI2-125.0000B Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DM1-033.3333T Microchip Technology DSC1121 33.3333MHz 2.25 V ~ 3.6V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121AE1-156.2500 Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CI5-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-022.5000 Microchip Technology DSC1121 22.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-040.0000 Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-045.0000 Microchip Technology DSC1121 45MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AE1-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CI5-016.0000 Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-049.1520 Microchip Technology DSC1121 49.152MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121NL1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NL1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CI2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-168.0000 Microchip Technology DSC1121 168MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-115.0000 Microchip Technology DSC1121 115MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-132.0000 Microchip Technology DSC1121 132MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI2-133.3330T Microchip Technology DSC1121 133.333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DM2-003.3333T Microchip Technology DSC1121 3.3333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DM2-007.3728 Microchip Technology DSC1121 7.3728MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121AE2-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE2-156.2500 Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI1-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI5-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BM1-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121AE2-156.2500T Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BE5-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-156.2540T Microchip Technology DSC1121 156.254MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-156.2540 Microchip Technology DSC1121 156.254MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121DI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121BI2-120.0000T Microchip Technology DSC1121 120MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-125.0037T Microchip Technology DSC1121 125.0037MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-150.0000T Microchip Technology DSC1121 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121AI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-150.0000T Microchip Technology DSC1121 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-156.2540T Microchip Technology DSC1121 156.254MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BI2-200.0000T Microchip Technology DSC1121 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-080.0000T Microchip Technology DSC1121 80MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121AI2-148.5000 Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-150.0000 Microchip Technology DSC1121 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CL5-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL5-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL5-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL5-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM2-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM2-062.2080 Microchip Technology DSC1121 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AL2-020.0000 Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AL2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CM2-024.5454 Microchip Technology DSC1121 24.5454MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM2-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AM2-010.0000 Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-024.5760 Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-033.3330 Microchip Technology DSC1121 33.333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-066.6660 Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BM2-007.3728 Microchip Technology DSC1121 7.3728MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121AI5-125.0032 Microchip Technology DSC1121 125.0032MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121BM1-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121CI1-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AE1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CM1-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-075.0000 Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM1-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DM2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121CI5-016.6667 Microchip Technology DSC1121 16.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-016.6667T Microchip Technology DSC1121 16.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AI2-026.0000 Microchip Technology DSC1121 26MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-026.0000T Microchip Technology DSC1121 26MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI5-020.0000 Microchip Technology DSC1121 26MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI5-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121CI5-066.0000 Microchip Technology DSC1121 66MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-117.0000 Microchip Technology DSC1121 117MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-066.0000T Microchip Technology DSC1121 66MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-117.0000T Microchip Technology DSC1121 117MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121AM2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE5-022.5792 Microchip Technology DSC1121 22.5792MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE5-024.5760 Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE5-033.8688 Microchip Technology DSC1121 33.8688MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-010.0000 Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-010.0000C Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-019.4400 Microchip Technology DSC1121 19.4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-019.4400C Microchip Technology DSC1121 19.4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-019.4400T Microchip Technology DSC1121 19.4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-066.6666 Microchip Technology DSC1121 66.6666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-066.6666T Microchip Technology DSC1121 66.6666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI5-019.4400C Microchip Technology DSC1121 19.44MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM1-030.0000 Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BI1-075.0000 Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI1-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-013.0000 Microchip Technology DSC1121 13MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BL2-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BL2-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BL2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BL2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM1-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM5-016.0000 Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM5-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM5-075.0000 Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BM5-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121CI5-080.0000 Microchip Technology DSC1121 80MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-080.0000T Microchip Technology DSC1121 80MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CI5-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL2-033.3333 Microchip Technology DSC1121 33.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL2-033.3333T Microchip Technology DSC1121 33.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CL2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM5-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM5-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM5-040.0000 Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121CM5-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)

DSC1121DI5-010.0000 Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI5-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI5-044.0000T Microchip Technology DSC1121 44MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI5-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DI5-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL5-090.0000 Microchip Technology DSC1121 90MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DL5-090.0000T Microchip Technology DSC1121 90MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DM1-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DM1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DM2-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DM2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DM2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DM2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121DM5-005.0000 Microchip Technology DSC1121 5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)

DSC1121NE2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NE2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NE5-020.0000 Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NE5-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NE5-066.6660 Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NE5-066.6660T Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NE5-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NE5-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NI2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121NI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-012.0000T Microchip Technology DSC1121 12MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-014.3182T Microchip Technology DSC1121 14.3182MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-016.4000T Microchip Technology DSC1121 16.4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-024.5760T Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE1-156.2500T Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE2-025.0000C Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AE2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-003.6864T Microchip Technology DSC1121 3.6864MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-013.0000T Microchip Technology DSC1121 13MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-025.0006T Microchip Technology DSC1121 25.0006MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-062.5000T Microchip Technology DSC1121 62.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-065.5360T Microchip Technology DSC1121 65.536MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-120.0000T Microchip Technology DSC1121 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-125.0032T Microchip Technology DSC1121 125.0032MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-125.0037T Microchip Technology DSC1121 125.0037MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-131.0750T Microchip Technology DSC1121 131.075MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-156.2500T Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-163.8400T Microchip Technology DSC1121 163.84MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-163.8400T-N Microchip Technology DSC1121 163.84MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI2-165.0000T Microchip Technology DSC1121 165MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI5-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AI5-019.4400T Microchip Technology DSC1121 19.44MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM1-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM1-024.5760T Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM1-033.0000T Microchip Technology DSC1121 33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM1-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-014.7456T Microchip Technology DSC1121 14.7456MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121AM2-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)

DSC1121BI1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI1-026.0000T Microchip Technology DSC1121 26MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI1-062.5000T Microchip Technology DSC1121 62.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI1-125.0038T Microchip Technology DSC1121 125.0038MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-066.6666T Microchip Technology DSC1121 66.6666MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-153.6000T Microchip Technology DSC1121 153.6MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI2-156.2539T Microchip Technology DSC1121 156.2539MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

DSC1121BI5-148.3516T Microchip Technology DSC1121 148.3516MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)

公司：深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://www.hneyq.com
地址：广东省深圳市宝安区新安107国道旁

相关产品

项目	规格说明	条件
额定频率	12.288MHz	请联系我们以便获取其它可用频率的相关信息
电源电压	3.3V
储存温度	-55℃~+150℃	裸存
工作温度	-40℃~ +85℃
频率稳定度	±25ppm	包括由初始公差、温度和电源电压引起的频率变化
老化	±5ppm	1 year @ +25°C
电流	35mA Max	Output enabled, CL = 15 pF,F0 = 100 MHz
负载	15pf
输出逻辑电平低（Vol）	0.1x VDD Max	I = ±6 mA
输出逻辑电平高（Voh）	0.9x VDD Min	I = ±6 mA
输出上升下降时间	2ns Max	20%/80% CL=15pF
占空比	45%~55%
输入逻辑电平高（VIH）	0.75×VDD Min
输入逻辑电平低（VIL）	0.25x VDD Max
起始时间	5 ms Max	T = +25°C
周期抖动	3psRMS	FOUT = 125 MHz
集成相位噪声	2psRMS	12 kHz to 20 MHz @ 125 MHz
