Q 0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012
- 频率：32.768KHz
- 尺寸：2012
- 应 用： Q0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012，欧美进口晶振，32.768kHzn回流焊温度：最大260C。n个包装高度，最大0.6mm。SMD调谐叉子晶体2.0x1.2毫米Q0.032768-JTX210-9-20-T3-LF,32.768KHz,20P...
-
-
.jpg)
Q 0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012，欧美进口晶振，32.768 kHz n回流焊温度：最大260°C。n个包装高度，最大0.6 mm。SMD调谐叉子晶体·2.0 x 1.2毫米

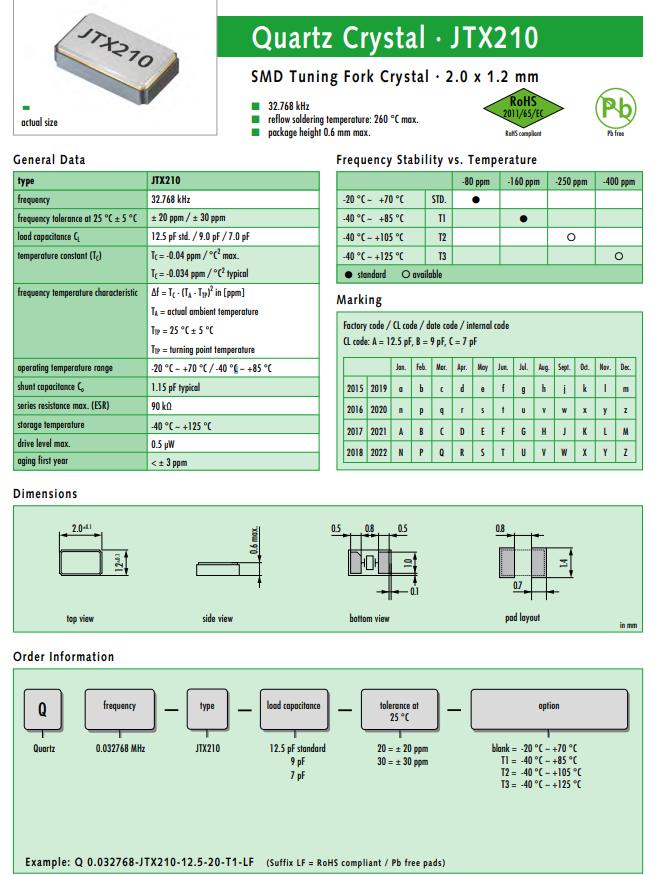

Q 0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012
| type | JTX210 | |
| frequency | 32.768 kHz | |
| frequency tolerance at 25 °C ± 5 °C | ± 20 ppm / ± 30 ppm | |
| load capacitance CL | 12.5 pF std. / 9.0 pF / 7.0 pF | |
| temperature constant (TC) |
TC = -0.04 ppm / °C2 max. TC = -0.034 ppm / °C2 typical |
|
| frequency temperature characteristic |
Δf = TC · (TA - TTP)2 in [ppm] TA = actual ambient temperature TTP = 25 °C ± 5 °C TTP = turning point temperature |
|
| operating temperature range | -20 °C ~ +70 °C / -40 °C ~ +85 °C | |
| shunt capacitance Co | 1.15 pF typical | |
| series resistance max. (ESR) | 90 kΩ | |
| storage temperature | -40 °C ~ +125 °C | |
| drive level max. | 0.5 µW | |
| aging first year | < ± 3 ppm | |
.jpg)
Q 0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012
.jpg)
| JAUCH原厂编码 | 型号 | 频率 | 频率偏差 | 负载电荷 |
| Q 0.032768-JTX310-12.5-20-T1-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX310-12.5-20-T2-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX310-9-20-T1-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 9pF |
| Q 0.032768-JTX310-12.5-20-T3-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | JTX310 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | JTX310 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX310-7-20-T1-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 7pF |
| Q 0.032768-JTX310-9-20-T2-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 9pF |
| Q 0.032768-JTX310-7-20-T2-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 7pF |
| Q 0.032768-JTX310-9-20-T3-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 9pF |
| Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | JTX310 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX310-7-20-T3-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 7pF |
| Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | JTX310 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX310-6-20-T1-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 6pF |
| Q 0.032768-JTX310-6-20-T2-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 6pF |
| Q 0.032768-JTX210-12.5-20-T1-LF | JTX210 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX210-9-20-T1-LF | JTX210 | 32.768kHz | ±20ppm | 9pF |
| Q 0.032768-JTX310-6-20-T3-HMR-LF | JTX310 | 32.768kHz | ±20ppm | 6pF |
| Q 0.032768-JTX310-12.5-10-T1-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 12.5pF |
| Q 0.032768-JTX210-12.5-20-T2-LF | JTX210 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX310-12.5-10-T2-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 12.5pF |
| Q 0.032768-JTX210-9-20-T2-LF | JTX210 | 32.768kHz | ±20ppm | 9pF |
| Q 0.032768-JTX310-12.5-10-T3-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 12.5pF |
| Q 0.032768-JTX310-9-10-T1-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 9pF |
| Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF | JTX310 | 32.768kHz | ±10ppm | 12.5pF |
| Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF | JTX310 | 32.768kHz | ±10ppm | 12.5pF |
| Q 0.032768-JTX310-7-10-T1-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 7pF |
| Q 0.032768-JTX310-9-10-T2-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 9pF |
| Q 0.032768-JTX210-12.5-20-T3-LF | JTX210 | 32.768kHz | ±20ppm | 12.5pF |
| Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF | JTX310 | 32.768kHz | ±10ppm | 12.5pF |
| Q 0.032768-JTX210-9-20-T3-LF | JTX210 | 32.768kHz | ±20ppm | 9pF |
| Q 0.032768-JTX310-7-10-T2-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 7pF |
| Q 0.032768-JTX310-9-10-T3-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 9pF |
| Q 0.032768-JTX310-12.5-10-T3-HMR-70K-LF | JTX310 | 32.768kHz | ±10ppm | 12.5pF |
| Q 0.032768-JTX310-7-10-T3-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 7pF |
| Q 0.032768-JTX310-6-10-T1-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 6pF |
| Q 0.032768-JTX310-6-10-T2-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 6pF |
| Q 0.032768-JTX310-6-10-T3-HMR-LF | JTX310 | 32.768kHz | ±10ppm | 6pF |
.jpg)
.jpg)
