首页欧美晶振 ILSI晶振ILSI晶振|ISM43-2B3-26.000000 MHz|6G基站晶振

ILSI晶振|ISM43-2B3-26.000000 MHz|6G基站晶振

频率：26MHz
尺寸：3.2×2.5mm
应　用： 欧美进口晶振,ILSI晶振,ISM43有源晶振,SPXO晶体振荡器,ISM43-2B3-26.000000 MHz晶振,3225mm晶振,SMD晶振,LVCMOS输出晶振,四脚封装晶振,频率26MHz,电压3.3V,工作温度-40~85°C,频率稳定性50ppm,小体积晶振,高品质晶振,...

ILSI晶振|ISM43-2B3-26.000000 MHz|6G基站晶振,欧美进口晶振,ILSI晶振,ISM43有源晶振,SPXO晶体振荡器,ISM43-2B3-26.000000 MHz晶振,3225mm晶振,SMD晶振,LVCMOS输出晶振,四脚封装晶振,频率26MHz,电压3.3V,工作温度-40~85°C,频率稳定性50ppm,小体积晶振,高品质晶振,无铅环保晶振,6G基站晶振,存储系统晶振,便携式多媒体设备晶振,光纤通道晶振.
ILSI晶振|ISM43-2B3-26.000000 MHz|6G基站晶振特点
●频率范围:20.000MHz至50.000MHZ
●电源电压，1.8Vdc, 2.5Vdc, 3.3Vdc
●引脚1上的三态功能
●超低相位抖动和相位噪声
●行业标准2.5mm x 3.2mm封装
●LVCMOS输出
●符合RoHS和REACH标准

ILSI晶振|ISM43-2B3-26.000000 MHz|6G基站晶振规格表

Electrical Specifications:
Frequency Range	26MHz
Frequency Stability	土50 ppm
Operating Temperature Range	-40°C to +85°C
Aging at 25°c	+3ppm Maximum First Year
Supply Voltage	3.3V	Tolerance +10%
Input Current	No Load 3mA Typical, 5mA Maximum 4.7mA Typical, 7mA Maximum 7mA Typical, 10mA Maximum	Vdd= 1.8Vdc Vdd= 2.5Vdc Vdd = 3.3Vdc
Output Voltage Logic High(Voh)	90% of Vdd Minimum	IOH=-4mA
Output Voltage Logic Low(Vol)	10% of Vdd Maximum	IOL=+4mA
Rise Time/Fall Time	Measured at 10% to 90% of waveform 5nSec Typical, 10nSec Maximum 2nSec Typical, 7nSec Maximum 1.5nSec Typical, 5nSec Maximum	Vdd= 1.8Vdc Vdd = 2.5Vdc Vdd= 3.3Vdc
Duty Cycle	50+5(%)	Measured at 50% of wavefomm
Load Drive Capability	15pF Maximum
Output Logic Type	LVCMOS
Pin 1 Connection	Tri-State (High lmpedance)
Tri-State Input Voltage (Vih and Vil)	70% of Vdd Minimum or No Connect to Enable Output 30% of Vdd Maximum to Disable Output (High lmpedance)
Standby Current	20uA Maximum	Disabled Output High lmpedance
Tri-State Output Disable Time	200nSec Maximum
RMS Phase Jitter(Random)	Fi= 49.152MHz.Fi= 12kHz to 20MHz 118fSec Typical 100fSec Typical 48fSec Typical	Vdd= 1.8Vdc Vdd = 2.5Vdc Vdd= 3.3Vdc
Start Up Time	5mSec Maximum
Phase Noise	See Table 1 and Table 2 (on Page 3)
Storage Temperature Range	-55°C to +100°C

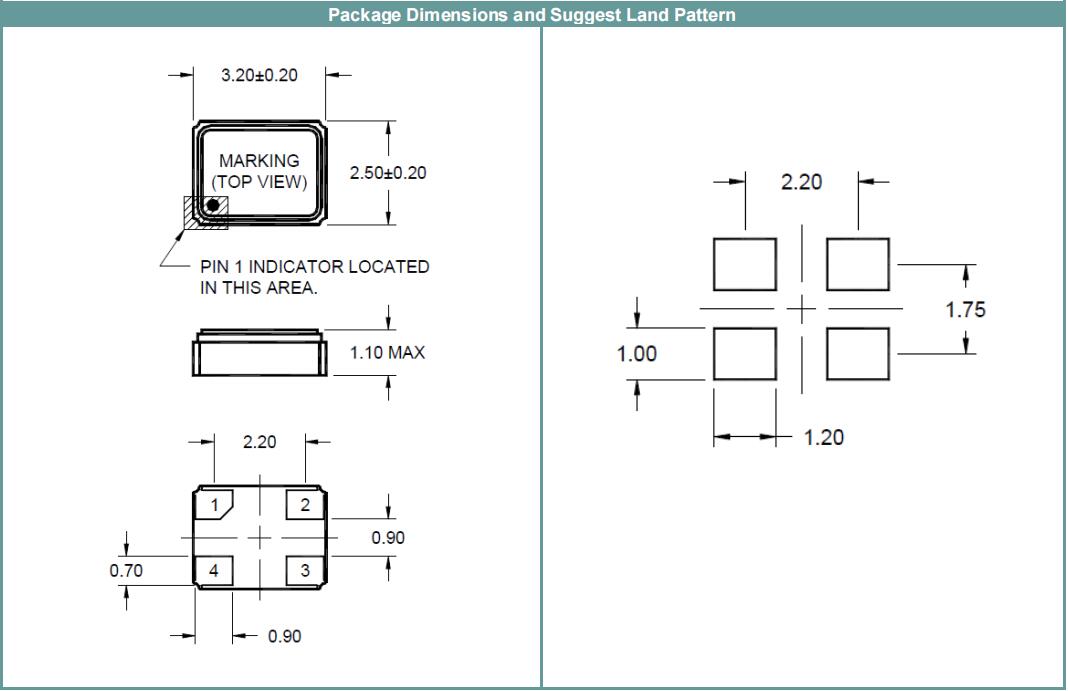

ILSI晶振|ISM43-2B3-26.000000 MHz|6G基站晶振尺寸图

原厂编码	品牌	型号	工作温度	频率	频率容差	负载
HC49USM-BA1F12- 24.000 MHz	ILSI	HC49USM	0°C ~ 70°C	24 MHz	±50ppm	12 pF
HC49USM-BA3F18- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±50ppm	18 pF
HC49USM-BA5F18- 8.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	8 MHz	±50ppm	18 pF
HC49USM-BB3F10- 13.52313 MHz	ILSI	HC49USM	-20°C ~ 70°C	13.52313 MHz	±50ppm	10 pF
HC49USM-BB5F20- 11.0592 MHz	ILSI	HC49USM	-40°C ~ 85°C	11.0592 MHz	±50ppm	20 pF
HC49USM-FB1F18- 8.000 MHz	ILSI	HC49USM	0°C ~ 70°C	8 MHz	±30ppm	18 pF
HC49USM-FB1F18- 28.224 MHz	ILSI	HC49USM	0°C ~ 70°C	28.224 MHz	±30ppm	18 pF
HC49USM-FB1F20- 3.6864 MHz	ILSI	HC49USM	0°C ~ 70°C	3.6864 MHz	±30ppm	20 pF
HC49USM-FB2F30- 4.000 MHz	ILSI	HC49USM	-10°C ~ 60°C	4 MHz	±30ppm	30 pF
HC49USM-FB2F30- 8.000 MHz	ILSI	HC49USM	-10°C ~ 60°C	8 MHz	±30ppm	30 pF
HC49USM-FB3F10- 9.650 MHz	ILSI	HC49USM	-20°C ~ 70°C	9.65 MHz	±30ppm	10 pF
HC49USM-FB3F18- 4.545 MHz	ILSI	HC49USM	-20°C ~ 70°C	4.545 MHz	±30ppm	18 pF
HC49USM-FB3F18- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±30ppm	18 pF
HC49USM-FB3F18- 25.175 MHz	ILSI	HC49USM	-20°C ~ 70°C	25.175 MHz	±30ppm	18 pF
HC49USM-FB3F20- 6.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	6 MHz	±30ppm	20 pF
HC49USM-FB3F20- 8.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	8 MHz	±30ppm	20 pF
HC49USM-FB3F20- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±30ppm	20 pF
HC49USM-FB5F18- 3.579545 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.579545 MHz	±30ppm	18 pF
HC49USM-FB5F18- 4.194304 MHz	ILSI	HC49USM	-40°C ~ 85°C	4.194304 MHz	±30ppm	18 pF
HC49USM-FB5F18- 12.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	12 MHz	±30ppm	18 pF
HC49USM-FB5F18- 20.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	20 MHz	±30ppm	18 pF
HC49USM-FB5F20- 3.6864 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.6864 MHz	±30ppm	20 pF
HC49USM-FB5F20- 8.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	8 MHz	±30ppm	20 pF
HC49USM-FB5F20- 12.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	12 MHz	±30ppm	20 pF
HC49USM-FB5F20- 12.288 MHz	ILSI	HC49USM	-40°C ~ 85°C	12.288 MHz	±30ppm	20 pF
HC49USM-FB5F20- 16.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	16 MHz	±30ppm	20 pF
HC49USM-FF3F18- 3.6864 MHz	ILSI	HC49USM	-20°C ~ 70°C	3.6864 MHz	±30ppm	18 pF
HC49USM-FF3F18- 4.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	4 MHz	±30ppm	18 pF
HC49USM-FF3F18- 4.9152 MHz	ILSI	HC49USM	-20°C ~ 70°C	4.9152 MHz	±30ppm	18 pF
HC49USM-FF3F18- 6.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	6 MHz	±30ppm	18 pF
HC49USM-FF3F18- 6.144 MHz	ILSI	HC49USM	-20°C ~ 70°C	6.144 MHz	±30ppm	18 pF
HC49USM-FF3F18- 7.3728 MHz	ILSI	HC49USM	-20°C ~ 70°C	7.3728 MHz	±30ppm	18 pF
HC49USM-FF3F18- 8.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	8 MHz	±30ppm	18 pF
HC49USM-FF3F18- 11.0592 MHz	ILSI	HC49USM	-20°C ~ 70°C	11.0592 MHz	±30ppm	18 pF
HC49USM-FF3F18- 12.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	12 MHz	±30ppm	18 pF
HC49USM-FF3F18- 14.7456 MHz	ILSI	HC49USM	-20°C ~ 70°C	14.7456 MHz	±30ppm	18 pF
HC49USM-FF3F18- 16.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	16 MHz	±30ppm	18 pF
HC49USM-FF3F18- 18.432 MHz	ILSI	HC49USM	-20°C ~ 70°C	18.432 MHz	±30ppm	18 pF
HC49USM-FF3F18- 20.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	20 MHz	±30ppm	18 pF
HC49USM-FF3F18- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±30ppm	18 pF
HC49USM-FF3F18- 9.909116 MHz	ILSI	HC49USM	-20°C ~ 70°C	9.909116 MHz	±30ppm	18 pF
HC49USM-FF5F10- 9.81713 MHz	ILSI	HC49USM	-40°C ~ 85°C	9.81713 MHz	±30ppm	10 pF
HC49USM-FF5F18- 3.6864 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.6864 MHz	±30ppm	18 pF
HC49USM-FF5F18- 3.93216 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.93216 MHz	±30ppm	18 pF
HC49USM-FF5F18- 4.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	4 MHz	±30ppm	18 pF
HC49USM-FF5F18- 6.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	6 MHz	±30ppm	18 pF
HC49USM-FF5F18- 7.3728 MHz	ILSI	HC49USM	-40°C ~ 85°C	7.3728 MHz	±30ppm	18 pF
HC49USM-FF5F18- 8.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	8 MHz	±30ppm	18 pF
HC49USM-FF5F18- 10.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	10 MHz	±30ppm	18 pF
HC49USM-FF5F18- 11.0592 MHz	ILSI	HC49USM	-40°C ~ 85°C	11.0592 MHz	±30ppm	18 pF
HC49USM-FF5F18- 12.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	12 MHz	±30ppm	18 pF
HC49USM-FF5F18- 14.7456 MHz	ILSI	HC49USM	-40°C ~ 85°C	14.7456 MHz	±30ppm	18 pF
HC49USM-FF5F18- 16.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	16 MHz	±30ppm	18 pF
HC49USM-FF5F18- 18.432 MHz	ILSI	HC49USM	-40°C ~ 85°C	18.432 MHz	±30ppm	18 pF
HC49USM-FF5F18- 20.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	20 MHz	±30ppm	18 pF
HC49USM-FF5F18- 25.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
IL3X-HX5F12.5- 32.768 KHz	ILSI	IL3X	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
IL3X2-HX5F12.5- 32.768 KHz	ILSI	IL3X2	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
IL3X2-HX5F6- 32.768 KHz	ILSI	IL3X2	-40°C ~ 85°C	32.768 kHz	±20ppm	6 pF
IL3X2-HX5F7- 32.768 kHz	ILSI	IL3X2	-40°C ~ 85°C	32.768 kHz	±20ppm	7 pF
IL3X2-HX5F9- 32.768 kHz	ILSI	IL3X2	-40°C ~ 85°C	32.768 kHz	±20ppm	9 pF
ILCX04-FB1F18- 27.000 MHz	ILSI	ILCX04	0°C ~ 70°C	27 MHz	±30ppm	18 pF
ILCX04-FB1F18- 28.224 MHz	ILSI	ILCX04	0°C ~ 70°C	28.224 MHz	±30ppm	18 pF
ILCX04-FB3F18- 7.3728 MHz	ILSI	ILCX04	-20°C ~ 70°C	7.3728 MHz	±30ppm	18 pF
ILCX04-FB5F20- 22.1184 MHz	ILSI	ILCX04	-40°C ~ 85°C	22.1184 MHz	±30ppm	20 pF
ILCX04-FB5F20- 25.000 MHz	ILSI	ILCX04	-40°C ~ 85°C	25 MHz	±30ppm	20 pF
ILCX04-FB5F20- 6.000 MHz	ILSI	ILCX04	-40°C ~ 85°C	6 MHz	±30ppm	20 pF
ILCX04-FF1F20- 8.000 MHz	ILSI	ILCX04	0°C ~ 70°C	8 MHz	±30ppm	20 pF
ILCX04-JH5F18- 8.000 MHz	ILSI	ILCX04	-40°C ~ 85°C	8 MHz	±10ppm	18 pF
ILCX07-BB3F12- 16.000 MHz	ILSI	ILCX07	-20°C ~ 70°C	16 MHz	±50ppm	12 pF
ILCX07-FB3F13-16.000MHz	ILSI	ILCX07	-20°C ~ 70°C	16 MHz	±30ppm	13 pF
ILCX07-FB5F12- 20.000 MHz	ILSI	ILCX07	-40°C ~ 85°C	20 MHz	±30ppm	12 pF
ILCX07-FF1F20- 25.000 MHz	ILSI	ILCX07	0°C ~ 70°C	25 MHz	±30ppm	20 pF
ILCX07-FF3F16- 9.984 MHz	ILSI	ILCX07	-20°C ~ 70°C	9.984 MHz	±30ppm	16 pF
ILCX07-FF3F16- 10.78125 MHz	ILSI	ILCX07	-20°C ~ 70°C	10.78125 MHz	±30ppm	16 pF
ILCX07-FF3F16- 13.560 MHz	ILSI	ILCX07	-20°C ~ 70°C	13.56 MHz	±30ppm	16 pF
ILCX07-FF5F12.5-8.000MHz	ILSI	ILCX07	-40°C ~ 85°C	8 MHz	±30ppm	12 pF
ILCX07-FF5F18- 24.000 MHz	ILSI	ILCX07	-40°C ~ 85°C	24 MHz	±30ppm	18 pF
ILCX07-FF5F18- 25.000 MHz	ILSI	ILCX07	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
ILCX07-FF5F20- 25.000 MHz	ILSI	ILCX07	-40°C ~ 85°C	25 MHz	±30ppm	20 pF
ILCX07-HB3F18- 20.000 MHz	ILSI	ILCX07	-20°C ~ 70°C	20 MHz	±20ppm	18 pF
ILCX07-HB3F18- 27.000 MHz	ILSI	ILCX07	-20°C ~ 70°C	27 MHz	±20ppm	18 pF
ILCX07-JJ2F10- 8.000 MHz	ILSI	ILCX07	-10°C ~ 60°C	8 MHz	±10ppm	10 pF
ILCX07-JJ3F10- 12.000 MHz	ILSI	ILCX07	-20°C ~ 70°C	12 MHz	±10ppm	10 pF
ILCX07A-FB1F12- 18.432 MHz	ILSI	ILCX07A	0°C ~ 70°C	18.432 MHz	±30ppm	12 pF
ILCX07A-FB3F18- 12.000 MHz	ILSI	ILCX07A	-20°C ~ 70°C	12 MHz	±30ppm	18 pF
ILCX07B-FB1F18- 14.7456 MHz	ILSI	ILCX07B	0°C ~ 70°C	14.7456 MHz	±30ppm	18 pF
ILCX07B-FB1F18-27.120MHz	ILSI	ILCX07B	0°C ~ 70°C	27.12 MHz	±30ppm	18 pF
ILCX07B-FB5F20- 29.4912 MHz	ILSI	ILCX07B	-40°C ~ 85°C	29.4912 MHz	±30ppm	20 pF
ILCX08-HH5F18- 8.000 MHz	ILSI	ILCX08	-40°C ~ 85°C	8 MHz	±20ppm	18 pF
ILCX08-JG5F18- 24.000 MHz	ILSI	ILCX08	-40°C ~ 85°C	24 MHz	±10ppm	18 pF
ILCX08-JH5F18- 8.000 MHz	ILSI	ILCX08	-40°C ~ 85°C	8 MHz	±10ppm	18 pF
ILCX08-JH5F18- 16.000 MHz	ILSI	ILCX08	-40°C ~ 85°C	16 MHz	±10ppm	18 pF
ILCX13-BB5F10- 12.000000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±50ppm	10 pF
ILCX13-BB5F10- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±50ppm	10 pF
ILCX13-BB5F10- 49.152 MHz	ILSI	ILCX13	-40°C ~ 85°C	49.152 MHz	±50ppm	10 pF
ILCX13-BH3F18- 12.000 MHZ	ILSI	ILCX13	-20°C ~ 70°C	12 MHz	±50ppm	18 pF
ILCX13-FB5F15- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±30ppm	15 pF
ILCX13-FB5F18- 12.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±30ppm	18 pF
ILCX13-FB5F18- 16.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	16 MHz	±30ppm	18 pF
ILCX13-FB5F18- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±30ppm	18 pF
ILCX13-FB5F18- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
ILCX13-FF3F10- 12.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	12 MHz	±30ppm	10 pF
ILCX13-FF3F8- 24.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	24 MHz	±30ppm	8 pF
ILCX13-FF5F18- 12.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±30ppm	18 pF
ILCX13-FF5F18- 16.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	16 MHz	±30ppm	18 pF
ILCX13-FF5F18- 20.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	20 MHz	±30ppm	18 pF
ILCX13-FF5F18- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±30ppm	18 pF
ILCX13-FF5F18- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
ILCX13-FF5F18- 32.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	32 MHz	±30ppm	18 pF
ILCX13-HB3F18- 24.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	24 MHz	±20ppm	18 pF
ILCX13-HB3F18- 32.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	32 MHz	±20ppm	18 pF
ILCX13-HF3F18- 12.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	12 MHz	±20ppm	18 pF
ILCX13-HF3F18- 25.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	25 MHz	±20ppm	18 pF
ILCX13-HF5F10- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±20ppm	10 pF
ILCX13-HF5F12- 12.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±20ppm	12 pF
ILCX13-HF5F12- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±20ppm	12 pF
ILCX13-HF5F18- 12.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±20ppm	18 pF
ILCX13-HF5F18- 16.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	16 MHz	±20ppm	18 pF
ILCX13-HF5F18- 22.1184 MHz	ILSI	ILCX13	-40°C ~ 85°C	22.1184 MHz	±20ppm	18 pF
ILCX13-HF5F18- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±20ppm	18 pF
ILCX13-HF5F18- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±20ppm	18 pF
ILCX13-HF5F18- 48.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	48 MHz	±20ppm	18 pF
ILCX13-HG5F19 -50.2232 MHz	ILSI	ILCX13	-40°C ~ 85°C	50.2232 MHz	±20ppm	19 pF
ILCX13-HH3F18- 25.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	25 MHz	±20ppm	18 pF
ILCX13-HH3F18- 27.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	27 MHz	±20ppm	18 pF
ILCX13-HH3F8- 10.77938 MHz	ILSI	ILCX13	-20°C ~ 70°C	10.77938 MHz	±20ppm	8 pF
ILCX13-HH3F8- 10.78125 MHz	ILSI	ILCX13	-20°C ~ 70°C	10.78125 MHz	±20ppm	8 pF
ILCX13-HH5F18- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±20ppm	18 pF
ILCX13-IH1F12- 24.000 MHz	ILSI	ILCX13	0°C ~ 70°C	24 MHz	±15ppm	12 pF
ILCX13-IH1F12- 25.000 MHz	ILSI	ILCX13	0°C ~ 70°C	25 MHz	±15ppm	12 pF
ILCX13-II3F8- 24.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	24 MHz	±15ppm	8 pF
ILCX13-II5F8- 40.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	40 MHz	±15ppm	8 pF
ILCX13-JH5F8-39.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	39 MHz	±10ppm	8 pF
ILCX13-JI1F9- 32.000 MHz	ILSI	ILCX13	0°C ~ 70°C	32 MHz	±10ppm	9 pF
ILCX13-JI5F10- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±10ppm	10 pF
ILCX13-JI5F8- 32.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	32 MHz	±10ppm	8 pF
ILCX13-JI5F9- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±10ppm	9 pF
ILCX13-JJ2F10-30.000 MHz	ILSI	ILCX13	-10°C ~ 60°C	30 MHz	±10ppm	10 pF
ILCX13-JJ2F7- 16.000 MHz	ILSI	ILCX13	-10°C ~ 60°C	16 MHz	±10ppm	7 pF
ILCX13-JJ3F10- 16.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	16 MHz	±10ppm	10 pF
ILCX13-JJ3F10- 32.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	32 MHz	±10ppm	10 pF
ILCX13-JJ3F16- 16.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	16 MHz	±10ppm	16 pF
ILCX13-JJ3F4- 24.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	24 MHz	±10ppm	4 pF
ILCX13-JJ3F9- 16.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	16 MHz	±10ppm	9 pF
ILCX18-FF3F18- 25.000 MHz	ILSI	ILCX18	-20°C ~ 70°C	25 MHz	±30ppm	18 pF
ILCX18-FF5F18- 16.000 MHz	ILSI	ILCX18	-40°C ~ 85°C	16 MHz	±30ppm	18 pF
ILCX18-FF5F18- 25.000 MHz	ILSI	ILCX18	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
ILCX18-JI5F8- 32.000 MHz	ILSI	ILCX18	-40°C ~ 85°C	32 MHz	±10ppm	8 pF

公司：深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://www.hneyq.com
地址：广东省深圳市宝安区新安107国道旁

企业博客

ILSI晶振|ISM43-2B3-26.000000 MHz|6G基站晶振

相关产品
