首页欧美晶振 ILSI晶振ILSI Crystal|ISA20-6FBH-36.000 MHz|汽车引擎系统晶振

ILSI Crystal|ISA20-6FBH-36.000 MHz|汽车引擎系统晶振

频率：36MHz
尺寸：5.0×3.2mm
应　用： ILSI Crystal,ISA20振荡器,进口有源晶振,ISA20-6FBH-36.000 MHz晶振,5032mm晶振,石英晶振,四脚贴片晶振,SMD晶振,频率36MHz,电压2.5V,工作温度-40~125°C,频率稳定性50ppm,无铅环保晶振,耐高温晶振,小体积晶振,汽车引擎...

ILSI Crystal|ISA20-6FBH-36.000 MHz|汽车引擎系统晶振,ILSI Crystal,ISA20振荡器,进口有源晶振,ISA20-6FBH-36.000 MHz晶振,5032mm晶振,石英晶振,四脚贴片晶振,SMD晶振,频率36MHz,电压2.5V,工作温度-40~125°C,频率稳定性50ppm,无铅环保晶振,耐高温晶振,小体积晶振,汽车引擎系统晶振,GPS导航设备晶振,信息娱乐系统晶振,TPMs晶振.
ILSI Crystal|ISA20-6FBH-36.000 MHz|汽车引擎系统晶振特点
●通过AEC-Q200认证
●通过TS16949认证的生产线
●LVCMOS兼容输出
●行业标准包装5.0mm x 3.2mm
●五种电源电压选择，1.8V, 2.5V, 2.8V, 3.0V或3.3V
●无铅、无卤、无锑
●符合RoHS和REACH标准

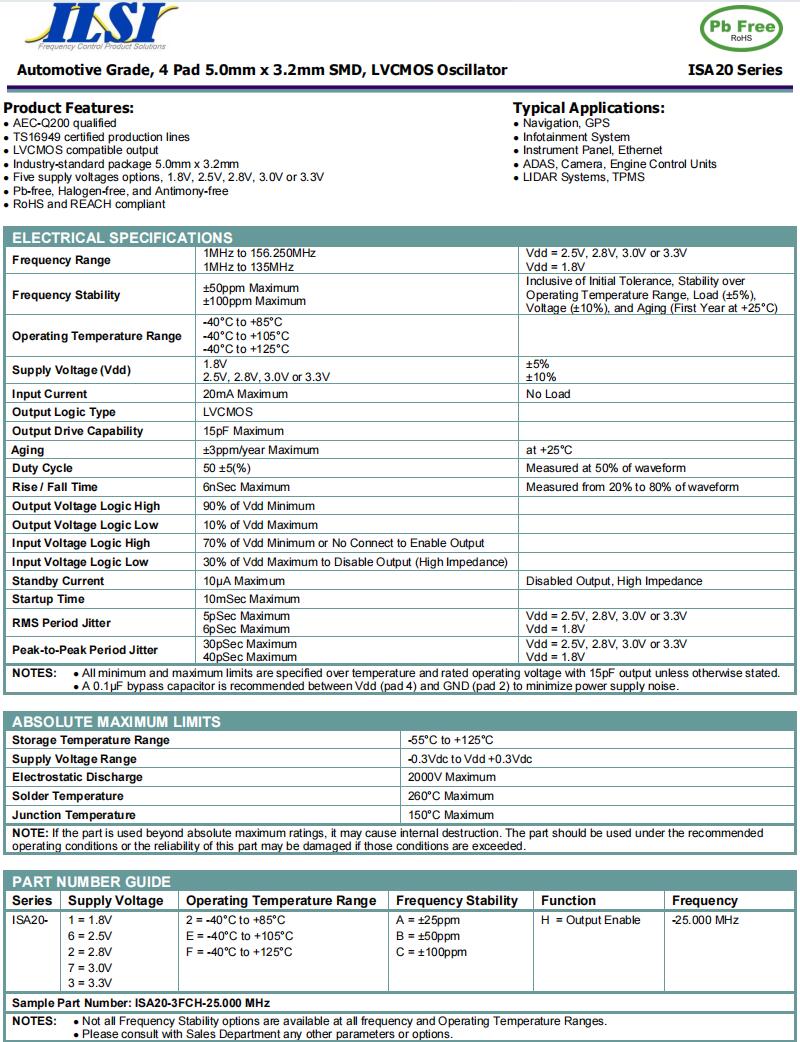

ILSI Crystal|ISA20-6FBH-36.000 MHz|汽车引擎系统晶振规格表

Frequency Range

36 MHz

Frequency Stability

±50ppm Maximum
±100ppm Maximum

Inclusive of Initial Tolerance, Stability over Operating Temperature Range, Load (±5%), Voltage (±10%), and Aging (First Year at +25°C)

Operating Temperature Range

-40°C to +85°C
-40°C to +105°C
-40°C to +125°C

Supply Voltage (Vdd)

1.8V
2.5V, 2.8V, 3.0V or 3.3V

±5%
±10%

Input Current

20mA Maximum

No Load

Output Logic Type

LVCMOS

Output Drive Capability

15pF Maximum

Aging

±3ppm/year Maximum

at +25°C

Duty Cycle

50 ±5(%)

Measured at 50% of waveform

Rise / Fall Time

6nSec Maximum

Measured from 20% to 80% of waveform

Output Voltage Logic High

90% of Vdd Minimum

Output Voltage Logic Low

10% of Vdd Maximum

Input Voltage Logic High

70% of Vdd Minimum or No Connect to Enable Output

Input Voltage Logic Low

30% of Vdd Maximum to Disable Output (High Impedance)

Standby Current

10µA Maximum

Disabled Output, High Impedance

Startup Time

10mSec Maximum

RMS Period Jitter

5pSec Maximum
6pSec Maximum

Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V

Peak-to-Peak Period Jitter

30pSec Maximum
40pSec Maximum

Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V

NOTES: ● All minimum and maximum limits are specified over temperature and rated operating voltage with 15pF output unless otherwise stated.
● A 0.1µF bypass capacitor is recommended between Vdd (pad 4) and GND (pad 2) to minimize power supply noise.

ILSI Crystal|ISA20-6FBH-36.000 MHz|汽车引擎系统晶振尺寸图
