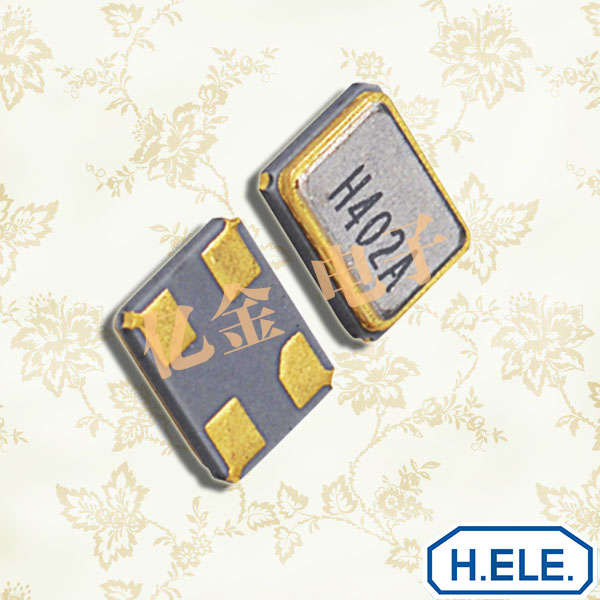

HELE石英贴片晶振,X2B038400BA1H-U,6G基站晶振
- 频率：38.4MHz
- 尺寸：2.5×2.0mm
- 应 用： 台湾进口晶振,HELE石英贴片晶振,HSX221SA无源晶振,石英晶体谐振器,X2B038400BA1H-U晶振,2520小体积晶振,频率38.4MHz,负载10pF,频率稳定性10ppm,工作温度-20~70°C,耐热性晶振,高品质晶振,6G基站晶振,射频应用晶振,物联...
-
-
HELE石英贴片晶振,X2B038400BA1H-U,6G基站晶振,台湾进口晶振,HELE石英贴片晶振,HSX221SA无源晶振,石英晶体谐振器,X2B038400BA1H-U晶振,2520小体积晶振,频率38.4MHz,负载10pF,频率稳定性10ppm,工作温度-20~70°C,耐热性晶振,高品质晶振,6G基站晶振,射频应用晶振,物联网晶振,平板电脑晶振.
HELE石英贴片晶振,X2B038400BA1H-U,6G基站晶振特点：
■微型超薄贴片产品尺寸(2.5×2.0× 0.5 max)
■精度高，可靠性好，耐热性好
■射频应用、无线?？樯璞?、RFID应用和其他消费类产品的最佳解决方案

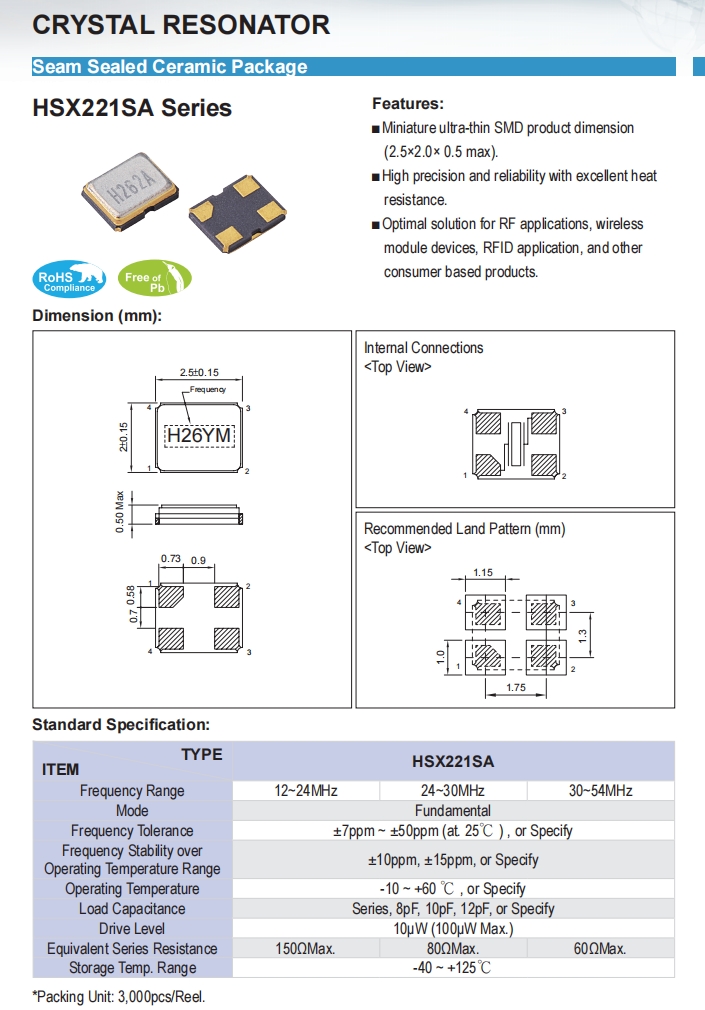

HELE石英贴片晶振,X2B038400BA1H-U,6G基站晶振规格表
| 项目 | HSX221SA |
| 频率 | 38.4MHz |
| 振动模式 | Fundamental |
| 频率公差 | ±10ppm |
| 频率稳定性 | ±10ppm |
| 负载电容 | 10pf |
| 工作温度 | －20℃～＋70℃ |
| 保存温度 | －40℃～＋125℃ |
| 串联阻力 | 60Ω Max. |
| 驱动级别 | 100μW Max |
.jpg)

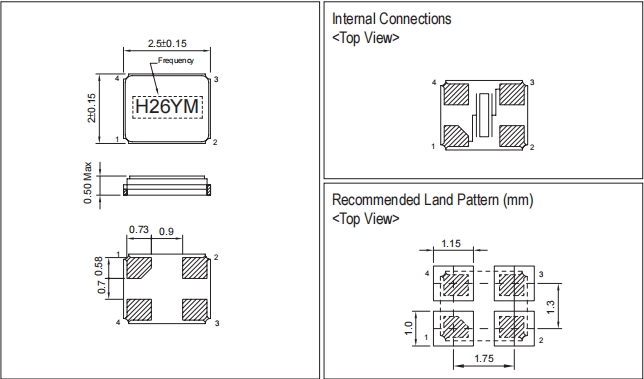

HELE石英贴片晶振,X2B038400BA1H-U,6G基站晶振尺寸图
| 原厂编码 | 制造厂家 | 型号 | 频率 | 负载 | 频率容差 | 频率稳定性 |
| X2B02863ADC1H-W | HELE晶振 | HSX221SA | 28.636360MHz | 12pF | ±20PPM | ±20PPM |
| X2B010000ADC1H-W | HELE晶振 | HSX221SA | 10MHz | 12pF | ±20PPM | ±20PPM |
| X2B011000ADC1H-W | HELE晶振 | HSX221SA | 11MHz | 12pF | ±20PPM | ±20PPM |
| X2B012000ADC1H-W | HELE晶振 | HSX221SA | 12MHz | 12pF | ±20PPM | ±20PPM |
| X2B013000ADC1H-W | HELE晶振 | HSX221SA | 13MHz | 12pF | ±20PPM | ±20PPM |
| X2B014000ADC1H-W | HELE晶振 | HSX221SA | 14MHz | 12pF | ±20PPM | ±20PPM |
| X2B015000ADC1H-W | HELE晶振 | HSX221SA | 15MHz | 12pF | ±20PPM | ±20PPM |
| X2B016000ADC1H-W | HELE晶振 | HSX221SA | 16MHz | 12pF | ±20PPM | ±20PPM |
| X2B017000ADC1H-W | HELE晶振 | HSX221SA | 17MHz | 12pF | ±20PPM | ±20PPM |
| X2B018000ADC1H-W | HELE晶振 | HSX221SA | 18MHz | 12pF | ±20PPM | ±20PPM |
| X2B019000ADC1H-W | HELE晶振 | HSX221SA | 19MHz | 12pF | ±20PPM | ±20PPM |
| X2B020000ADC1H-W | HELE晶振 | HSX221SA | 20MHz | 12pF | ±20PPM | ±20PPM |
| X2B021000ADC1H-W | HELE晶振 | HSX221SA | 21MHz | 12pF | ±20PPM | ±20PPM |
| X2B022000ADC1H-W | HELE晶振 | HSX221SA | 22MHz | 12pF | ±20PPM | ±20PPM |
| X2B023000ADC1H-W | HELE晶振 | HSX221SA | 23MHz | 12pF | ±20PPM | ±20PPM |
| X2B024000ADC1H-W | HELE晶振 | HSX221SA | 24MHz | 12pF | ±20PPM | ±20PPM |
| X2B025000ADC1H-W | HELE晶振 | HSX221SA | 25MHz | 12pF | ±20PPM | ±20PPM |
| X2B026000ADC1H-W | HELE晶振 | HSX221SA | 26MHz | 12pF | ±20PPM | ±20PPM |
| X2B027000ADC1H-W | HELE晶振 | HSX221SA | 27MHz | 12pF | ±20PPM | ±20PPM |
| X2B028000ADC1H-W | HELE晶振 | HSX221SA | 28MHz | 12pF | ±20PPM | ±20PPM |
| X2B029000ADC1H-W | HELE晶振 | HSX221SA | 29MHz | 12pF | ±20PPM | ±20PPM |
| X2B030000ADC1H-W | HELE晶振 | HSX221SA | 30MHz | 12pF | ±20PPM | ±20PPM |
| X2B031000ADC1H-W | HELE晶振 | HSX221SA | 31MHz | 12pF | ±20PPM | ±20PPM |
| X2B032000ADC1H-W | HELE晶振 | HSX221SA | 32MHz | 12pF | ±20PPM | ±20PPM |
| X2B033000ADC1H-W | HELE晶振 | HSX221SA | 33MHz | 12pF | ±20PPM | ±20PPM |
| X2B034000ADC1H-W | HELE晶振 | HSX221SA | 34MHz | 12pF | ±20PPM | ±20PPM |
| X2B035000ADC1H-W | HELE晶振 | HSX221SA | 35MHz | 12pF | ±20PPM | ±20PPM |
| X2B036000ADC1H-W | HELE晶振 | HSX221SA | 36MHz | 12pF | ±20PPM | ±20PPM |
| X2B037000ADC1H-W | HELE晶振 | HSX221SA | 37MHz | 12pF | ±20PPM | ±20PPM |
| X2B038000ADC1H-W | HELE晶振 | HSX221SA | 38MHz | 12pF | ±20PPM | ±20PPM |
| X2B039000ADC1H-W | HELE晶振 | HSX221SA | 39MHz | 12pF | ±20PPM | ±20PPM |
| X2B040000ADC1H-W | HELE晶振 | HSX221SA | 40MHz | 12pF | ±20PPM | ±20PPM |
| X2B038400BA1H-U | HELE晶振 | HSX221SA | 38.4MHz | 10pF | ±10PPM | ±10PPM |
| X2B016000BA1H-U | HELE晶振 | HSX221SA | 16MHz | 10pF | ±10PPM | ±10PPM |
| X2B017000BA1H-U | HELE晶振 | HSX221SA | 17MHz | 10pF | ±10PPM | ±10PPM |
| X2B018000BA1H-U | HELE晶振 | HSX221SA | 18MHz | 10pF | ±10PPM | ±10PPM |
| X2B019000BA1H-U | HELE晶振 | HSX221SA | 19MHz | 10pF | ±10PPM | ±10PPM |
| X2B020000BA1H-U | HELE晶振 | HSX221SA | 20MHz | 10pF | ±10PPM | ±10PPM |
| X2B021000BA1H-U | HELE晶振 | HSX221SA | 21MHz | 10pF | ±10PPM | ±10PPM |
| X2B022000BA1H-U | HELE晶振 | HSX221SA | 22MHz | 10pF | ±10PPM | ±10PPM |
| X2B023000BA1H-U | HELE晶振 | HSX221SA | 23MHz | 10pF | ±10PPM | ±10PPM |
| X2B024000BA1H-U | HELE晶振 | HSX221SA | 24MHz | 10pF | ±10PPM | ±10PPM |
| X2B025000BA1H-U | HELE晶振 | HSX221SA | 25MHz | 10pF | ±10PPM | ±10PPM |
| X2B026000BA1H-U | HELE晶振 | HSX221SA | 26MHz | 10pF | ±10PPM | ±10PPM |
| X2B027000BA1H-U | HELE晶振 | HSX221SA | 27MHz | 10pF | ±10PPM | ±10PPM |
| X2B028000BA1H-U | HELE晶振 | HSX221SA | 28MHz | 10pF | ±10PPM | ±10PPM |
| X2B029000BA1H-U | HELE晶振 | HSX221SA | 29MHz | 10pF | ±10PPM | ±10PPM |
| X2B030000BA1H-U | HELE晶振 | HSX221SA | 30MHz | 10pF | ±10PPM | ±10PPM |
| X2B031000BA1H-U | HELE晶振 | HSX221SA | 31MHz | 10pF | ±10PPM | ±10PPM |
| X2B032000BA1H-U | HELE晶振 | HSX221SA | 32MHz | 10pF | ±10PPM | ±10PPM |
| X2B033000BA1H-U | HELE晶振 | HSX221SA | 33MHz | 10pF | ±10PPM | ±10PPM |
| X2B034000BA1H-U | HELE晶振 | HSX221SA | 34MHz | 10pF | ±10PPM | ±10PPM |
| X2B035000BA1H-U | HELE晶振 | HSX221SA | 35MHz | 10pF | ±10PPM | ±10PPM |
| X2B036000BA1H-U | HELE晶振 | HSX221SA | 36MHz | 10pF | ±10PPM | ±10PPM |
| X2B037000BA1H-U | HELE晶振 | HSX221SA | 37MHz | 10pF | ±10PPM | ±10PPM |
| X2B038000BA1H-U | HELE晶振 | HSX221SA | 38MHz | 10pF | ±10PPM | ±10PPM |
| X2B039000BA1H-U | HELE晶振 | HSX221SA | 39MHz | 10pF | ±10PPM | ±10PPM |
| X2B040000BA1H-U | HELE晶振 | HSX221SA | 40MHz | 10pF | ±10PPM | ±10PPM |
| X2B041000BA1H-U | HELE晶振 | HSX221SA | 41MHz | 10pF | ±10PPM | ±10PPM |
| X2B042000BA1H-U | HELE晶振 | HSX221SA | 42MHz | 10pF | ±10PPM | ±10PPM |
| X2B043000BA1H-U | HELE晶振 | HSX221SA | 43MHz | 10pF | ±10PPM | ±10PPM |
| X2B044000BA1H-U | HELE晶振 | HSX221SA | 44MHz | 10pF | ±10PPM | ±10PPM |
| X2B045000BA1H-U | HELE晶振 | HSX221SA | 45MHz | 10pF | ±10PPM | ±10PPM |
| X2B046000BA1H-U | HELE晶振 | HSX221SA | 46MHz | 10pF | ±10PPM | ±10PPM |
