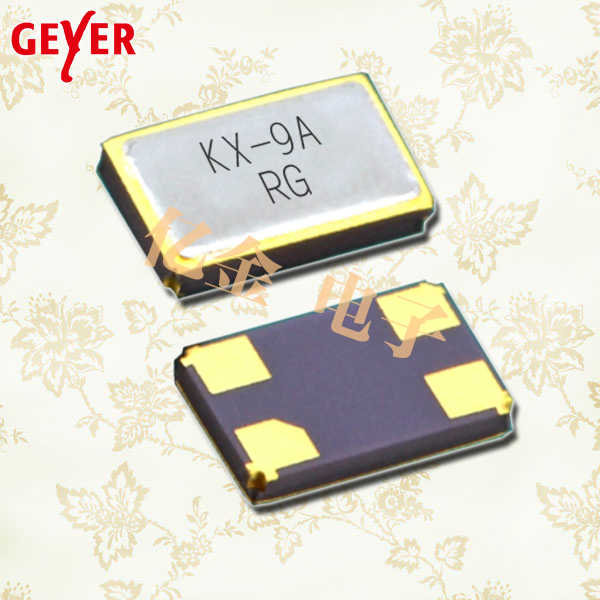

格耶晶振,KX-9A手机晶振,5032mm贴片晶振，智能手机晶振,产品具有高精度超小型的表面贴片型石英晶体振荡器,最适用于移动通信终端的基准时钟等移动通信领域.比如智能手机,无线通信,卫星导航,平台基站等较高端的数码产品,晶振本身小型,薄型具备各类移动通信的基准时钟源用频率,贴片晶振具有优良的电气特性,耐环境性能适用于移动通信领域,满足无铅焊接的高温回流温度曲线要求
    GEYER晶振作为一个可靠的，成功的合作伙伴，我们非常重视在开发阶段与客户的密切合作。这使我们能够确保我们能够为您提供您想要的和需要的。

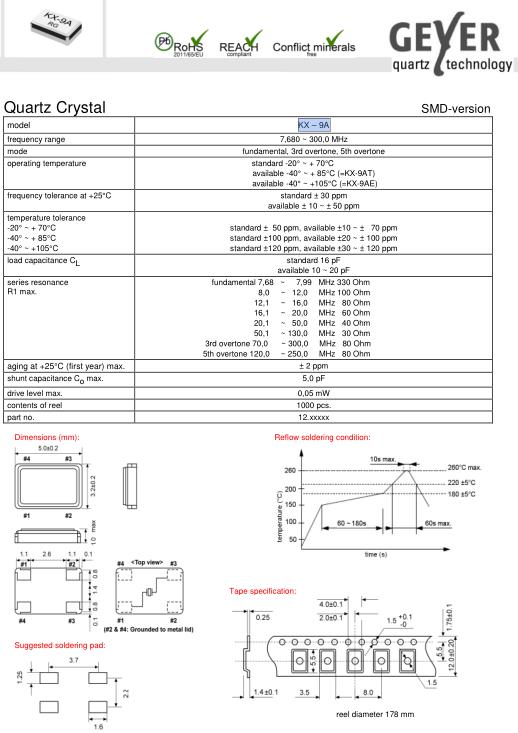

model	KX – 9A
frequency range	7,680 ~ 300,0 MHz
mode	fundamental, 3rd overtone, 5th overtone
operating temperature	standard -20° ~ + 70°C available -40° ~ + 85°C (=KX-9AT)  available -40° ~ +105°C (=KX-9AE)
frequency tolerance at +25°C	standard ± 30 ppm available ± 10 ~ ± 50 ppm
temperature tolerance -20° ~ + 70°C -40° ~ + 85°C -40° ~ +105°C	standard ± 50 ppm, available ±10 ~ ± 70 ppm standard ±100 ppm, available ±20 ~ ± 100 ppm standard ±120 ppm, available ±30 ~ ± 120 ppm
load capacitance CL	standard 16 pF available 10 ~ 20 pF
series resonance R1 max.	fundamental 7,68 ~ 7,99 MHz 330 Ohm  8,0 ~ 12,0 MHz 100 Ohm  12,1 ~ 16,0 MHz 80 Ohm  16,1 ~ 20,0 MHz 60 Ohm  20,1 ~ 50,0 MHz 40 Ohm  50,1 ~ 130,0 MHz 30 Ohm  3rd overtone 70,0 ~ 300,0 MHz 80 Ohm  5th overtone 120,0 ~ 250,0 MHz 80 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance Co max.	5,0 pF
drive level max.	0,05 mW
contents of reel	1000 pcs.
part no.	12.xxxxx
