首页欧美晶振 FOX晶振FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振

FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振

频率：32MHz
尺寸：5.0×3.2mm
应　用： FOX进口晶振,C5BA无源晶振,FC5BACBEI32.0-T1晶振,石英晶体谐振器,5032贴片晶振,频率32MHz,负载10pF,频率稳定性30ppm,工作温度-40~125°C,耐高温晶振,高品质晶振,6G无线通信晶振,汽车音响控制器晶振,车载CCD相机晶振, ...

FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振,FOX进口晶振,C5BA无源晶振,FC5BACBEI32.0-T1晶振,石英晶体谐振器,5032贴片晶振,频率32MHz,负载10pF,频率稳定性30ppm,工作温度-40~125°C,耐高温晶振,高品质晶振,6G无线通信晶振,汽车音响控制器晶振,车载CCD相机晶振, 电信交换机晶振.
FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振特点
•AEC Q200合格
•TS-16949质量管理体系
•公差低至±10ppm
•稳定性低至±20 PPM
•温度范围-40°C ~ +125°C

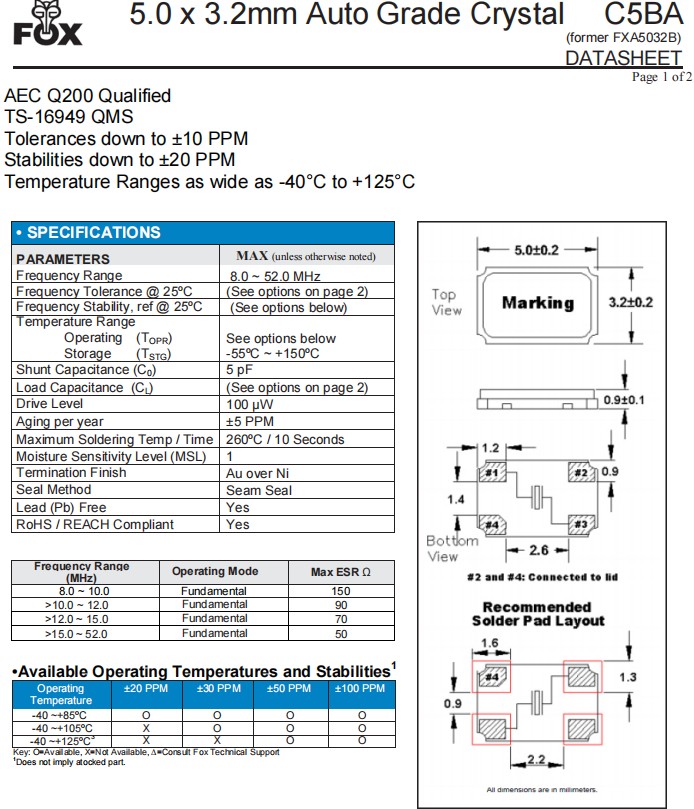

FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振规格表

参数	数值
标准频率	32MHz
频率容差	30ppm
频率稳定性	50ppm
工作温度	−40~+125°C
储存温度	−55~+150°C
老化	±5ppm
负载	10pF
并联电容	5pF Max
激励功率	100 µW Typical
湿度敏感等级(MSL)	1
湿度敏感等级(MSL)	1
最大焊接温度/时间	260ºC / 10 Seconds
无铅	Yes
通过无铅认证	Yes

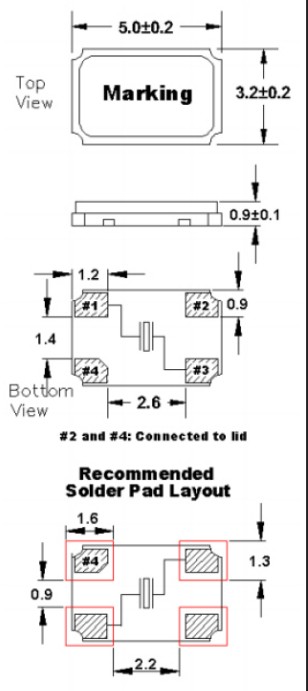

FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振尺寸图

制造商零件编号	供应商	系列	频率	频率稳定性	频率容差	负载电容	工作温度
FC5BACBEI11.0-T1	Fox 晶振	C5BA	11 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI12.0-T1	Fox 晶振	C5BA	12 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI13.0-T1	Fox 晶振	C5BA	13 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI14.0-T1	Fox 晶振	C5BA	14 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI15.0-T1	Fox 晶振	C5BA	15 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI16.0-T1	Fox 晶振	C5BA	16 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI17.0-T1	Fox 晶振	C5BA	17 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI18.0-T1	Fox 晶振	C5BA	18 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI19.0-T1	Fox 晶振	C5BA	19 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI20.0-T1	Fox 晶振	C5BA	20 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI21.0-T1	Fox 晶振	C5BA	21 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI22.0-T1	Fox 晶振	C5BA	22 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI23.0-T1	Fox 晶振	C5BA	23 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI24.0-T1	Fox 晶振	C5BA	24 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI25.0-T1	Fox 晶振	C5BA	25 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI26.0-T1	Fox 晶振	C5BA	26 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI27.0-T1	Fox 晶振	C5BA	27 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI28.0-T1	Fox 晶振	C5BA	28 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI29.0-T1	Fox 晶振	C5BA	29 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI30.0-T1	Fox 晶振	C5BA	30 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI31.0-T1	Fox 晶振	C5BA	31 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI32.0-T1	Fox 晶振	C5BA	32 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI33.0-T1	Fox 晶振	C5BA	33 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI34.0-T1	Fox 晶振	C5BA	34 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI35.0-T1	Fox 晶振	C5BA	35 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI36.0-T1	Fox 晶振	C5BA	36 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI37.0-T1	Fox 晶振	C5BA	37 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI38.0-T1	Fox 晶振	C5BA	38 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI39.0-T1	Fox 晶振	C5BA	39 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACBEI40.0-T1	Fox 晶振	C5BA	40 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC5BACALI12.0-T1	Fox 晶振	C5BA	12 MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
FC5BACAGI12.0-T1	Fox 晶振	C5BA	12 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
