首页欧美晶振 FOX晶振美国FOX晶振|FC2BACBEI38.0-T3|6G光纤通道晶振

美国FOX晶振|FC2BACBEI38.0-T3|6G光纤通道晶振

频率：38MHz
尺寸：2.5×2.0mm
应　用： 美国FOX晶振,C2BA无源晶振,石英晶体谐振器,FC2BACBEI38.0-T3晶振,2520mm晶振,超小型晶振,频率38MHz,负载10pF,频率稳定性30ppm,工作温度-40~125°C,高品质晶振,耐热性晶振,6G光纤通道晶振,车载CCD相机晶振,工业应用晶振...

美国FOX晶振|FC2BACBEI38.0-T3|6G光纤通道晶振,美国FOX晶振,C2BA无源晶振,石英晶体谐振器,FC2BACBEI38.0-T3晶振,2520mm晶振,超小型晶振,频率38MHz,负载10pF,频率稳定性30ppm,工作温度-40~125°C,高品质晶振,耐热性晶振,6G光纤通道晶振,车载CCD相机晶振,工业应用晶振, 便携式电子设备晶振.

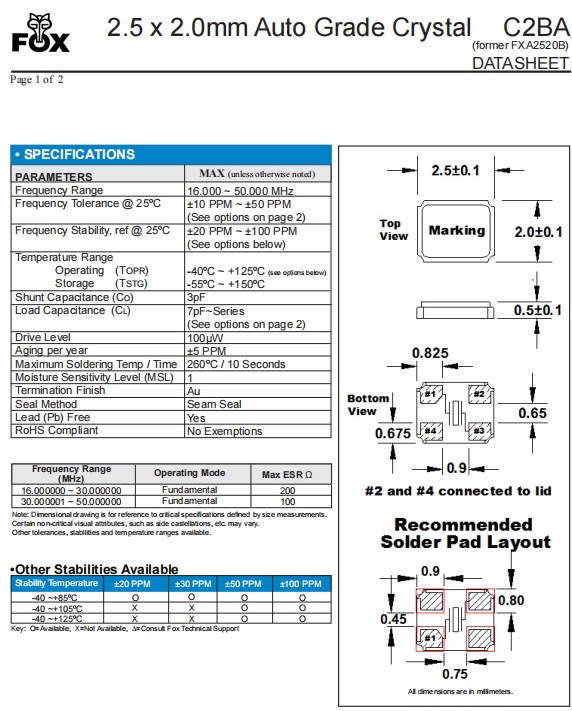

美国FOX晶振|FC2BACBEI38.0-T3|6G光纤通道晶振规格表

参数	数值
标准频率	38MHz
频率容差	30ppm
频率稳定性	50ppm
工作温度	−40~+125°C
储存温度	−55~+150°C
老化	±5ppm
负载	10pF
并联电容	3pF Max
激励功率	100 µW MAX
湿度敏感等级(MSL)	1
湿度敏感等级(MSL)	1
最大焊接温度/时间	260ºC / 10 Seconds
无铅	Yes
通过无铅认证	No Exemptions

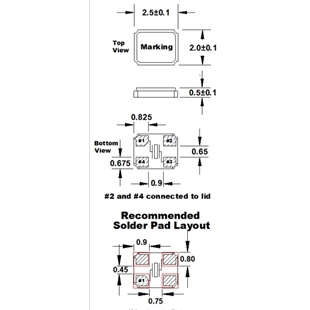

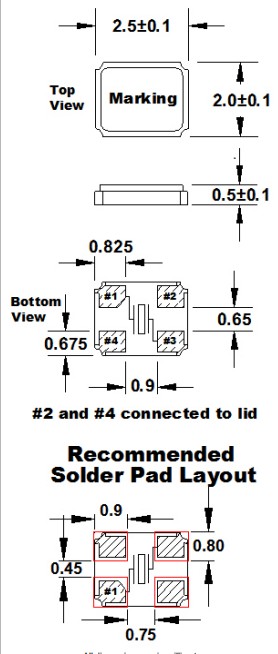

美国FOX晶振|FC2BACBEI38.0-T3|6G光纤通道晶振尺寸图

制造商零件编号	供应商	系列	频率	频率稳定性	频率容差	负载电容	工作温度
FC2BACBEI17.0-T3	Fox 晶振	C2BA	17 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI18.0-T3	Fox 晶振	C2BA	18 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI19.0-T3	Fox 晶振	C2BA	19 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI20.0-T3	Fox 晶振	C2BA	20 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI21.0-T3	Fox 晶振	C2BA	21 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI22.0-T3	Fox 晶振	C2BA	22 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI23.0-T3	Fox 晶振	C2BA	23 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI24.0-T3	Fox 晶振	C2BA	24 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI25.0-T3	Fox 晶振	C2BA	25 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI26.0-T3	Fox 晶振	C2BA	26 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI27.0-T3	Fox 晶振	C2BA	27 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI28.0-T3	Fox 晶振	C2BA	28 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI29.0-T3	Fox 晶振	C2BA	29 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI30.0-T3	Fox 晶振	C2BA	30 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI31.0-T3	Fox 晶振	C2BA	31 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI32.0-T3	Fox 晶振	C2BA	32 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI33.0-T3	Fox 晶振	C2BA	33 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI34.0-T3	Fox 晶振	C2BA	34 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI35.0-T3	Fox 晶振	C2BA	35 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI36.0-T3	Fox 晶振	C2BA	36 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI37.0-T3	Fox 晶振	C2BA	37 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI38.0-T3	Fox 晶振	C2BA	38 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI39.0-T3	Fox 晶振	C2BA	39 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC2BACBEI40.0-T3	Fox 晶振	C2BA	40 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
