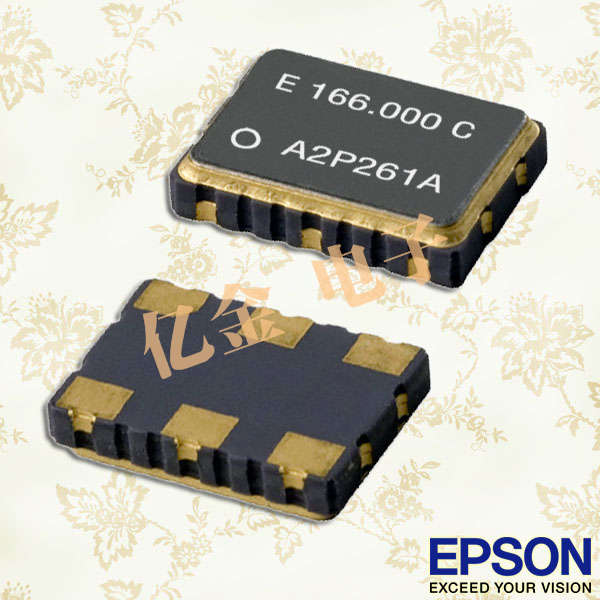

日本EPSON低功耗差分振荡器，SG5032EAN 400.000000M-KCBA3有源6G室外基站控制器晶振
- 频率：400M
- 尺寸：5032mm
- 应 用： 日本EPSON低功耗差分振荡器，SG5032EAN400.000000M-KCBA3有源6G室外基站控制器晶振，差分晶振,日本进口晶振,日本爱普生晶振公司，高频率差分晶振，低相控差分晶振，6G模块差分晶振，低电压石英晶振，蓝牙控制模块晶振...
-
-
日本EPSON低功耗差分振荡器，SG5032EAN 400.000000M-KCBA3有源6G室外基站控制器晶振，差分晶振,日本进口晶振,日本爱普生晶振公司，高频率差分晶振，低相控差分晶振，6G模块差分晶振，低电压石英晶振，蓝牙控制模块晶振，高品质晶振，SG5032EAN 400.000000M-KCBA3晶振，高频率晶振。
日本EPSON低功耗差分振荡器，SG5032EAN 400.000000M-KCBA3有源6G室外基站控制器晶振
| 参数 | 符号 | 规格说明 | 条件 | ||
| LV-PECL | LVDS | ||||
|
SG3225EAN / SG5032EAN / SG7050EAN |
SG3225VAN / SG5032VAN / SG7050VAN |
||||
| 输出频率范围 | 0 |
73.5MHz ~ 700 MHz
|
请联系我们以便获取其它可用频率的相关信息 | ||
| 电源电压 | VCC | K: 2.5V ~ 3.3V | VCC= 10% | ||
| 储存温度范围 | T_stg | -40 oC ~ +125 oC | 裸存 | ||
| 工作温度范围 | T_use | B: -20 oC ~ +70 oC, G: -40 oC ~ +85 oC | |||
| 功耗 | ICC | 65 mA Max. | 30 mA Max. | OE=Vcc, L_ECL=50 or L_LVDS=100 | |
| 输出禁用电流 | I_dis | 20 mA Max. | OE=GND | ||
| 占空比 | SYM | 45 % ~ 55 % | 在输出交叉点 | ||
| 输出电压(LV-PECL) | VOH | VCC-1.0 V ~ VCC-0.8 V | 一 | DC 特征 | |
| VOL | VCC-1.78 V ~ VCC-1.62 V | 一 | |||
| 输出电压(LVDS) | VOD | 一 | 250 mV ~ 450mV | VOD1 , VOD2 | DC 特征 |
| dVOD | 一 | 50 mV Max. | dVOD = VOD1-VOD2 | ||
| VOS | 一 | 1.15 V ~ 1.35 V | VOS1 , VOS2 | ||
| dVOS | 一 | 150 mV Max. | dVOS = VOS1-VOS2 | ||
|
输出负载条件 (ECL) / (LVDS) |
L_ECL | 50 | 一 | 终止于 VCC -2.0 V | |
| L_LVDS | 一 | 100 | 连接到 OUT 与 OUT 之间 | ||
| 输入电压 | VIH | 70 % VCC Min. | OE 终端 | ||
| VIL | 30 % VCC Max. | ||||
| 上升/下降时间 | tr / tf | 350 ps Max. | 300 ps Max. |
20% ~ 80% (VOH-VOL). 20% ~ 80% 微分输出 峰-峰值 |
|
| 振荡启动时间 | t_str |
3 ms Max.
|
在电源电压最低时，所需时间为 0 秒 | ||
| 相位抖动 |
PJ
|
0.6 ps Max.*1 | 抵消频率: 12 kHz ~ 20 MHz | ||
| 频率老化 | f_aging | 5 10-6 / year Max. | +25 oC, 第一年, VCC=2.5 V,3.3 V | ||
.jpg)
日本EPSON低功耗差分振荡器，SG5032EAN 400.000000M-KCBA3有源6G室外基站控制器晶振
| 爱普生原厂编码 | 生产商品牌 | 型号 | 类型 | 频率 | 输出类型 | 频率偏差度 |
| SG5032VAN 156.250000M-KJGA0 | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | ±50ppm |
| SG5032VAN 50.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 50 MHz | LVDS | ±30ppm |
| SG5032EAN 100.000000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 100 MHz | LVPECL | ±50ppm |
| SG5032EAN 106.250000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 106.25 MHz | LVPECL | ±50ppm |
| SG5032EAN 125.000000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 125 MHz | LVPECL | ±50ppm |
| SG5032EAN 150.000000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 150 MHz | LVPECL | ±50ppm |
| SG5032EAN 155.520000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 155.52 MHz | LVPECL | ±50ppm |
| SG5032EAN 156.250000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 156.25 MHz | LVPECL | ±50ppm |
| SG5032EAN 161.132800M-KEGA3 | EPSON | SG5032EAN | XO (Standard) | 161.1328 MHz | LVPECL | ±30ppm |
| SG5032EAN 161.132800M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 161.1328 MHz | LVPECL | ±50ppm |
| SG5032EAN 161.132813M-KEGA3 | EPSON | SG5032EAN | XO (Standard) | 161.132813 MHz | LVPECL | ±30ppm |
| SG5032EAN 174.703125M-KCBA3 | EPSON | SG5032EAN | XO (Standard) | 174.703125 MHz | LVPECL | ±20ppm |
| SG5032EAN 200.000000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 200 MHz | LVPECL | ±50ppm |
| SG5032EAN 212.500000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 212.5 MHz | LVPECL | ±50ppm |
| SG5032EAN 312.500000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 312.5 MHz | LVPECL | ±50ppm |
| SG5032EAN 400.000000M-KCBA3 | EPSON | SG5032EAN | XO (Standard) | 400 MHz | LVPECL | ±20ppm |
| SG5032EAN 75.000000M-KEGA3 | EPSON | SG5032EAN | XO (Standard) | 75 MHz | LVPECL | ±30ppm |
| SG5032EAN 75.000000M-KJGA3 | EPSON | SG5032EAN | XO (Standard) | 75 MHz | LVPECL | ±50ppm |
| SG5032VAN 100.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 100 MHz | LVDS | ±50ppm |
| SG5032VAN 106.250000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 106.25 MHz | LVDS | ±50ppm |
| SG5032VAN 125.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 125 MHz | LVDS | ±50ppm |
| SG5032VAN 133.333300M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 133.3333 MHz | LVDS | ±50ppm |
| SG5032VAN 148.500000M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 148.5 MHz | LVDS | ±30ppm |
| SG5032VAN 148.500000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 148.5 MHz | LVDS | ±50ppm |
| SG5032VAN 150.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 150 MHz | LVDS | ±50ppm |
| SG5032VAN 155.520000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 155.52 MHz | LVDS | ±50ppm |
| SG5032VAN 156.250000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | ±50ppm |
| SG5032VAN 200.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | ±50ppm |
| SG5032VAN 212.500000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 212.5 MHz | LVDS | ±50ppm |
| SG5032VAN 312.500000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 312.5 MHz | LVDS | ±50ppm |
| SG5032VAN 400.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 400 MHz | LVDS | ±50ppm |
| SG5032VAN 74.250000M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 74.25 MHz | LVDS | ±30ppm |
| SG5032VAN 74.250000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 74.25 MHz | LVDS | ±50ppm |
| SG5032VAN 75.000000M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 75 MHz | LVDS | ±30ppm |
| SG5032VAN 75.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 75 MHz | LVDS | ±50ppm |
| SG5032VAN 300.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 300 MHz | LVDS | ±50ppm |
| SG5032VAN 322.265625M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 322.265625 MHz | LVDS | ±30ppm |
| SG5032VAN 200.000000M-KCBA3 | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | ±20ppm |
| SG5032EAN 100.000000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 100 MHz | LVPECL | ±50ppm |
| SG5032EAN 106.250000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 106.25 MHz | LVPECL | ±50ppm |
| SG5032EAN 125.000000M-KCBAB | EPSON | SG5032EAN | XO (Standard) | 125 MHz | LVPECL | ±20ppm |
| SG5032EAN 125.000000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 125 MHz | LVPECL | ±50ppm |
| SG5032EAN 150.000000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 150 MHz | LVPECL | ±50ppm |
| SG5032EAN 155.520000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 155.52 MHz | LVPECL | ±50ppm |
| SG5032EAN 156.250000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 156.25 MHz | LVPECL | ±50ppm |
| SG5032EAN 161.132800M-KEGAB | EPSON | SG5032EAN | XO (Standard) | 161.1328 MHz | LVPECL | ±30ppm |
| SG5032EAN 161.132800M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 161.1328 MHz | LVPECL | ±50ppm |
| SG5032EAN 174.703125M-KCBAB | EPSON | SG5032EAN | XO (Standard) | 174.703125 MHz | LVPECL | ±20ppm |
| SG5032EAN 200.000000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 200 MHz | LVPECL | ±50ppm |
| SG5032EAN 212.500000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 212.5 MHz | LVPECL | ±50ppm |
| SG5032EAN 25.000000M-KJGBB | EPSON | SG5032EAN | XO (Standard) | 25 MHz | LVPECL | ±50ppm |
| SG5032EAN 312.500000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 312.5 MHz | LVPECL | ±50ppm |
| SG5032EAN 400.000000M-KCBAB | EPSON | SG5032EAN | XO (Standard) | 400 MHz | LVPECL | ±20ppm |
| SG5032EAN 75.000000M-KEGAB | EPSON | SG5032EAN | XO (Standard) | 75 MHz | LVPECL | ±30ppm |
| SG5032EAN 75.000000M-KJGAB | EPSON | SG5032EAN | XO (Standard) | 75 MHz | LVPECL | ±50ppm |
| SG5032VAN 100.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 100 MHz | LVDS | ±50ppm |
| SG5032VAN 106.250000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 106.25 MHz | LVDS | ±50ppm |
| SG5032VAN 125.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 125 MHz | LVDS | ±50ppm |
| SG5032VAN 133.333300M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 133.3333 MHz | LVDS | ±50ppm |
| SG5032VAN 148.500000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 148.5 MHz | LVDS | ±30ppm |
| SG5032VAN 148.500000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 148.5 MHz | LVDS | ±50ppm |
| SG5032VAN 150.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 150 MHz | LVDS | ±50ppm |
| SG5032VAN 155.520000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 155.52 MHz | LVDS | ±50ppm |
| SG5032VAN 156.244531M-KCBAB | EPSON | SG5032VAN | XO (Standard) | 156.244531 MHz | LVDS | ±20ppm |
| SG5032VAN 156.250000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | ±50ppm |
| SG5032VAN 200.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | ±30ppm |
| SG5032VAN 200.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | ±50ppm |
| SG5032VAN 212.500000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 212.5 MHz | LVDS | ±50ppm |
| SG5032VAN 300.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 300 MHz | LVDS | ±50ppm |
| SG5032VAN 312.500000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 312.5 MHz | LVDS | ±30ppm |
| SG5032VAN 312.500000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 312.5 MHz | LVDS | ±50ppm |
| SG5032VAN 400.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 400 MHz | LVDS | ±50ppm |
| SG5032VAN 50.000000M-KJGBB | EPSON | SG5032VAN | XO (Standard) | 50 MHz | LVDS | ±50ppm |
| SG5032VAN 74.250000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 74.25 MHz | LVDS | ±30ppm |
| SG5032VAN 74.250000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 74.25 MHz | LVDS | ±50ppm |
| SG5032VAN 75.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 75 MHz | LVDS | ±30ppm |
| SG5032VAN 75.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 75 MHz | LVDS | ±50ppm |
| SG5032VAN 78.125000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 78.125 MHz | LVDS | ±50ppm |
| SG5032VAN 156.250000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | ±30ppm |
| SG5032VAN 400.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 400 MHz | LVDS | ±30ppm |
| SG5032VAN 78.125000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 78.125 MHz | LVDS | ±30ppm |
| SG5032VAN 156.2500M-KJBAB | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | ±50ppm |
| SG5032VAN 200.000000M-KCBAB | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | ±20ppm |
| SG5032EAN 156.250000M-KEGAB | EPSON | SG5032EAN | XO (Standard) | 156.25 MHz | LVPECL | ±30ppm |
| SG5032VAN 125.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 125 MHz | LVDS | ±30ppm |
| SG5032EAN 106.250000M-KEGAB | EPSON | SG5032EAN | XO (Standard) | 106.25 MHz | LVPECL | ±30ppm |
| SG5032VAN 135.0000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 135 MHz | LVDS | ±30ppm |
| SG5032VAN 322.265625M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 322.265625 MHz | LVDS | ±30ppm |
| SG5032VAN 106.2500000M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 106.25 MHz | LVDS | ±30ppm |
| SG5032VAN 250.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 250 MHz | LVDS | ±30ppm |
| SG5032EAN 133.330000M-KJGA0 | EPSON | SG5032EAN | XO (Standard) | 133.33 MHz | LVPECL | ±50ppm |
| SG5032VAN 644.531250M-KJGA0 | EPSON | SG5032VAN | XO (Standard) | 644.53125 MHz | LVDS | ±50ppm |
| SG5032VAN 400.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 400 MHz | LVDS | ±30ppm |
| SG5032VAN 250.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 250 MHz | LVDS | ±30ppm |
| SG5032VAN 100.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 100 MHz | LVDS | ±30ppm |
| SG5032EAN 156.250000M-KJGA0 | EPSON | SG5032EAN | XO (Standard) | 156.25 MHz | LVPECL | ±50ppm |
| SG5032EAN 156.250000M-KEGA0 | EPSON | SG5032EAN | XO (Standard) | 156.25 MHz | LVPECL | ±30ppm |
| SG5032VAN 200.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | ±30ppm |
| SG5032VAN 322.265625M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 322.265625 MHz | LVDS | ±30ppm |
| SG5032VAN 125.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 125 MHz | LVDS | ±30ppm |
