首页欧美晶振 ECS晶振ECS-250-18-5P-F-TR,CSM-7谐振器,ECS蓝牙模块晶振

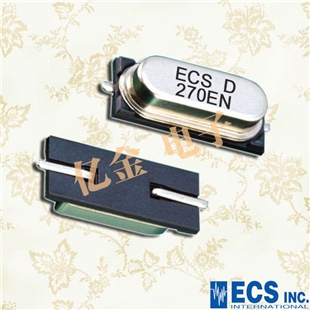

ECS-250-18-5P-F-TR,CSM-7谐振器,ECS蓝牙模块晶振

频率：26MHz
尺寸：11.35x4.8mm
应　用： ECS-250-18-5P-F-TR,CSM-7谐振器,ECS蓝牙模块晶振,两脚贴片晶振，ECS晶振，伊西斯晶振，美国进口晶振，型号：CSM-7系列晶振，编码为：ECS-250-18-5P-F-TR，频率：25MHz，负载电容：18pF，工作温度范围：-10℃至+70℃，...

ECS-250-18-5P-F-TR,CSM-7谐振器,ECS蓝牙模块晶振,两脚贴片晶振，ECS晶振，伊西斯晶振，美国进口晶振，型号：CSM-7系列晶振，编码为：ECS-250-18-5P-F-TR，频率：25MHz，负载电容：18pF，工作温度范围：-10℃至+70℃，频率稳定性：±50ppm，频率公差：±30ppm，小体积尺寸：11.35x4.8x3.2mm封装，两脚贴片晶振，石英晶体谐振器，石英晶振，无源晶振CSM-7是SMD版本的HC-49美国铅晶体的绝佳选择，CSM-7在电阻焊金属封装中的最大高度为4.3mm。同时还提供了最大尺寸为3.2mm的包装外形。应用于：移动通讯设备，无线蓝牙网络，物联网，医疗设备，数码电子等。

ECS-250-18-5P-F-TR,CSM-7谐振器,ECS蓝牙模块晶振,两脚贴片晶振,规格表

品牌	ECS伊西斯晶振
型号	CSM-7
物料编码	ECS-250-18-5P-F-TR
频率	25MHz
频率稳定性	±50ppm
频率容差	±30ppm
负载电容	18pF
工作温度	-10℃至+70℃
尺寸	11.35x4.8x3.2mm

ECS-250-18-5P-F-TR,CSM-7谐振器,ECS蓝牙模块晶振,两脚贴片晶振,尺寸图

原厂编码	品牌	型号	频率	包装/封装
ECS-73-20-5PDN-TR	ECS晶振	CSM-7	7.3728MHz	HC49/US
ECS-35-17-5PDN-TR	ECS晶振	CSM-7	3.579545MHz	HC49/US
ECS-200-20-5PDN-TR	ECS晶振	CSM-7	20MHz	HC49/US
ECS-143-20-5PDN-TR	ECS晶振	CSM-7	14.31818MHz	HC49/US
ECS-60-32-5PDN-TR	ECS晶振	CSM-7	6MHz	HC49/US
ECS-203.563-CDX-0375	ECS晶振	CSM-7	20.3563MHz	HC49/US
ECS-135.600-CD-0374	ECS晶振	CSM-7	13.56MHz	HC49/US
ECS-071.505-CDX-0370	ECS晶振	CSM-7	7.1505MHz	HC49/US
ECS-135.600-CDX-0374	ECS晶振	CSM-7	13.56MHz	HC49/US
ECS-48.97-CDX-0065-TR	ECS晶振	CSM-7	4.897MHz	HC49/US
ECS-235.122-CDX-0378	ECS晶振	CSM-7	23.5122MHz	HC49/US
ECS-98.3-S-5P-TR	ECS晶振	CSM-7	9.8304MHz	HC49/US
ECS-196.6-S-5P-TR	ECS晶振	CSM-7	19.6608MHz	HC49/US
ECS-122.8-S-5P-TR	ECS晶振	CSM-7	12.288MHz	HC49/US
ECS-184-S-5P-TR	ECS晶振	CSM-7	18.432MHz	HC49/US
ECS-143-S-5P-TR	ECS晶振	CSM-7	14.31818MHz	HC49/US
ECS-143-20-5P-TR	ECS晶振	CSM-7	14.31818MHz	HC49/US
ECS-240-16-5P-TR	ECS晶振	CSM-7	24MHz	HC49/US
ECS-250-18-5P-F-TR	ECS晶振	CSM-7	25MHz	HC49/US
ECS-40.3-20-5P-TR	ECS晶振	CSM-7	4.032MHz	HC49/US
ECS-42-16-5P-TR	ECS晶振	CSM-7	4.194304MHz	HC49/US
ECS-110-S-5P-TR	ECS晶振	CSM-7	11MHz	HC49/US
ECS-35-S-5P-TR	ECS晶振	CSM-7	3.579545MHz	HC49/US
ECS-41-20-5P-TR	ECS晶振	CSM-7	4.09625MHz	HC49/US
ECS-120-32-5P-TR	欧美晶振	CSM-7	12MHz	HC49/US
ECS-160-S-5P-TR	ECS晶振	CSM-7	16MHz	HC49/US
ECS-80-S-5P-TR	ECS晶振	CSM-7	8MHz	HC49/US
ECS-196-20-5PDN-TR	ECS晶振	CSM-7	19.6608MHz	HC49/US
ECS-098.438-CDX-0371	ECS晶振	CSM-7	9.8438MHz	HC49/US
ECS-282.594-CDX-0385	ECS晶振	CSM-7	28.2594MHz	HC49/US
ECS-071.505-CD-0370	ECS晶振	CSM-7	7.1505MHz	HC49/US
ECS-271.344-CDX-0383	ECS晶振	CSM-7	27.1344MHz	HC49/US
ECS-252.235-CDX-0379	ECS晶振	CSM-7	25.2235MHz	HC49/US
ECS-235.122-CD-0378	ECS晶振	CSM-7	23.5122MHz	HC49/US
ECS-232.643-CD-0377	ECS晶振	CSM-7	23.2643MHz	HC49/US
ECS-285.938-CD-0386	ECS晶振	CSM-7	28.5938MHz	HC49/US
ECS-67.458-CDX-0068-TR	ECS晶振	CSM-7	6.7458MHz	HC49/US
ECS-120.003-18-5PTR	ECS晶振	CSM-7	12.000393MHz	HC49/US
ECS-59.9-20-5P-TR	ECS晶振	CSM-7	5.9904MHz	HC49/US
ECS-50-S-5P-TR	ECS晶振	CSM-7	5MHz	HC49/US
ECS-130.625-CDX-0373	ECS晶振	CSM-7	13.0625MHz	HC49/US
ECS-203.563-CD-0375TR	ECS晶振	CSM-7	20.3563MHz	HC49/US
ECS-203.563-CD-0375	ECS晶振	CSM-7	20.3563MHz	HC49/US
ECS-252.235-CD-0379	ECS晶振	CSM-7	25.2235MHz	HC49/US
ECS-130.625-CD-0373	ECS晶振	CSM-7	13.0625MHz	HC49/US
ECS-098.438-CD-0371	ECS晶振	CSM-7	9.8438MHz	HC49/US
ECS-232.643-CDX-0377	ECS晶振	CSM-7	23.2643MHz	HC49/US
ECS-274.688-CD-0384	ECS晶振	CSM-7	27.4688MHz	HC49/US
ECS-265.971-CD-0382	ECS晶振	CSM-7	26.5971MHz	HC49/US
ECS-64.983-CDX-0067-TR	ECS晶振	CSM-7	6.4983MHz	HC49/US
ECS-264.513-CDX-0381	ECS晶振	CSM-7	26.4513MHz	HC49/US
ECS-49-20-5P-DN-TR	ECS晶振	CSM-7	4.915MHz	HC49/US
