E1WCDB06-32.768K晶振  参数表

日蚀晶振规格	单位	日蚀晶振频率范围	石英晶振基本条件
标准频率	f_nom	32.768KHZ	标准频率
储存温度	T_stg	-40°C ～ +125°C	裸存
工作温度	T_use	-20°C ～ +70°C	标准温度
激励功率	DL	200μW Max.	推荐:1μW ～ 100μW
频率公差	f_— l	±20 × 10-6 (标准), (±10 × 10-6 ～ ±30 × 10-6 可用)	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,0755-27876565
频率温度特征	f_tem	±20 × 10-6/-40°C ～ +85°C	超出标准的规格请联系我们.
负载电容	CL	10PF	超出标准说明,请联系我们.
串联电阻(ESR)	R1	100μW	-40°C —  +85°C, DL = 100μW
频率老化	f_age	±3 × 10-6 / year Max.	+25°C,第一年

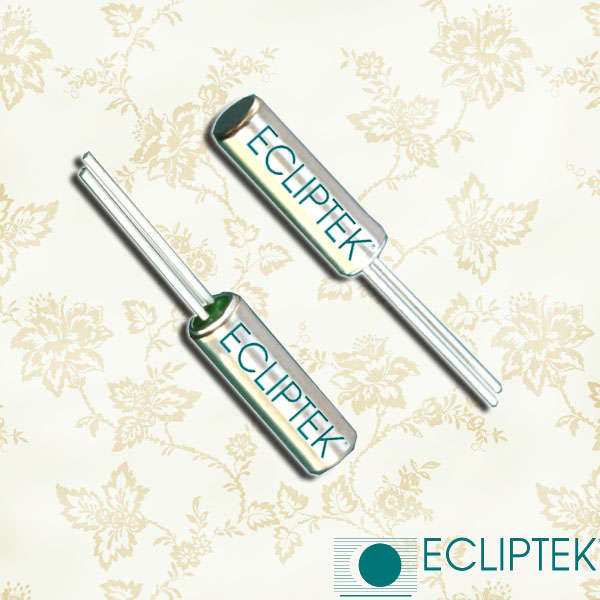

日蚀晶振E1WC,E1WCDB06-32.768K石英插件晶振   尺寸图


日蚀晶振集团环保基本理念：
        1.作为良好的企业市民,遵循本公司的行动方针,充分关心维护地球环境.遵守国内外的有关环保法规.
        2.保护自然环境,充分关注自然生态等方面的环境保护,维持和保全生物多样性.
        3.有效利用资源和能源,认识到资源和能源的有限性,努力进行有效利用.日蚀晶振E1WC,E1WCDB06-32.768K石英插件晶振
        4为构建循环型社会做出贡献,致力于减少石英晶体,贴片晶振,有源晶体振荡器材料的废弃物及废弃物的再利用核再生循环,努力构建循环型社会.
        5.推进环保型业务,充分发挥综合实力,推进环保型业务,为减轻社会的环境负荷做出贡献.
        6.建立环境管理系统,充分运用环境管理系统,设定环境目的和目标,定期修正,不断改善,努力预防环境污染.
        日蚀晶振集团将建立可行的技术及经济性环境目标,并确保其环境保护活动的质量.
        集团公司将关注所有环境适用的法律、法规和协议的遵守情况.另外为更有效的进行环境保护,将建立自己的特有的环境标准.
        集团将在各领域内的商务运作中实施持续改进,包括能源资源的保持,回收再利用以及减少废弃物等.

Part Number	Cut/Mode	Package Description	Frequency Stability	Operating Temperature Range	Aging
E1WCDA06-32.768K	Fundamental	Watch Crystal 2.0mm x 6.0mm	±20ppm	-10°C to +60°C	±3ppm
E1WCDA12-32.768K	Fundamental	Watch Crystal 2.0mm x 6.0mm	±20ppm	-10°C to +60°C	±3ppm
E1WCDB06-32.768K	Fundamental	Watch Crystal 2.0mm x 6.0mm	±20ppm	-20°C to +70°C	±3ppm
E1WCDB12-32.768K	Fundamental	Watch Crystal 2.0mm x 6.0mm	±20ppm	-20°C to +70°C	±3ppm
E1WSDA06-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 3.7mm x 7.9mm	±20ppm	-40°C to +85°C	±3ppm
E1WSDA12-32.768K	Fundamental	SMD Watch Crystal 3.7mm x 7.9mm	±20ppm	-40°C to +85°C	±3ppm
E3WSDC12-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 1.2mm x 2.0mm	±20ppm	-40°C to +85°C	±3ppm
E4WSDC09-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 1.0mm x 1.6mm	±20ppm	-40°C to +85°C	±3ppm
E4WSDC12-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 1.0mm x 1.6mm	±20ppm	-40°C to +85°C	±3ppm
E8WSBC12-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 1.5mm x 3.2mm	±10ppm	-40°C to +85°C	±3ppm
E8WSDC07-32.768K	Tuning Fork Fundamental	SMD晶振 Watch Crystal 1.5mm x 3.2mm	±20ppm	-40°C to +85°C	±3ppm
E8WSDC09-32.768K	Fundamental	SMD Watch Crystal 1.5mm x 3.2mm	±20ppm	-40°C to +85°C	±3ppm
E8WSDC12-32.768K	Fundamental	SMD Watch Crystal 1.5mm x 3.2mm	±20ppm	-40°C to +85°C	±3ppm
Part Number	Cut/Mode		Frequency Stability	Operating Temperature Range	Aging
EUAA18-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAA18-6.000M-L	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAA20-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAA25-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAAS-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAAS-6.000M-L	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUBA20-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-20°C to +70°C	±5ppm
EUBA25-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-20°C to +70°C	±5ppm
EUBAS-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-20°C to +70°C	±5ppm
EUCA18-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-40°C to +85°C	±5ppm
EUCA25-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-40°C to +85°C	±5ppm
