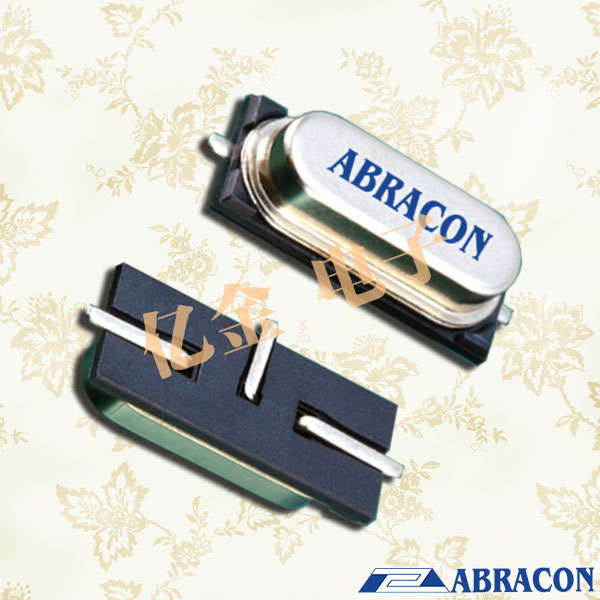

首页欧美晶振 Abracon晶振ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃

ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃

频率：3.6864
尺寸：
应　用： ABLS-3.6864MHZ-L4Q-T3.6864MHz100PPM18PF-55~125℃，欧美艾伯康晶振公司,适用于RoHS回流，提供紧密的稳定性和扩展的温度范围,计算机，调制解调器，微处理器，无线应用程序ABLS-3.6864MHZ-L4Q-T3.6864MHz100PPM18PF-5...

ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃，欧美艾伯康晶振公司,适用于RoHS回流，提供紧密的稳定性和扩展的温度范围,计算机，调制解调器，微处理器，无线应用程序

ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃

参数

最小值

典型的

最大值

单位

备注

频率

3.579545

-----

75*

MHz

Contact Abracon for
available F< 11MHz

工作模式

Fundamental

-----

10MHz - 54MHz

AT cut (Fundamental or 3rd OT) or BT cut (See options)

3.579545MHz - 24.0MHz (Fundamental: Standard)

24.01MHz - 75.00MHz (3rd- Overtone: Standard)

24.01MHz - 50.00MHz (Fund. AT or BT: See options)

-----

64.000 MHz - 125.000 MHz
Please contact Abracon for
available frequencies

工作温度

-----

+70

ºC

See options

储存温度

--55

-----

+ 125

ºC

频率公差@+25°C

--50

-----

+50

ppm

See options

频率在工作温度下的稳定性(参考+25°C)

--50

-----

+50

ppm

See options

等效串联电阻（R1）

See table 1 below

分流电容（C0）

-----

7.0

负载电容（CL）

-----

18.0

-----

Standard (See options if
other than STD)

驱动电平

1.0

-----

100

µW

老化

--3

-----

ppm

@25°C±3°C
First year

绝缘电阻

500

-----

@ 100Vdc ± 15V

ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃

ABLS

ABRACON编号	制造商	型号	频率	频率稳定性	负载电容
ABLS-12.000MHZ-20-B-3-H-T	Abracon晶振	ABLS	12 MHz	±35ppm	20pF
ABLS-20.000MHZ-B-4-Y-T	Abracon晶振	ABLS	20 MHz	±30ppm	18pF
ABLS-20.000MHZ-20-B-3-H-T	Abracon晶振	ABLS	20 MHz	±35ppm	20pF
ABLS-3.579545MHZ-D-3-Y-T	Abracon晶振	ABLS	3.579545 MHz	±30ppm	18pF
ABLS-3.6864MHZ-20-B-3-H-T	Abracon晶振	ABLS	3.6864 MHz	±35ppm	20pF
ABLS-14.7456MHZ-20-B-4-Y-T	Abracon晶振	ABLS	14.7456 MHz	±30ppm	20pF
ABLS-25.000MHZ-B4-F-T	Abracon晶振	ABLS	25 MHz	±50ppm	18pF
ABLS-8.000MHZ-B4-T	Abracon晶振	ABLS	8 MHz	±50ppm	18pF
ABLS-4.000MHZ-B4-T	Abracon晶振	ABLS	4 MHz	±50ppm	18pF
ABLS-16.000MHZ-B4-T	Abracon晶振	ABLS	16 MHz	±50ppm	18pF
ABLS-12.000MHZ-B4-T	Abracon晶振	ABLS	12 MHz	±50ppm	18pF
ABLS-3.6864MHZ-B4-T	Abracon晶振	ABLS	3.6864 MHz	±50ppm	18pF
ABLS-10.000MHZ-B4-T	Abracon晶振	ABLS	10 MHz	±50ppm	18pF
ABLS-3.579545MHZ-B4-T	Abracon晶振	ABLS	3.579545 MHz	±50ppm	18pF
ABLS-4.9152MHZ-B4-T	Abracon晶振	ABLS	4.9152 MHz	±50ppm	18pF
ABLS-6.000MHZ-B4-T	Abracon晶振	ABLS	6 MHz	±50ppm	18pF
ABLS-24.000MHZ-B4-T	Abracon晶振	ABLS	24 MHz	±50ppm	18pF
ABLS-7.3728MHZ-B4-T	Abracon晶振	ABLS	7.3728 MHz	±50ppm	18pF
ABLS-16.384MHZ-B4-T	Abracon晶振	ABLS	16.384 MHz	±50ppm	18pF
ABLS-14.7456MHZ-B4-T	Abracon晶振	ABLS	14.7456 MHz	±50ppm	18pF
ABLS-5.000MHZ-B4-T	Abracon晶振	ABLS	5 MHz	±50ppm	18pF
ABLS-11.0592MHZ-B4-T	Abracon晶振	ABLS	11.0592 MHz	±50ppm	18pF
ABLS-28.63636MHZ-B4-F-T	Abracon晶振	ABLS	28.63636 MHz	±50ppm	18pF
ABLS-20.000MHZ-B4-T	Abracon晶振	ABLS	20 MHz	±50ppm	18pF
ABLS-4.194304MHZ-B4-T	Abracon晶振	ABLS	4.194304 MHz	±50ppm	18pF
ABLS-18.432MHZ-B-4-Y-T	Abracon晶振	ABLS	18.432 MHz	±30ppm	18pF
ABLS-11.0592MHZ-20-B-4-H-T	Abracon晶振	ABLS	11.0592 MHz	±35ppm	20pF
ABLS-8.000MHZ-20-B-3-H-T	Abracon晶振	ABLS	8 MHz	±35ppm	20pF
ABLS-18.432MHZ-20-B-3-H-T	Abracon晶振	ABLS	18.432 MHz	±35ppm	20pF
ABLS-7.3728MHZ-20-B-3-H-T	Abracon晶振	ABLS	7.3728 MHz	±35ppm	20pF
ABLS-7.3728MHZ-B2-T	Abracon晶振	ABLS	7.3728 MHz	±50ppm	18pF
ABLS-20.000MHZ-B2-T	Abracon晶振	ABLS	20 MHz	±50ppm	18pF
ABLS-4.000MHZ-B2-T	Abracon晶振	ABLS	4 MHz	±50ppm	18pF
ABLS-10.000MHZ-B2-T	Abracon晶振	ABLS	10 MHz	±50ppm	18pF
ABLS-4.9152MHZ-B2-T	Abracon晶振	ABLS	4.9152 MHz	±50ppm	18pF
ABLS-12.000MHZ-B2-T	Abracon晶振	ABLS	12 MHz	±50ppm	18pF
ABLS-8.000MHZ-B2-T	Abracon晶振	ABLS	8 MHz	±50ppm	18pF
ABLS-8.192MHZ-B2-T	Abracon晶振	ABLS	8.192 MHz	±50ppm	18pF
ABLS-18.432MHZ-B2-T	Abracon晶振	ABLS	18.432 MHz	±50ppm	18pF
ABLS-16.000MHZ-B2-T	Abracon晶振	ABLS	16 MHz	±50ppm	18pF
ABLS-25.000MHZ-B2F-T	Abracon晶振	ABLS	25 MHz	±50ppm	18pF
ABLS-3.6864MHZ-B2-T	Abracon晶振	ABLS	3.6864 MHz	±50ppm	18pF
ABLS-14.7456MHZ-B2-T	Abracon晶振	ABLS	14.7456 MHz	±50ppm	18pF
ABLS-12.288MHZ-B2-T	Abracon晶振	ABLS	12.288 MHz	±50ppm	18pF
ABLS-11.0592MHZ-B2-T	Abracon晶振	ABLS	11.0592 MHz	±50ppm	18pF
ABLS-5.000MHZ-B2-T	Abracon晶振	ABLS	5 MHz	±50ppm	18pF
ABLS-27.000MHZ-B2F-T	Abracon晶振	ABLS	27 MHz	±50ppm	18pF
ABLS-19.6608MHZ-B2-T	Abracon晶振	ABLS	19.6608 MHz	±50ppm	18pF
ABLS-22.1184MHZ-B2-T	Abracon晶振	ABLS	22.1184 MHz	±50ppm	18pF
ABLS-18.432MHZ-B4-T	Abracon晶振	ABLS	18.432 MHz	±50ppm	18pF
ABLS-6.144MHZ-B4-T	Abracon晶振	ABLS	6.144 MHz	±50ppm	18pF
ABLS-24.576MHZ-B4-F-T	Abracon晶振	ABLS	24.576 MHz	±50ppm	18pF
ABLS-13.000MHZ-B4-T	Abracon晶振	ABLS	13 MHz	±50ppm	18pF
ABLS-12.288MHZ-B4-T	Abracon晶振	ABLS	12.288 MHz	±50ppm	18pF
ABLS-24.000MHZ-D-R60-1-W-T	Abracon晶振	ABLS	24 MHz	±25ppm	18pF
ABLS-8.000MHZ-K4T	Abracon晶振	ABLS	8 MHz	±50ppm	18pF
ABLS-10.000MHZ-K4T	Abracon晶振	ABLS	10 MHz	±50ppm	18pF
ABLS-13.52127MHZ-10-J-4Q-T	Abracon晶振	ABLS	13.52127 MHz	±100ppm	10pF
ABLS-16.000MHZ-K4T	Abracon晶振	ABLS	16 MHz	±50ppm	18pF
